Suzuki DF 90A Parts Listings - 2014
S/N 09003F-410001 to 09003F-41XXXX

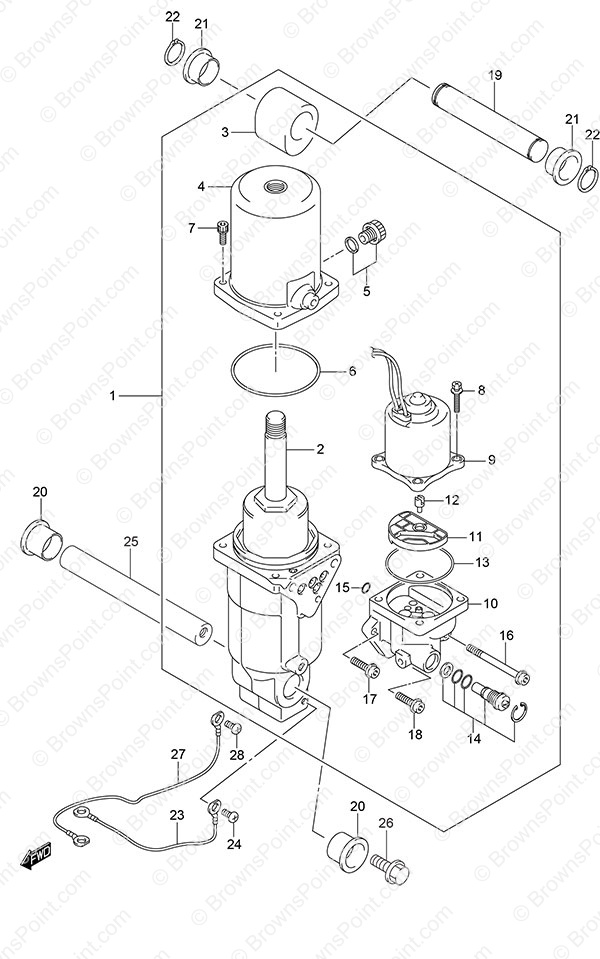

Fig. 33 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-87L07 Power w/Tilt & Trim Assembly
SKU: 48000-87L07 Weight: 10.000000 Brand: Price: $ 1,926.43 |
Power w/Tilt & Trim Assembly | 1 | $ 1,926.43 | ||
| 2 | 48400-87L02 Manifold Assembly
SKU: 48400-87L02 Weight: 5.000000 Brand: Price: $ 695.27 |
Manifold Assembly | 1 | $ 695.27 | ||
| 3 | 48611-87L00 Metal Joint
SKU: 48611-87L00 Weight: 0.200000 Brand: Price: $ 214.70 |
Metal Joint | 1 | $ 214.70 | ||
| 4 | 48571-87L01 Reservoir Tank
SKU: 48571-87L01 Weight: 0.820000 Brand: Price: $ 203.00 |
Reservoir Tank | 1 | $ 203.00 | ||
| 5 | 48572-87L00 Plug
SKU: 48572-87L00 Weight: 0.200000 Brand: Price: $ 21.60 |
Plug | 1 | $ 21.60 | ||
| 6 | 48557-90J00 O-Ring
SKU: 48557-90J00 Weight: 0.060000 Brand: Price: $ 22.40 |
O-Ring | 1 | $ 22.40 | ||
| 7 | 48862-87J20 Reservoir Tank Bolt
SKU: 48862-87J20 Weight: 0.060000 Brand: Price: $ 15.52 |
Reservoir Tank Bolt | 4 | $ 15.52 | ||
| 8 | 31281-92J10 Through Bolt
SKU: 31281-92J10 Weight: 0.060000 Brand: Price: $ 11.61 |
Through Bolt | 4 | $ 11.61 | ||
| 9 | 38100-87L04 PTT Motor Assembly
SKU: 38100-87L04 Weight: 0.000000 Brand: Price: $ 486.66 |
PTT Motor Assembly | 1 | $ 486.66 | ||
| 10 | 48502-87L02 Pump Assembly
SKU: 48502-87L02 Weight: 1.000000 Brand: Price: $ 1,159.87 |
Pump Assembly | 1 | $ 1,159.87 | ||
| 11 | 48582-95E01 Filter
SKU: 48582-95E01 Weight: 0.060000 Brand: Price: $ 38.93 |
Filter | 1 | $ 38.93 | ||
| 12 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 13 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 14 | 48864-96J10 Manual Valve Set
SKU: 48864-96J10 Weight: 0.250000 Brand: Price: $ 135.25 |
Manual Valve Set | 1 | $ 135.25 | ||
| 15 | 48588-90J00 O-Ring Set
SKU: 48588-90J00 Weight: 0.060000 Brand: Price: $ 12.75 |
O-Ring Set | 1 | $ 12.75 | ||
| 16 | 48862-92J20 Pump Bolt No. 1
SKU: 48862-92J20 Weight: 0.100000 Brand: Price: $ 15.52 |
Pump Bolt No. 1 | 1 | $ 15.52 | ||
| 17 | 48862-92J30 Pump Bolt No. 2
SKU: 48862-92J30 Weight: 0.060000 Brand: Price: $ 12.11 |
Pump Bolt No. 2 | 1 | $ 12.11 | ||
| 18 | 48862-90J21 Bolt
SKU: 48862-90J21 Weight: 0.060000 Brand: Price: $ 15.51 |
Bolt | 1 | $ 15.51 | ||
| 19 | 48321-90J00 Tilt Cylinder Upper Shaft
SKU: 48321-90J00 Weight: 0.800000 Brand: Price: $ 52.15 |
Tilt Cylinder Upper Shaft | 1 | $ 52.15 | ||
| 20 | 48326-95E00 Tilt Cylinder Lower Bushing
SKU: 48326-95E00 Weight: 0.060000 Brand: Price: $ 5.18 |
Tilt Cylinder Lower Bushing | 2 | $ 5.18 | ||
| 21 | 48325-87L00 Tilt Cylinder Bushing
SKU: 48325-87L00 Weight: 0.200000 Brand: Price: $ 3.81 |
Tilt Cylinder Bushing | 2 | $ 3.81 | Upper | |
| 22 | 09380-22015 Circlip
SKU: 09380-22015 Weight: 0.060000 Brand: Price: $ 3.96 |
Circlip | 2 | $ 3.96 | ||
| 23 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | PTT to Anode | |
| 24 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 25 | 48121-90J00 Tilt Cylinder Lower Shaft
SKU: 48121-90J00 Weight: 0.950000 Brand: Price: $ 81.27 |
Tilt Cylinder Lower Shaft | 1 | $ 81.27 | ||
| 26 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 1 | $ 11.01 | ||
| 27 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | PTT to Anode | |
| 28 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
