Suzuki DF 90A Parts Listings - 2014
S/N 09003F-410001 to 09003F-41XXXX

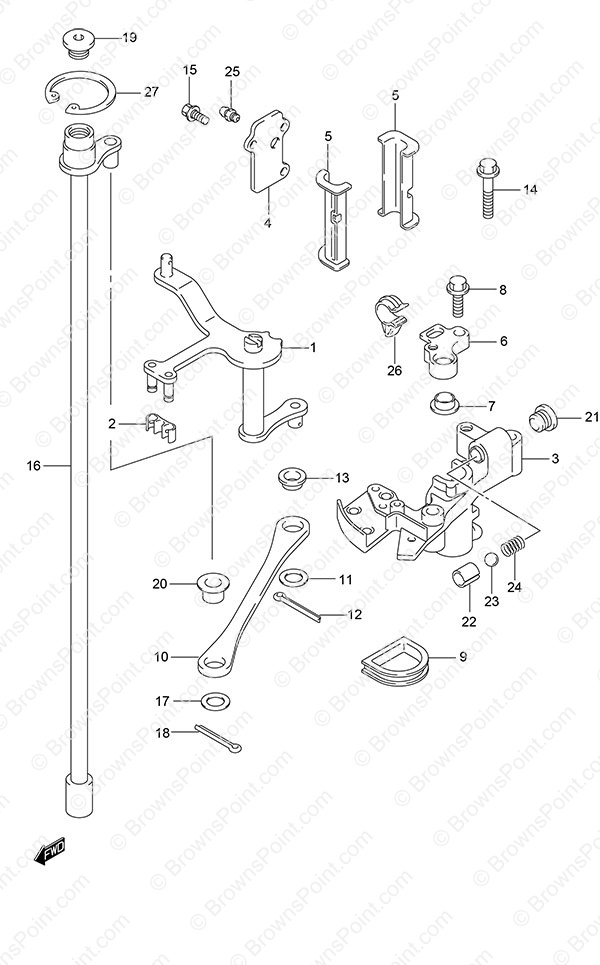

Fig. 20 - Clutch Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21110-87L00 Clutch Lever
SKU: 21110-87L00 Weight: 0.500000 Brand: Price: $ 129.65 |
Clutch Lever | 1 | $ 129.65 | ||
| 2 | 21131-93J00 Clutch Lever Bushing
SKU: 21131-93J00 Weight: 0.060000 Brand: Price: $ 1.77 |
Clutch Lever Bushing | 1 | $ 1.77 | ||
| 3 | 21151-87L00 Clutch Lever Holder
SKU: 21151-87L00 Weight: 0.500000 Brand: Price: $ 61.95 |
Clutch Lever Holder | 1 | $ 61.95 | ||
| 4 | 21152-87L00 Clutch Holder Plate (NLA)
SKU: 21152-87L00 Weight: 0.500000 Brand: Price: $ 8.63 |
Clutch Holder Plate (NLA) | 1 | $ 8.63 | ||
| 5 | 21153-87L00 Clutch Lever Bushing
SKU: 21153-87L00 Weight: 0.200000 Brand: Price: $ 3.83 |
Clutch Lever Bushing | 2 | $ 3.83 | ||
| 6 | 21155-87L00 Shift Sensor Holder (NLA)
SKU: 21155-87L00 Weight: 0.200000 Brand: Price: $ 17.88 |
Shift Sensor Holder (NLA) | 1 | $ 17.88 | ||
| 7 | 09306-10022 Bushing
SKU: 09306-10022 Weight: 0.100000 Brand: Price: $ 2.13 |
Bushing | 1 | $ 2.13 | ||
| 8 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 9 | 21157-87L00 Clutch Holder Seal (NLA)
SKU: 21157-87L00 Weight: 0.200000 Brand: Price: $ 2.80 |
Clutch Holder Seal (NLA) | 1 | $ 2.80 | ||
| 10 | 23115-87L00 Clutch Lever Link (NLA)
SKU: 23115-87L00 Weight: 0.250000 Brand: Price: $ 12.60 |
Clutch Lever Link (NLA) | 1 | $ 12.60 | ||
| 11 | 09160-09019 Washer (9.2x16x1)
SKU: 09160-09019 Weight: 0.100000 Brand: Price: $ 5.27 |
Washer (9.2x16x1) | 1 | $ 5.27 | ||
| 12 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.44 |
Cotter Pin | 1 | $ 1.44 | ||
| 13 | 09307-09002 Bushing
SKU: 09307-09002 Weight: 0.100000 Brand: Price: $ 4.86 |
Bushing | 1 | $ 4.86 | ||
| 14 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.88 |
BOLT | 2 | $ 2.88 | ||
| 15 | 09116-05010 Bolt (5x12)
SKU: 09116-05010 Weight: 0.060000 Brand: Price: $ 2.21 |
Bolt (5x12) | 3 | $ 2.21 | ||
| 16 | 21210-87L01 Clutch Shaft
SKU: 21210-87L01 Weight: 1.000000 Brand: Price: $ 113.87 |
Clutch Shaft | 1 | $ 113.87 | ||
| 17 | 09160-09019 Washer (9.2x16x1)
SKU: 09160-09019 Weight: 0.100000 Brand: Price: $ 5.27 |
Washer (9.2x16x1) | 1 | $ 5.27 | ||
| 18 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.44 |
Cotter Pin | 1 | $ 1.44 | ||
| 19 | 09248-12011 Plug (12x9)
SKU: 09248-12011 Weight: 0.250000 Brand: Price: $ 5.13 |
Plug (12x9) | 1 | $ 5.13 | ||
| 20 | 09307-09002 Bushing
SKU: 09307-09002 Weight: 0.100000 Brand: Price: $ 4.86 |
Bushing | 1 | $ 4.86 | ||
| 21 | 11118-95J00 Notch Spring Plug
SKU: 11118-95J00 Weight: 0.100000 Brand: Price: $ 7.30 |
Notch Spring Plug | 1 | $ 7.30 | ||
| 22 | 09205-10008 Spring Pin (10.2x13)
SKU: 09205-10008 Weight: 0.100000 Brand: Price: $ 4.53 |
Spring Pin (10.2x13) | 1 | $ 4.53 | ||
| 23 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.92 |
Ball | 1 | $ 1.92 | ||
| 24 | 09440-07071 Spring
SKU: 09440-07071 Weight: 0.060000 Brand: Price: $ 5.82 |
Spring | 1 | $ 5.82 | ||
| 25 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.48 |
Grease Nipple | 1 | $ 3.48 | ||
| 26 | 09403-11320 Clamp
SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.65 |
Clamp | 1 | $ 2.65 | ||
| 27 | 08331-41359 Circlip
SKU: 08331-41359 Weight: 0.060000 Brand: Price: $ 2.38 |
Circlip | 1 | $ 2.38 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
