Suzuki DF 90A Parts Listings - 2014
S/N 09003F-410001 to 09003F-41XXXX

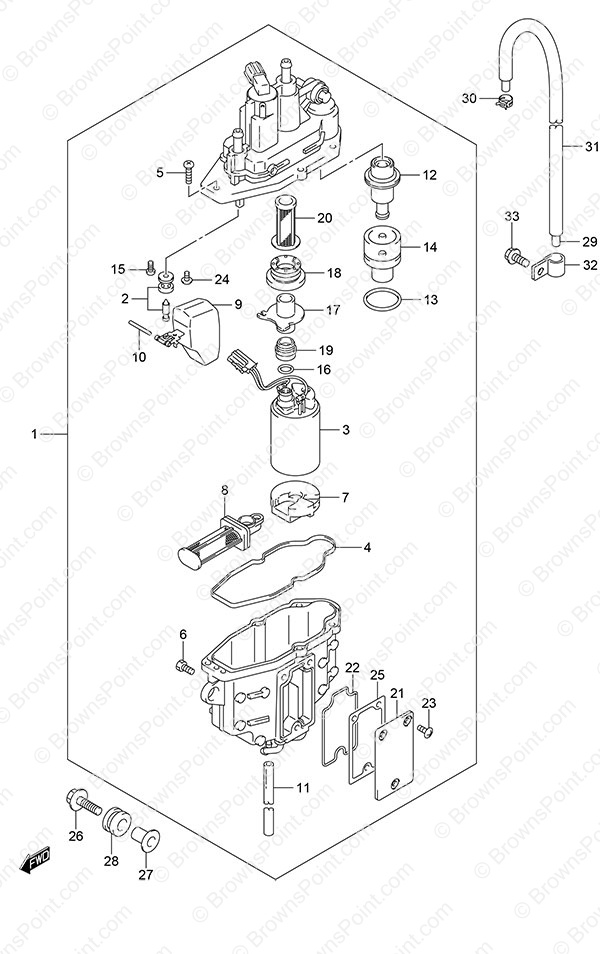

Fig. 12 - Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15600-92J50 Fuel Vapor Separator Assembly
SKU: 15600-92J50 Weight: 5.000000 Brand: Price: $ 806.32 |
Fuel Vapor Separator Assembly | 1 | $ 806.32 | ||
| 2 | 13370-88L10 Needle Valve Assembly
SKU: 13370-88L10 Weight: 0.060000 Brand: Price: $ 45.33 |
Needle Valve Assembly | 1 | $ 45.33 | ||
| 3 | 15200-92J20 Fuel Pump Assembly
SKU: 15200-92J20 Weight: 0.500000 Brand: Price: $ 355.71 |
Fuel Pump Assembly | 1 | $ 355.71 | ||
| 4 | 15626-92J01 VST Seal
SKU: 15626-92J01 Weight: 0.060000 Brand: Price: $ 15.29 |
VST Seal | 1 | $ 15.29 | ||
| 5 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.68 |
Screw (L:15) | 5 | $ 2.68 | ||
| 6 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 6.10 |
Drain Screw | 1 | $ 6.10 | ||
| 7 | 15641-88L00 Spacer
SKU: 15641-88L00 Weight: 0.250000 Brand: Price: $ 26.57 |
Spacer | 1 | $ 26.57 | ||
| 8 | 15642-88L00 Fuel Filter
SKU: 15642-88L00 Weight: 0.060000 Brand: Price: $ 26.57 |
Fuel Filter | 1 | $ 26.57 | ||
| 9 | 15650-99E00 Float
SKU: 15650-99E00 Weight: 0.060000 Brand: Price: $ 76.12 |
Float | 1 | $ 76.12 | ||
| 10 | 15654-88L00 Pin
SKU: 15654-88L00 Weight: 0.250000 Brand: Price: $ 2.82 |
Pin | 1 | $ 2.82 | ||
| 11 | 15683-87J00 Drain Hose (L:120)
SKU: 15683-87J00 Weight: 0.125000 Brand: Price: $ 3.75 |
Drain Hose (L:120) | 1 | $ 3.75 | ||
| 12 | 15760-88L00 Fuel Pressure Regulator
SKU: 15760-88L00 Weight: 0.250000 Brand: Price: $ 200.37 |
Fuel Pressure Regulator | 1 | $ 200.37 | ||
| 13 | 15644-88L00 O-Ring
SKU: 15644-88L00 Weight: 0.060000 Brand: Price: $ 4.79 |
O-Ring | 1 | $ 4.79 | ||
| 14 | 15645-88L00 Regulator Holder
SKU: 15645-88L00 Weight: 0.180000 Brand: Price: $ 6.17 |
Regulator Holder | 1 | $ 6.17 | ||
| 15 | 02112-0408A SCREW
SKU: 02112-0408A Weight: 0.060000 Brand: Price: $ 1.28 |
SCREW | 1 | $ 1.28 | ||
| 16 | 15648-92J00 Ring
SKU: 15648-92J00 Weight: 0.060000 Brand: Price: $ 10.09 |
Ring | 1 | $ 10.09 | ||
| 17 | 15643-88L10 Joint
SKU: 15643-88L10 Weight: 0.060000 Brand: Price: $ 4.81 |
Joint | 1 | $ 4.81 | ||
| 18 | 15641-88L31 Bushing
SKU: 15641-88L31 Weight: 0.060000 Brand: Price: $ 47.61 |
Bushing | 1 | $ 47.61 | ||
| 19 | 15641-88L51 Bushing
SKU: 15641-88L51 Weight: 0.060000 Brand: Price: $ 43.98 |
Bushing | 1 | $ 43.98 | ||
| 20 | 15642-88L10 Fuel Filter
SKU: 15642-88L10 Weight: 0.060000 Brand: Price: $ 19.72 |
Fuel Filter | 1 | $ 19.72 | ||
| 21 | 15612-88L00 Vapor Separator Cover
SKU: 15612-88L00 Weight: 0.250000 Brand: Price: $ 16.03 |
Vapor Separator Cover | 1 | $ 16.03 | ||
| 22 | 15613-88L00 O-Ring
SKU: 15613-88L00 Weight: 0.060000 Brand: Price: $ 5.22 |
O-Ring | 1 | $ 5.22 | ||
| 23 | 15614-88L00 Screw
SKU: 15614-88L00 Weight: 0.060000 Brand: Price: $ 5.12 |
Screw | 3 | $ 5.12 | ||
| 24 | 02142-0408B SCREW
SKU: 02142-0408B Weight: 0.060000 Brand: Price: $ 2.00 |
SCREW | 1 | $ 2.00 | ||
| 25 | 15613-92J00 Gasket
SKU: 15613-92J00 Weight: 0.250000 Brand: Price: $ 19.57 |
Gasket | 1 | $ 19.57 | ||
| 26 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 4.11 |
Bolt w/Washer (6x25) | 3 | $ 4.11 | ||
| 27 | 09169-06090 Washer
SKU: 09169-06090 Weight: 0.250000 Brand: Price: $ 3.07 |
Washer | 3 | $ 3.07 | ||
| 28 | 09320-09053 Cushion
SKU: 09320-09053 Weight: 0.060000 Brand: Price: $ 3.38 |
Cushion | 3 | $ 3.38 | ||
| 29 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 10.42 |
Hose (5x8.2x600) | 1 | $ 10.42 | L:600->460 | |
| 30 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.32 |
Clip | 1 | $ 2.32 | ||
| 31 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.61 |
Protector (L:450) | 1 | $ 5.61 | L:450->390 | |
| 32 | 09403-12324 CLAMP
SKU: 09403-12324 Weight: 0.000000 Brand: Price: $ 3.11 |
CLAMP | 1 | $ 3.11 | ||
| 33 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.70 |
BOLT | 1 | $ 2.70 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
