Suzuki DF 90A Parts Listings - 2014
S/N 09003F-410001 to 09003F-41XXXX

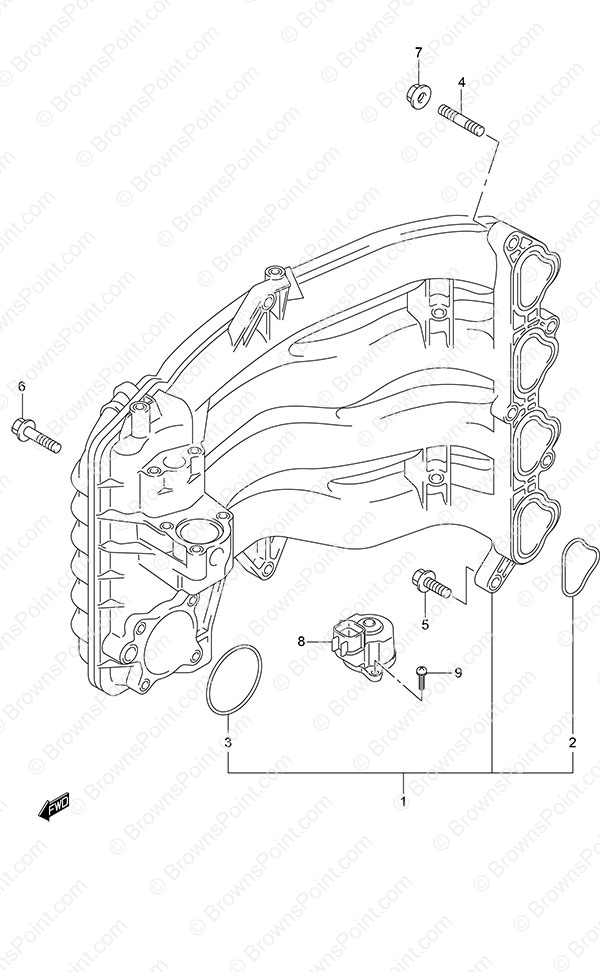

Fig. 9 - Intake Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13110-87L00 Intake Manifold
SKU: 13110-87L00 Weight: 10.000000 Brand: Price: $ 543.26 |
Intake Manifold | 1 | $ 543.26 | ||
| 2 | 13119-87L00 Intake Manifold Gasket
SKU: 13119-87L00 Weight: 0.060000 Brand: Price: $ 17.93 |
Intake Manifold Gasket | 4 | $ 17.93 | ||
| 3 | 13125-87L00 Throttle Body Gasket
SKU: 13125-87L00 Weight: 0.060000 Brand: Price: $ 21.69 |
Throttle Body Gasket | 1 | $ 21.69 | ||
| 4 | 01421-08257 BOLT, STUD
SKU: 01421-08257 Weight: 0.100000 Brand: Price: $ 4.52 |
BOLT, STUD | 2 | $ 4.52 | ||
| 5 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.78 |
BOLT | 4 | $ 3.78 | ||
| 6 | 01550-08457 BOLT
SKU: 01550-08457 Weight: 0.060000 Brand: Price: $ 3.65 |
BOLT | 1 | $ 3.65 | ||
| 7 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 2 | $ 2.38 | ||
| 8 | 18137-87L02 IAC Valve
SKU: 18137-87L02 Weight: 0.300000 Brand: Price: $ 270.38 |
IAC Valve | 1 | $ 270.38 | ||
| 9 | 02112-34167 SCREW
SKU: 02112-34167 Weight: 0.060000 Brand: Price: $ 2.25 |
SCREW | 3 | $ 2.25 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
