Suzuki DF 90A Parts Listings - 2014
S/N 09003F-410001 to 09003F-41XXXX

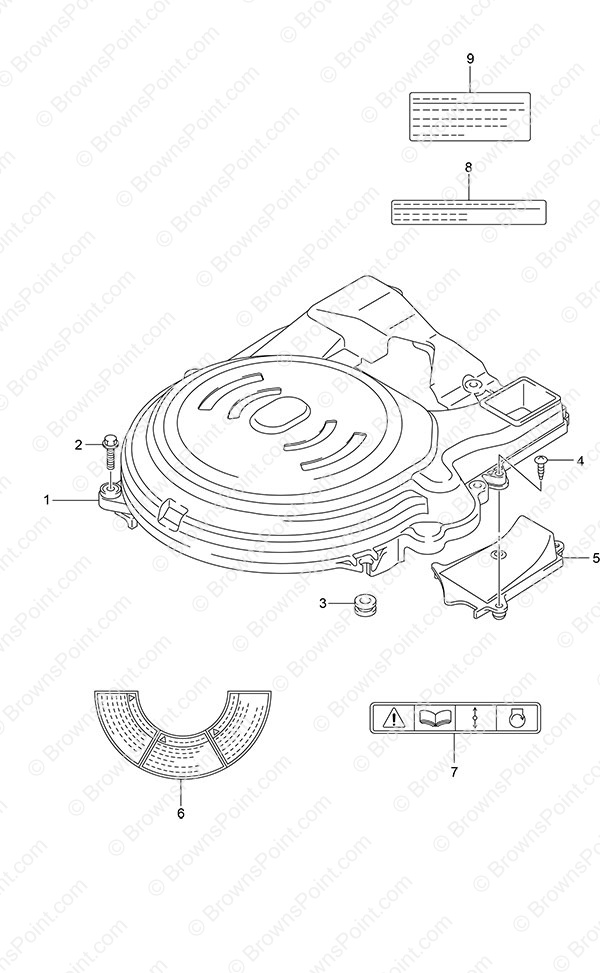

Fig. 3 - Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11510-87L02 Ring Gear Cover (NLA)
SKU: 11510-87L02 Weight: 4.000000 Brand: Price: $ 60.68 |
Ring Gear Cover (NLA) | 1 | $ 60.68 | ||
| 2 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.88 |
BOLT | 4 | $ 2.88 | ||
| 3 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 2.08 |
Cushion | 1 | $ 2.08 | ||
| 4 | 03542-06209 SCREW
SKU: 03542-06209 Weight: 0.100000 Brand: Price: $ 2.31 |
SCREW | 2 | $ 2.31 | ||
| 5 | 11514-87L00 Ring Gear Cover Plate
SKU: 11514-87L00 Weight: 0.250000 Brand: Price: $ 16.97 |
Ring Gear Cover Plate | 1 | $ 16.97 | ||
| 6 | 61472-93E33 LABEL,RECOIL,ST
SKU: 61472-93E33 Weight: 0.000000 Brand: Price: $ 8.01 |
LABEL,RECOIL,ST | 1 | $ 8.01 | ||
| 7 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.61 |
Label (S.I.G.P) | 1 | $ 4.61 | ||
| 8 | 61493-96J00 Clearance Label
SKU: 61493-96J00 Weight: 0.100000 Brand: Price: $ 6.91 |
Clearance Label | 1 | $ 6.91 | ||
| 9 | 61494-87L00 Oil Label
SKU: 61494-87L00 Weight: 0.060000 Brand: Price: $ 6.68 |
Oil Label | 1 | $ 6.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
