Suzuki DF 90A Parts Listings - 2014
S/N 09003F-410001 to 09003F-41XXXX

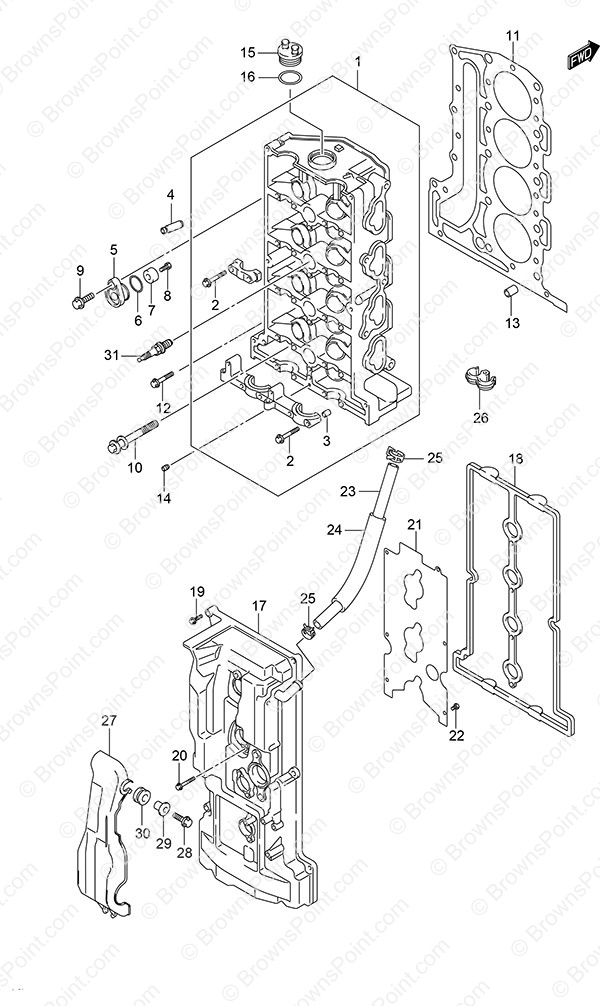

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11100-87L01 Cylinder Head
SKU: 11100-87L01 Weight: 27.000000 Brand: Price: $ 2,170.57 |
Cylinder Head | 1 | $ 2,170.57 | ||
| 2 | 09103-06266 Bolt (6x40)
SKU: 09103-06266 Weight: 0.250000 Brand: Price: $ 2.21 |
Bolt (6x40) | 22 | $ 2.21 | ||
| 3 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 18 | $ 1.78 | ||
| 4 | 11115-73G01-001 Valve Guide
SKU: 11115-73G01-001 Weight: 0.125000 Brand: Price: $ 27.40 |
Valve Guide | 16 | $ 27.40 | Optional | |
| 5 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 2 | $ 16.29 | ||
| 6 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 2 | $ 2.38 | ||
| 7 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 8 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 9 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 10 | 11117-89J00 Bolt
SKU: 11117-89J00 Weight: 0.200000 Brand: Price: $ 6.49 |
Bolt | 10 | $ 6.49 | ||
| 11 | 11141-87L00 Cylinder Head Gasket
SKU: 11141-87L00 Weight: 1.000000 Brand: Price: $ 96.46 |
Cylinder Head Gasket | 1 | $ 96.46 | ||
| 12 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 5 | $ 3.48 | ||
| 13 | 04211-13189 PIN
SKU: 04211-13189 Weight: 0.060000 Brand: Price: $ 2.21 |
PIN | 2 | $ 2.21 | ||
| 14 | 11112-84400 Oil Venturi Plug
SKU: 11112-84400 Weight: 0.060000 Brand: Price: $ 4.02 |
Oil Venturi Plug | 1 | $ 4.02 | ||
| 15 | 11382-99E00 Oil Filler Cap
SKU: 11382-99E00 Weight: 0.060000 Brand: Price: $ 7.28 |
Oil Filler Cap | 1 | $ 7.28 | ||
| 16 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 17 | 11170-87L11 Cylinder Head Cover
SKU: 11170-87L11 Weight: 2.000000 Brand: Price: $ 398.93 |
Cylinder Head Cover | 1 | $ 398.93 | ||
| 18 | 11189-87L00 Cylinder Head Cover Gasket
SKU: 11189-87L00 Weight: 0.120000 Brand: Price: $ 30.84 |
Cylinder Head Cover Gasket | 1 | $ 30.84 | ||
| 19 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6X25 | 8 | $ 2.04 | ||
| 20 | 01547-06457 BOLT 6X45
SKU: 01547-06457 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT 6X45 | 4 | $ 2.33 | ||
| 21 | 11173-87L00 Breather Plate (NLA)
SKU: 11173-87L00 Weight: 0.500000 Brand: Price: $ 7.54 |
Breather Plate (NLA) | 1 | $ 7.54 | ||
| 22 | 02112-0612A SCREW
SKU: 02112-0612A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 6 | $ 1.44 | ||
| 23 | 09355-11165-600 Hose (11x16x600)
SKU: 09355-11165-600 Weight: 0.250000 Brand: Price: $ 13.54 |
Hose (11x16x600) | 1 | $ 13.54 | L:600->260 | |
| 24 | 18498-95J00 Breather Hose Protector (NLA)
SKU: 18498-95J00 Weight: 0.100000 Brand: Price: $ 3.80 |
Breather Hose Protector (NLA) | 1 | $ 3.80 | ||
| 25 | 09401-15414 Clip
SKU: 09401-15414 Weight: 0.062500 Brand: Price: $ 2.34 |
Clip | 2 | $ 2.34 | ||
| 26 | 09408-00155 Clamp (NLA)
SKU: 09408-00155 Weight: 0.060000 Brand: Price: $ 2.80 |
Clamp (NLA) | 1 | $ 2.80 | ||
| 27 | 11194-87L10 Fuel Hose Guard
SKU: 11194-87L10 Weight: 0.250000 Brand: Price: $ 14.52 |
Fuel Hose Guard | 1 | $ 14.52 | ||
| 28 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 29 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 30 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 2 | $ 1.97 | ||
| 31 | 09482-00446 NGK DCPR6E Spark Plug
SKU: 09482-00446 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK DCPR6E Spark Plug | 4 | $ 3.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
