Suzuki DF 70A Parts Listings - 2014
S/N 07003F-410001 to 07003F-41XXXX

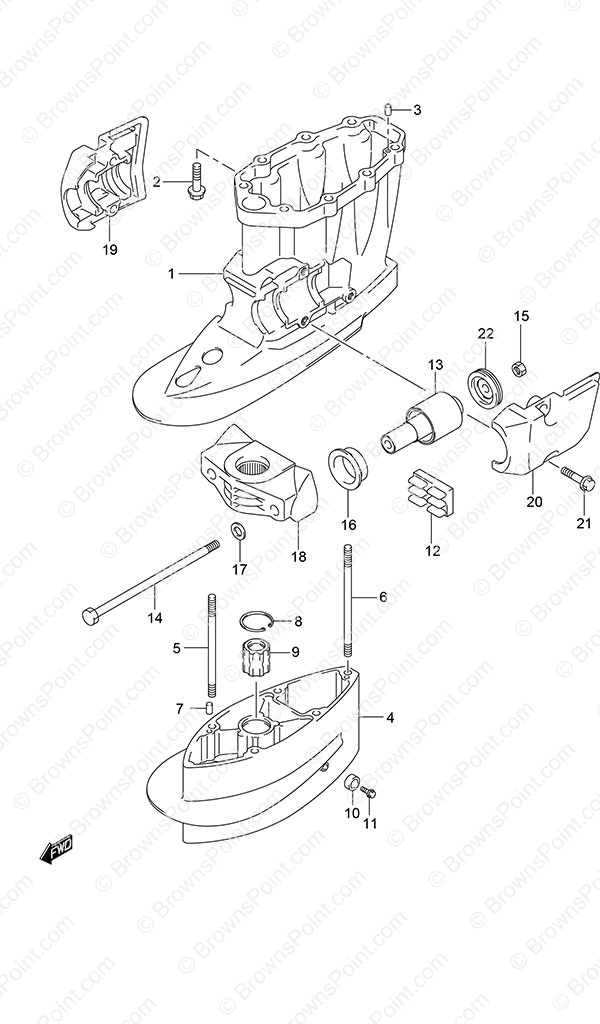

Fig. 36 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-87L00-0EP Drive Shaft Housing
SKU: 52111-87L00-0EP Weight: 10.000000 Brand: Price: $ 829.32 |
Drive Shaft Housing | 1 | $ 829.32 | Black | |
| 1-2 | 52111-87L00-Y5S Drive Shaft Housing
SKU: 52111-87L00-Y5S Weight: 10.000000 Brand: Price: $ 676.87 |
Drive Shaft Housing | 1 | $ 676.87 | White | |
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4-1 | 52131-87L00-0EP Extension Case (NLA)
SKU: 52131-87L00-0EP Weight: 5.000000 Brand: Price: $ 572.39 |
Extension Case (NLA) | 1 | $ 572.39 | Type: X Black | |
| 4-2 | 52131-87L00-Y5S Extension Case
SKU: 52131-87L00-Y5S Weight: 5.000000 Brand: Price: $ 543.23 |
Extension Case | 1 | $ 543.23 | Type: X White | |
| 5 | 09108-10115 Stud Bolt
SKU: 09108-10115 Weight: 0.100000 Brand: Price: $ 24.92 |
Stud Bolt | 4 | $ 24.92 | Type: X | |
| 6 | 09108-10157 Stud Bolt
SKU: 09108-10157 Weight: 0.200000 Brand: Price: $ 38.84 |
Stud Bolt | 1 | $ 38.84 | Type: X | |
| 7 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | Type: X | |
| 8 | 09381-40005 Circlip
SKU: 09381-40005 Weight: 0.060000 Brand: Price: $ 4.61 |
Circlip | 1 | $ 4.61 | Type: X | |
| 9 | 57130-87E02 Drive Shaft Bushing
SKU: 57130-87E02 Weight: 0.180000 Brand: Price: $ 62.96 |
Drive Shaft Bushing | 1 | $ 62.96 | Type: X | |
| 10 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | Type: X | |
| 11 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | Type: X | |
| 12 | 54151-87L00 Lower Thrust Mount
SKU: 54151-87L00 Weight: 0.200000 Brand: Price: $ 5.23 |
Lower Thrust Mount | 1 | $ 5.23 | ||
| 13 | 54160-87L10 Lower Mount
SKU: 54160-87L10 Weight: 1.000000 Brand: Price: $ 74.89 |
Lower Mount | 2 | $ 74.89 | ||
| 14 | 54166-95J02 Mount Bolt
SKU: 54166-95J02 Weight: 0.250000 Brand: Price: $ 35.12 |
Mount Bolt | 2 | $ 35.12 | ||
| 15 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 16 | 54167-87L10 Forward Lower Side Mount
SKU: 54167-87L10 Weight: 0.200000 Brand: Price: $ 8.65 |
Forward Lower Side Mount | 2 | $ 8.65 | ||
| 17 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 | ||
| 18-1 | 54211-90J01-0EP Lower Mount Bracket
SKU: 54211-90J01-0EP Weight: 1.000000 Brand: Price: $ 141.38 |
Lower Mount Bracket | 1 | $ 141.38 | Black | |
| 18-2 | 54211-90J01-Y5S Lower Mount Bracket
SKU: 54211-90J01-Y5S Weight: 1.000000 Brand: Price: $ 118.96 |
Lower Mount Bracket | 1 | $ 118.96 | White | |
| 19-1 | 54221-87L00-0EP Starboard Lower Mount Cover (NLA)
SKU: 54221-87L00-0EP Weight: 0.500000 Brand: Price: $ 66.86 |
Starboard Lower Mount Cover (NLA) | 1 | $ 66.86 | Black | |
| 19-2 | 54221-87L00-Y5S Starboard Lower Mount Cover
SKU: 54221-87L00-Y5S Weight: 0.500000 Brand: Price: $ 56.82 |
Starboard Lower Mount Cover | 1 | $ 56.82 | White | |
| 20-1 | 54231-87L00-0EP Port Lower Mount Cover (NLA)
SKU: 54231-87L00-0EP Weight: 0.500000 Brand: Price: $ 66.86 |
Port Lower Mount Cover (NLA) | 1 | $ 66.86 | Black | |
| 20-2 | 54231-87L00-Y5S Port Lower Mount Cover
SKU: 54231-87L00-Y5S Weight: 0.500000 Brand: Price: $ 0.00 |
Port Lower Mount Cover | 1 | $ 0.00 | White | |
| 21 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 4 | $ 6.81 | ||
| 22 | 54180-88L00 Forward Stopper Damper
SKU: 54180-88L00 Weight: 0.250000 Brand: Price: $ 21.92 |
Forward Stopper Damper | 2 | $ 21.92 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
