Suzuki DF 70A Parts Listings - 2014
S/N 07003F-410001 to 07003F-41XXXX

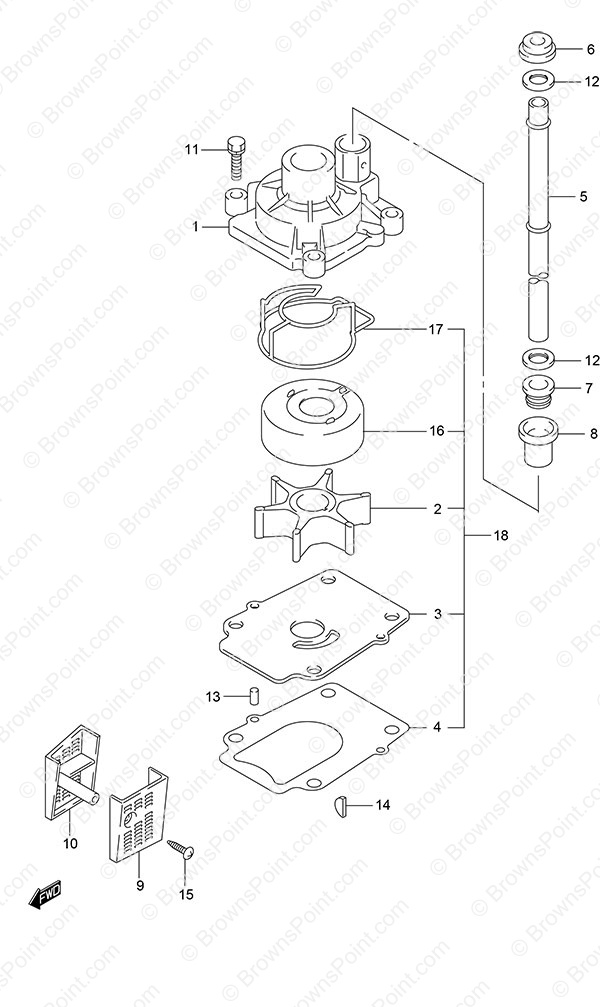

Fig. 15 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-99E10 Water Pump Case
SKU: 17410-99E10 Weight: 0.500000 Brand: Price: $ 74.53 |
Water Pump Case | 1 | $ 74.53 | ||
| 2 | 17461-87E12 Water Pump Impeller
SKU: 17461-87E12 Weight: 0.120000 Brand: Price: $ 53.08 |
Water Pump Impeller | 1 | $ 53.08 | ||
| 3 | 17471-87L00 Water Pump Plate *
SKU: 17471-87L00 Weight: 0.260000 Brand: Price: $ 11.81 |
Water Pump Plate * | 1 | $ 11.81 | ||
| 4 | 17472-87L00 Water Pump Plate Gasket
SKU: 17472-87L00 Weight: 0.060000 Brand: Price: $ 8.40 |
Water Pump Plate Gasket | 1 | $ 8.40 | ||
| 5-1 | 17561-87L20 Water Tube (L)
SKU: 17561-87L20 Weight: 0.500000 Brand: Price: $ 31.20 |
Water Tube (L) | 1 | $ 31.20 | Type: L | |
| 5-2 | 17561-87L30 Water Tube (X)
SKU: 17561-87L30 Weight: 0.500000 Brand: Price: $ 38.44 |
Water Tube (X) | 1 | $ 38.44 | Type: X | |
| 6 | 17562-87L00 Replaced by 17562-87L01
SKU: 17562-87L00 Weight: 0.060000 Brand: Price: $ 3.46 |
Replaced by 17562-87L01 | 1 | $ 3.46 | Upper | |
| 7 | 17563-87D01 Water Tube Bushing
SKU: 17563-87D01 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Tube Bushing | 1 | $ 7.01 | Lower | |
| 8 | 17564-87D00 Water Pump Case Bushing
SKU: 17564-87D00 Weight: 0.060000 Brand: Price: $ 11.80 |
Water Pump Case Bushing | 1 | $ 11.80 | ||
| 9 | 17631-87L00 Port Side Water Filter
SKU: 17631-87L00 Weight: 0.060000 Brand: Price: $ 10.14 |
Port Side Water Filter | 1 | $ 10.14 | ||
| 10 | 17632-87L01 Starboard Side Water Filter
SKU: 17632-87L01 Weight: 0.060000 Brand: Price: $ 8.25 |
Starboard Side Water Filter | 1 | $ 8.25 | ||
| 11 | 29116-93J10 Bolt (8x35)
SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 4 | $ 2.90 | ||
| 12 | 09161-16008 Washer (15.8x26x1)
SKU: 09161-16008 Weight: 0.060000 Brand: Price: $ 2.32 |
Washer (15.8x26x1) | 2 | $ 2.32 | ||
| 13 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 14 | 09420-04009 Water Pump Key
SKU: 09420-04009 Weight: 0.060000 Brand: Price: $ 5.94 |
Water Pump Key | 1 | $ 5.94 | ||
| 15 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 1 | $ 2.21 | ||
| 16 | 17413-99E11 Water Pump Case Sleeve
SKU: 17413-99E11 Weight: 0.160000 Brand: Price: $ 34.88 |
Water Pump Case Sleeve | 1 | $ 34.88 | ||
| 17 | 17416-99E11 Water Pump Case Seal No. 1
SKU: 17416-99E11 Weight: 0.060000 Brand: Price: $ 6.56 |
Water Pump Case Seal No. 1 | 1 | $ 6.56 | ||
| 18 | 17400-87L04 Water Pump Repair Kit DF70A/DF80A/DF90A
SKU: 17400-87L04 Weight: 0.560000 Brand: Price: $ 62.16 |
Water Pump Repair Kit DF70A/DF80A/DF90A | 1 | $ 62.16 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
