Suzuki DF 70A Parts Listings - 2009 to 2011
S/N 07002F-980001 to 07003F-11XXXX

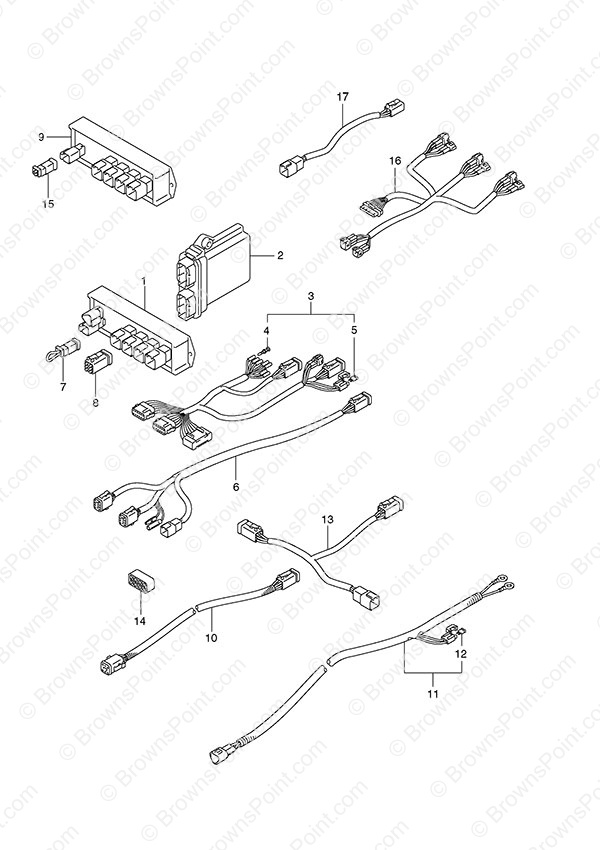

Fig. 42 - Opt: Harness (2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34921-98J00 Active Hub Unit (NLA)
SKU: 34921-98J00 Weight: 1.000000 Brand: Price: $ 120.95 |
Active Hub Unit (NLA) | 1 | $ 120.95 | ||
| 2 | 34922-98J02 Interface Unit (NLA)
SKU: 34922-98J02 Weight: 0.100000 Brand: Price: $ 206.95 |
Interface Unit (NLA) | 1 | $ 206.95 | ||
| 3 | 36661-98J00 Interface Unit Harness Assy (NLA)
SKU: 36661-98J00 Weight: 1.000000 Brand: Price: $ 226.00 |
Interface Unit Harness Assy (NLA) | 1 | $ 226.00 | ||
| 4 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 7 | $ 1.31 | ||
| 5 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 6 | 36664-98J00 3 in Gauge Harness Assembly (NLA)
SKU: 36664-98J00 Weight: 1.000000 Brand: Price: $ 154.75 |
3 in Gauge Harness Assembly (NLA) | 1 | $ 154.75 | ||
| 7 | 36665-98J00 Jumper Wire (NLA)
SKU: 36665-98J00 Weight: 0.100000 Brand: Price: $ 22.95 |
Jumper Wire (NLA) | 1 | $ 22.95 | ||
| 8 | 36666-98J10 6 Pin Connector Cap (NLA)
SKU: 36666-98J10 Weight: 0.100000 Brand: Price: $ 29.85 |
6 Pin Connector Cap (NLA) | 1 | $ 29.85 | ||
| 9 | 34921-98J10 Passive Hub Unit (NLA)
SKU: 34921-98J10 Weight: 1.000000 Brand: Price: $ 102.95 |
Passive Hub Unit (NLA) | 1 | $ 102.95 | ||
| 10-1 | 36662-98J00 Hub Harness Assembly (NLA)
SKU: 36662-98J00 Weight: 1.000000 Brand: Price: $ 38.85 |
Hub Harness Assembly (NLA) | 1 | $ 38.85 | L:1000 | |
| 10-2 | 36662-98J10 Hub Harness Assembly (NLA)
SKU: 36662-98J10 Weight: 1.000000 Brand: Price: $ 83.75 |
Hub Harness Assembly (NLA) | 1 | $ 83.75 | L:6500 | |
| 11-1 | 36663-98J00 Active Hub Power Harness Assy (NLA)
SKU: 36663-98J00 Weight: 1.000000 Brand: Price: $ 58.00 |
Active Hub Power Harness Assy (NLA) | 1 | $ 58.00 | L:2500 | |
| 11-2 | 36663-98J10 Active Hub Power Harness Assy
SKU: 36663-98J10 Weight: 1.000000 Brand: Price: $ 113.62 |
Active Hub Power Harness Assy | 1 | $ 113.62 | L:6000 | |
| 12 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 13 | 36664-98J10 2 in Gauge Harness Assembly (NLA)
SKU: 36664-98J10 Weight: 1.000000 Brand: Price: $ 75.85 |
2 in Gauge Harness Assembly (NLA) | 1 | $ 75.85 | ||
| 14 | 36666-98J00 8 Pin Connector Cap (NLA)
SKU: 36666-98J00 Weight: 0.100000 Brand: Price: $ 31.60 |
8 Pin Connector Cap (NLA) | 1 | $ 31.60 | ||
| 15 | 36667-98J00 2 Pin Connector Cap (NLA)
SKU: 36667-98J00 Weight: 0.100000 Brand: Price: $ 19.50 |
2 Pin Connector Cap (NLA) | 1 | $ 19.50 | ||
| 16 | 36661-93J00 Interface Module Adapter (NLA)
SKU: 36661-93J00 Weight: 0.500000 Brand: Price: $ 162.11 |
Interface Module Adapter (NLA) | 1 | $ 162.11 | ||
| 17 | 36646-87L00 Interface Module Adapter Lead (NLA)
SKU: 36646-87L00 Weight: 0.500000 Brand: Price: $ 22.76 |
Interface Module Adapter Lead (NLA) | 1 | $ 22.76 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
