Suzuki DF 70A Parts Listings - 2009 to 2011
S/N 07002F-980001 to 07003F-11XXXX

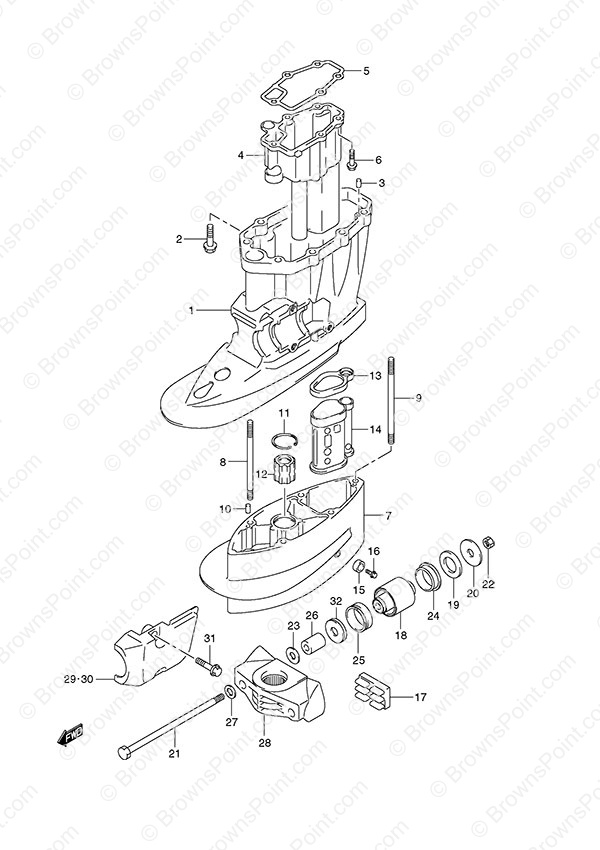

Fig. 32 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 52111-87L00-0EP Drive Shaft Housing
SKU: 52111-87L00-0EP Weight: 10.000000 Brand: Price: $ 829.32 |
Drive Shaft Housing | 1 | $ 829.32 | ||
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 52311-87L00 Exhaust Tube Housing (NLA)
SKU: 52311-87L00 Weight: 1.000000 Brand: Price: $ 334.71 |
Exhaust Tube Housing (NLA) | 1 | $ 334.71 | S/N 010753 Older | |
| 5 | 52331-87L00 Exhaust Tube Housing Gasket
SKU: 52331-87L00 Weight: 0.200000 Brand: Price: $ 10.05 |
Exhaust Tube Housing Gasket | 1 | $ 10.05 | S/N 010753 Older | |
| 7 | 52131-87L00-0EP Extension Case (NLA)
SKU: 52131-87L00-0EP Weight: 5.000000 Brand: Price: $ 572.39 |
Extension Case (NLA) | 1 | $ 572.39 | Type: X | |
| 8 | 09108-10115 Stud Bolt
SKU: 09108-10115 Weight: 0.100000 Brand: Price: $ 24.92 |
Stud Bolt | 4 | $ 24.92 | Type: X | |
| 9 | 09108-10157 Stud Bolt
SKU: 09108-10157 Weight: 0.200000 Brand: Price: $ 38.84 |
Stud Bolt | 1 | $ 38.84 | Type: X | |
| 10 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | Type: X | |
| 11 | 09381-40005 Circlip
SKU: 09381-40005 Weight: 0.060000 Brand: Price: $ 4.61 |
Circlip | 1 | $ 4.61 | Type: X | |
| 12 | 57130-87E02 Drive Shaft Bushing
SKU: 57130-87E02 Weight: 0.180000 Brand: Price: $ 62.96 |
Drive Shaft Bushing | 1 | $ 62.96 | Type: X | |
| 13 | 52333-87L00 Exhaust Tube Extension Seal
SKU: 52333-87L00 Weight: 0.250000 Brand: Price: $ 15.64 |
Exhaust Tube Extension Seal | 1 | $ 15.64 | Type: X S/N 010753 Older | |
| 14 | 52411-87L00 Exhaust Tube Extension (NLA)
SKU: 52411-87L00 Weight: 1.000000 Brand: Price: $ 88.66 |
Exhaust Tube Extension (NLA) | 1 | $ 88.66 | Type: X S/N 010753 Older | |
| 15-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | Type: X | |
| 15-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Type: X Opt: Fresh Water Use Only | |
| 16 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | Type: X | |
| 17 | 54151-87L00 Lower Thrust Mount
SKU: 54151-87L00 Weight: 0.200000 Brand: Price: $ 5.23 |
Lower Thrust Mount | 1 | $ 5.23 | ||
| 18 | 54160-87L00 Lower Mount
SKU: 54160-87L00 Weight: 1.000000 Brand: Price: $ 91.92 |
Lower Mount | 2 | $ 91.92 | ||
| 19 | 54165-87L00 Reverse Stopper Lower Damper
SKU: 54165-87L00 Weight: 0.250000 Brand: Price: $ 9.12 |
Reverse Stopper Lower Damper | 2 | $ 9.12 | ||
| 20 | 09160-12120 Washer (12x48x3) (NLA)
SKU: 09160-12120 Weight: 0.200000 Brand: Price: $ 6.17 |
Washer (12x48x3) (NLA) | 2 | $ 6.17 | ||
| 21 | 54166-95J02 Mount Bolt
SKU: 54166-95J02 Weight: 0.250000 Brand: Price: $ 35.12 |
Mount Bolt | 2 | $ 35.12 | ||
| 22 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 23 | 09160-12113 Washer (12.5x30x2.5)
SKU: 09160-12113 Weight: 0.060000 Brand: Price: $ 3.54 |
Washer (12.5x30x2.5) | 2 | $ 3.54 | ||
| 24-1 | 54167-87L00 Lower Side Mount
SKU: 54167-87L00 Weight: 0.250000 Brand: Price: $ 8.07 |
Lower Side Mount | 2 | $ 8.07 | ||
| 24-2 | 54167-87L01 Lower Side Mount
SKU: 54167-87L01 Weight: 0.250000 Brand: Price: $ 7.90 |
Lower Side Mount | 2 | $ 7.90 | S/N 010114 Newer | |
| 25 | 54167-87L10 Forward Lower Side Mount
SKU: 54167-87L10 Weight: 0.200000 Brand: Price: $ 8.65 |
Forward Lower Side Mount | 2 | $ 8.65 | ||
| 26 | 54173-87L00 Lower Mount Spacer
SKU: 54173-87L00 Weight: 0.200000 Brand: Price: $ 15.64 |
Lower Mount Spacer | 2 | $ 15.64 | ||
| 27 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 | ||
| 28 | 54211-90J01-0EP Lower Mount Bracket
SKU: 54211-90J01-0EP Weight: 1.000000 Brand: Price: $ 141.38 |
Lower Mount Bracket | 1 | $ 141.38 | ||
| 29 | 54221-87L00-0EP Starboard Lower Mount Cover (NLA)
SKU: 54221-87L00-0EP Weight: 0.500000 Brand: Price: $ 66.86 |
Starboard Lower Mount Cover (NLA) | 1 | $ 66.86 | ||
| 30 | 54231-87L00-0EP Port Lower Mount Cover (NLA)
SKU: 54231-87L00-0EP Weight: 0.500000 Brand: Price: $ 66.86 |
Port Lower Mount Cover (NLA) | 1 | $ 66.86 | ||
| 31 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 4 | $ 6.81 | ||
| 32 | 54180-87L00 Forward Stopper Damper
SKU: 54180-87L00 Weight: 0.200000 Brand: Price: $ 29.45 |
Forward Stopper Damper | 2 | $ 29.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
