Suzuki DF 70A Parts Listings - 2009 to 2011
S/N 07002F-980001 to 07003F-11XXXX

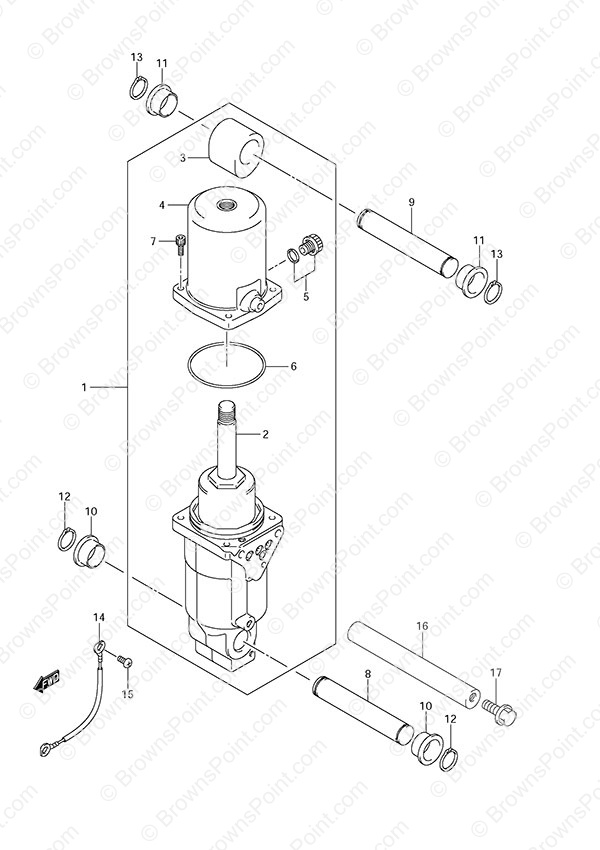

Fig. 29 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-87L00 Power w/Tilt & Trim Assembly (NLA)
SKU: 48000-87L00 Weight: 10.000000 Brand: Price: $ 1,877.49 |
Power w/Tilt & Trim Assembly (NLA) | 1 | $ 1,877.49 | ||
| 2 | 48400-87L02 Manifold Assembly
SKU: 48400-87L02 Weight: 5.000000 Brand: Price: $ 695.27 |
Manifold Assembly | 1 | $ 695.27 | ||
| 3 | 48611-87L00 Metal Joint
SKU: 48611-87L00 Weight: 0.200000 Brand: Price: $ 214.70 |
Metal Joint | 1 | $ 214.70 | ||
| 4 | 48571-87L01 Reservoir Tank
SKU: 48571-87L01 Weight: 0.820000 Brand: Price: $ 203.00 |
Reservoir Tank | 1 | $ 203.00 | ||
| 5 | 48572-87L00 Plug
SKU: 48572-87L00 Weight: 0.200000 Brand: Price: $ 21.60 |
Plug | 1 | $ 21.60 | ||
| 6 | 48557-90J00 O-Ring
SKU: 48557-90J00 Weight: 0.060000 Brand: Price: $ 22.40 |
O-Ring | 1 | $ 22.40 | ||
| 7 | 48862-87J20 Reservoir Tank Bolt
SKU: 48862-87J20 Weight: 0.060000 Brand: Price: $ 15.52 |
Reservoir Tank Bolt | 4 | $ 15.52 | ||
| 8 | 48321-90J00 Tilt Cylinder Upper Shaft
SKU: 48321-90J00 Weight: 0.800000 Brand: Price: $ 52.15 |
Tilt Cylinder Upper Shaft | 1 | $ 52.15 | Lower 2010 Older | |
| 9 | 48321-90J00 Tilt Cylinder Upper Shaft
SKU: 48321-90J00 Weight: 0.800000 Brand: Price: $ 52.15 |
Tilt Cylinder Upper Shaft | 1 | $ 52.15 | Upper | |
| 10 | 48325-87L00 Tilt Cylinder Bushing
SKU: 48325-87L00 Weight: 0.200000 Brand: Price: $ 3.81 |
Tilt Cylinder Bushing | 2 | $ 3.81 | Lower | |
| 11 | 48325-87L00 Tilt Cylinder Bushing
SKU: 48325-87L00 Weight: 0.200000 Brand: Price: $ 3.81 |
Tilt Cylinder Bushing | 2 | $ 3.81 | Upper | |
| 12 | 09380-22015 Circlip
SKU: 09380-22015 Weight: 0.060000 Brand: Price: $ 3.96 |
Circlip | 2 | $ 3.96 | Lower Shaft 2010 Older | |
| 13 | 09380-22015 Circlip
SKU: 09380-22015 Weight: 0.060000 Brand: Price: $ 3.96 |
Circlip | 2 | $ 3.96 | Upper Shaft | |
| 14 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | PTT to Anode | |
| 15 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 16 | 48121-90J00 Tilt Cylinder Lower Shaft
SKU: 48121-90J00 Weight: 0.950000 Brand: Price: $ 81.27 |
Tilt Cylinder Lower Shaft | 1 | $ 81.27 | S/N 110001 Newer | |
| 17 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 1 | $ 11.01 | S/N 110001 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
