Suzuki DF 70A Parts Listings - 2009 to 2011
S/N 07002F-980001 to 07003F-11XXXX

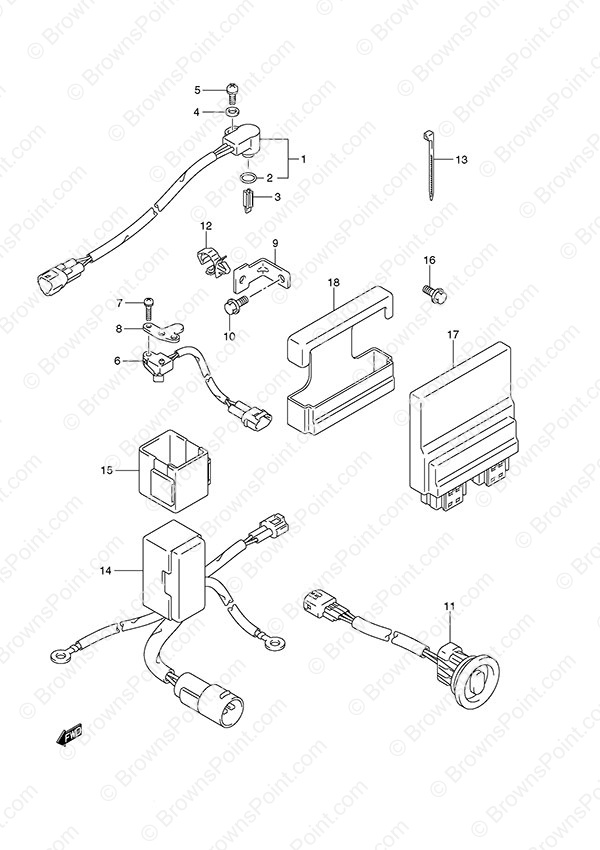

Fig. 26 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13580-87L01 Shift Position Sensor Assembly
SKU: 13580-87L01 Weight: 0.500000 Brand: Price: $ 204.63 |
Shift Position Sensor Assembly | 1 | $ 204.63 | S/N 010753 Older | |
| 2 | 13575-40F00 O-Ring
SKU: 13575-40F00 Weight: 0.062500 Brand: Price: $ 4.30 |
O-Ring | 1 | $ 4.30 | ||
| 3 | 37729-96L00 Shift Sensor Lever
SKU: 37729-96L00 Weight: 0.060000 Brand: Price: $ 2.18 |
Shift Sensor Lever | 1 | $ 2.18 | S/N 010753 Older | |
| 4 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | S/N 010753 Older | |
| 5 | 02112-35167 SCREW
SKU: 02112-35167 Weight: 0.060000 Brand: Price: $ 2.28 |
SCREW | 1 | $ 2.28 | S/N 010753 Older | |
| 6 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | ||
| 7 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | ||
| 8 | 37726-90J10 Switch Bracket
SKU: 37726-90J10 Weight: 0.060000 Brand: Price: $ 3.31 |
Switch Bracket | 1 | $ 3.31 | ||
| 9 | 37726-87L00 Switch Lead Clamp Bracket (NLA)
SKU: 37726-87L00 Weight: 0.200000 Brand: Price: $ 3.30 |
Switch Lead Clamp Bracket (NLA) | 1 | $ 3.30 | ||
| 10 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 37850-99E05 PTT Switch Assembly
SKU: 37850-99E05 Weight: 0.250000 Brand: Price: $ 83.20 |
PTT Switch Assembly | 1 | $ 83.20 | ||
| 12 | 09403-11321 Clamp
SKU: 09403-11321 Weight: 0.060000 Brand: Price: $ 3.40 |
Clamp | 1 | $ 3.40 | ||
| 13 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 14 | 38410-93J12 PTT Relay Assembly
SKU: 38410-93J12 Weight: 0.460000 Brand: Price: $ 136.14 |
PTT Relay Assembly | 1 | $ 136.14 | ||
| 15 | 38415-93J00 PTT Relay Holder
SKU: 38415-93J00 Weight: 0.060000 Brand: Price: $ 6.68 |
PTT Relay Holder | 1 | $ 6.68 | ||
| 16 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 17-1 | 33920-87L50 Engine Control Unit
SKU: 33920-87L50 Weight: 2.000000 Brand: Price: $ 2,145.77 |
Engine Control Unit | 1 | $ 2,145.77 | ||
| 17-2 | 33920-87LA0 Engine Control Unit (NLA)
SKU: 33920-87LA0 Weight: 2.000000 Brand: Price: $ 2,079.26 |
Engine Control Unit (NLA) | 1 | $ 2,079.26 | 2010 | |
| 17-3 | 33920-87LG0 Engine Control Unit
SKU: 33920-87LG0 Weight: 2.000000 Brand: Price: $ 2,145.77 |
Engine Control Unit | 1 | $ 2,145.77 | S/N 010754 Newer | |
| 18 | 33925-87L00 ECU Cushion
SKU: 33925-87L00 Weight: 0.100000 Brand: Price: $ 13.34 |
ECU Cushion | 1 | $ 13.34 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
