Suzuki DF 70A Parts Listings - 2009 to 2011
S/N 07002F-980001 to 07003F-11XXXX

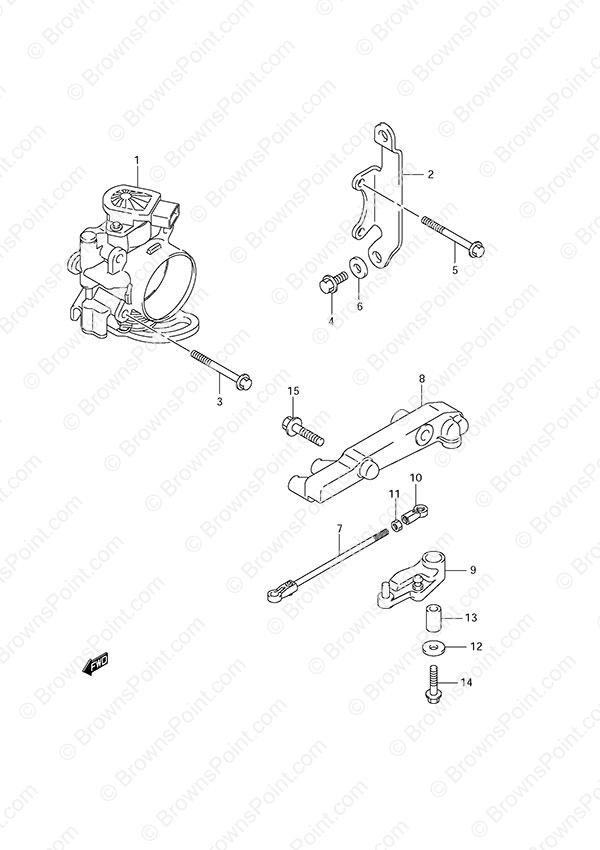

Fig. 15 - Throttle Body
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13300-87L11 Throttle Body Assembly
SKU: 13300-87L11 Weight: 2.000000 Brand: Price: $ 548.09 |
Throttle Body Assembly | 1 | $ 548.09 | ||
| 2 | 13315-87L00 Throttle Body Bracket
SKU: 13315-87L00 Weight: 0.500000 Brand: Price: $ 20.04 |
Throttle Body Bracket | 1 | $ 20.04 | ||
| 3 | 01550-06507 BOLT
SKU: 01550-06507 Weight: 0.060000 Brand: Price: $ 2.95 |
BOLT | 2 | $ 2.95 | ||
| 4 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 5 | 01550-06557 BOLT
SKU: 01550-06557 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 2 | $ 2.84 | ||
| 6 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 | ||
| 7 | 13510-87L00 Throttle Rod
SKU: 13510-87L00 Weight: 0.200000 Brand: Price: $ 24.11 |
Throttle Rod | 1 | $ 24.11 | ||
| 8 | 19115-87L00 Throttle Lever Holder
SKU: 19115-87L00 Weight: 0.500000 Brand: Price: $ 73.71 |
Throttle Lever Holder | 1 | $ 73.71 | ||
| 9 | 19120-87L00 Throttle Lever
SKU: 19120-87L00 Weight: 0.250000 Brand: Price: $ 29.15 |
Throttle Lever | 1 | $ 29.15 | ||
| 10 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 11 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 12 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 13 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 14 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 | ||
| 15 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 2 | $ 3.59 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
