Suzuki DF 70A Parts Listings - 2009 to 2011
S/N 07002F-980001 to 07003F-11XXXX

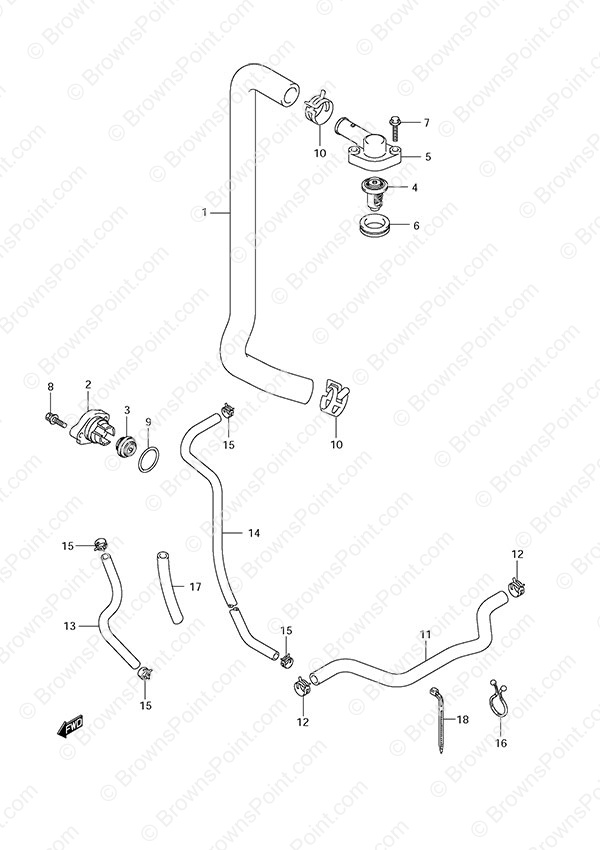

Fig. 14 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11196-87L00 Water Return Hose
SKU: 11196-87L00 Weight: 0.500000 Brand: Price: $ 43.48 |
Water Return Hose | 1 | $ 43.48 | ||
| 2 | 17611-90J00 Water Pressure Valve Cover
SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | ||
| 3 | 17660-99E01 Water Pressure Valve
SKU: 17660-99E01 Weight: 0.125000 Brand: Price: $ 17.21 |
Water Pressure Valve | 1 | $ 17.21 | ||
| 4-1 | 17670-90J01 Thermostat (60c)
SKU: 17670-90J01 Weight: 0.250000 Brand: Price: $ 62.65 |
Thermostat (60c) | 1 | $ 62.65 | Standard | |
| 4-2 | 17670-90J11 Thermostat (71c)
SKU: 17670-90J11 Weight: 0.120000 Brand: Price: $ 62.65 |
Thermostat (71c) | 1 | $ 62.65 | Optional | |
| 5 | 17681-87L00 Thermostat Cover
SKU: 17681-87L00 Weight: 0.250000 Brand: Price: $ 45.73 |
Thermostat Cover | 1 | $ 45.73 | ||
| 6 | 17685-87L01 Thermostat Cover Seal
SKU: 17685-87L01 Weight: 0.060000 Brand: Price: $ 2.03 |
Thermostat Cover Seal | 1 | $ 2.03 | ||
| 7 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 8 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 9 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 10 | 09401-26408 Clip
SKU: 09401-26408 Weight: 0.060000 Brand: Price: $ 3.57 |
Clip | 2 | $ 3.57 | ||
| 11 | 17915-87L00 Water Flush Hose
SKU: 17915-87L00 Weight: 0.250000 Brand: Price: $ 15.10 |
Water Flush Hose | 1 | $ 15.10 | ||
| 12 | 09401-15414 Clip
SKU: 09401-15414 Weight: 0.062500 Brand: Price: $ 2.34 |
Clip | 2 | $ 2.34 | ||
| 13 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Union to Cooler L:600->200 | |
| 14 | 09352-50006-00B Hose (5x9x2000)
SKU: 09352-50006-00B Weight: 0.250000 Brand: Price: $ 17.89 |
Hose (5x9x2000) | 1 | $ 17.89 | Cooler to Holder L:600->560 | |
| 15-1 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 15-2 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 3 | $ 2.09 | S/N 010754 Newer | |
| 16 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 2 | $ 2.13 | S/N 981176 Older | |
| 17 | 18498-99EA0 Protector (L:80) (NLA)
SKU: 18498-99EA0 Weight: 0.100000 Brand: Price: $ 1.47 |
Protector (L:80) (NLA) | 1 | $ 1.47 | ||
| 18 | 09407-11401 Clamp (L:95)
SKU: 09407-11401 Weight: 0.060000 Brand: Price: $ 2.28 |
Clamp (L:95) | 1 | $ 2.28 | S/N 981177 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
