Suzuki DF 70A Parts Listings - 2009 to 2011
S/N 07002F-980001 to 07003F-11XXXX

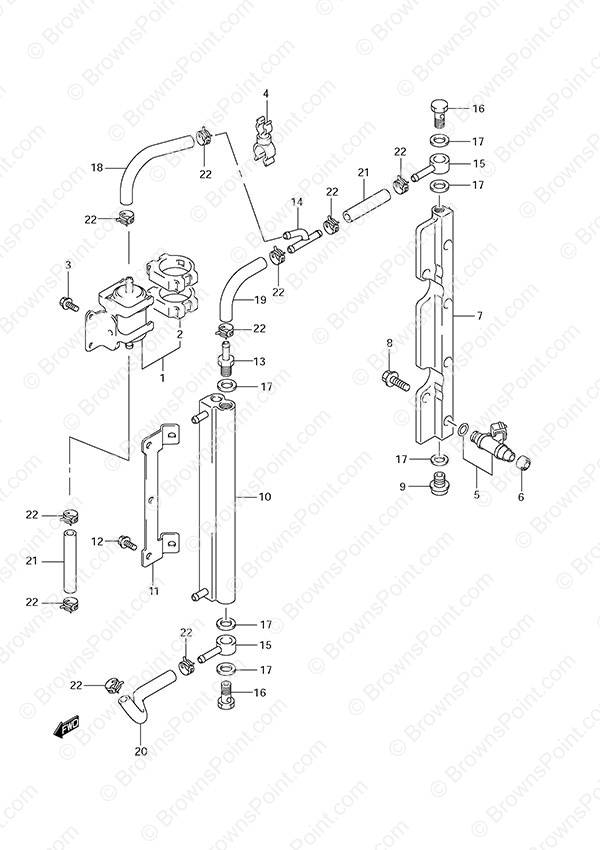

Fig. 11 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15440-87L11 H/P Fuel Filter
SKU: 15440-87L11 Weight: 0.750000 Brand: Price: $ 71.57 |
H/P Fuel Filter | 1 | $ 71.57 | ||
| 2 | 15422-96J01 Fuel Filter Clamp
SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.41 |
Fuel Filter Clamp | 2 | $ 6.41 | ||
| 3 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 4 | 09408-00233 Clamp (NLA)
SKU: 09408-00233 Weight: 0.100000 Brand: Price: $ 2.80 |
Clamp (NLA) | 1 | $ 2.80 | ||
| 5 | 15710-87L00 Fuel Injector
SKU: 15710-87L00 Weight: 0.250000 Brand: Price: $ 228.00 |
Fuel Injector | 4 | $ 228.00 | ||
| 6 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 4 | $ 13.65 | ||
| 7 | 15751-87L00 Delivery Pipe
SKU: 15751-87L00 Weight: 1.000000 Brand: Price: $ 146.66 |
Delivery Pipe | 1 | $ 146.66 | ||
| 8 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 9 | 01550-12167 BOLT
SKU: 01550-12167 Weight: 0.100000 Brand: Price: $ 3.89 |
BOLT | 1 | $ 3.89 | ||
| 10 | 15770-87L00 Fuel Cooler
SKU: 15770-87L00 Weight: 1.000000 Brand: Price: $ 109.54 |
Fuel Cooler | 1 | $ 109.54 | ||
| 11 | 15775-87L00 Fuel Cooler Bracket (NLA)
SKU: 15775-87L00 Weight: 0.500000 Brand: Price: $ 8.85 |
Fuel Cooler Bracket (NLA) | 1 | $ 8.85 | ||
| 12 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 5 | $ 2.33 | ||
| 13 | 15773-90J10 UNION,FUEL HOSE
SKU: 15773-90J10 Weight: 0.000000 Brand: Price: $ 18.53 |
UNION,FUEL HOSE | 1 | $ 18.53 | ||
| 14 | 15830-93J00 3 Way Union (NLA)
SKU: 15830-93J00 Weight: 0.060000 Brand: Price: $ 17.23 |
3 Way Union (NLA) | 1 | $ 17.23 | ||
| 15 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 16.69 |
Union | 2 | $ 16.69 | ||
| 16 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 2 | $ 9.81 | ||
| 17 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 6 | $ 3.46 | ||
| 18 | 15681-87L11 Fuel Hose
SKU: 15681-87L11 Weight: 0.500000 Brand: Price: $ 22.42 |
Fuel Hose | 1 | $ 22.42 | Filter to 3 Way | |
| 19-1 | 15681-96J20 Fuel Hose
SKU: 15681-96J20 Weight: 0.500000 Brand: Price: $ 27.54 |
Fuel Hose | 1 | $ 27.54 | Cooler to 3 Way | |
| 19-2 | 15681-87L00 Fuel Hose
SKU: 15681-87L00 Weight: 0.200000 Brand: Price: $ 33.69 |
Fuel Hose | 1 | $ 33.69 | Cooler to 3 Way | |
| 20-1 | 15682-87L01 Fuel Hose
SKU: 15682-87L01 Weight: 0.250000 Brand: Price: $ 22.16 |
Fuel Hose | 1 | $ 22.16 | Cooler to Separator | |
| 20-2 | 15682-87L10 Fuel Hose (NLA)
SKU: 15682-87L10 Weight: 0.250000 Brand: Price: $ 18.02 |
Fuel Hose (NLA) | 1 | $ 18.02 | Cooler to Separator S/N 110001 Newer | |
| 21-1 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 2 | $ 110.18 | L:600->60 | |
| 21-2 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 2 | $ 34.42 | S/N 110001 Newer | |
| 22 | 09401-11425 Clip
SKU: 09401-11425 Weight: 0.060000 Brand: Price: $ 3.46 |
Clip | 10 | $ 3.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
