Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14001F-682148
S/N 14001Z-251001 to 14001Z-680233

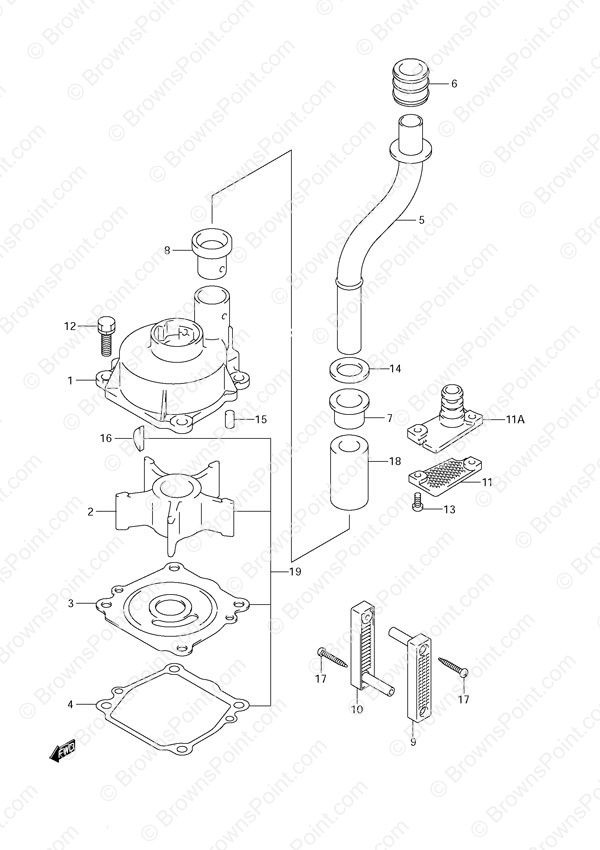

Fig. 13 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17400-90812 Water Pump Case Set
SKU: 17400-90812 Weight: 1.000000 Brand: Price: $ 154.61 |
Water Pump Case Set | 1 | $ 154.61 | Includes the Following: 1) Water Pump Case 1) Water Pump Plate 4) Bolt (8x45) | |
| 2 | 17461-90J01 Water Pump Impeller
SKU: 17461-90J01 Weight: 0.160000 Brand: Price: $ 67.58 |
Water Pump Impeller | 1 | $ 67.58 | ||
| 3 | 17471-92J00 Water Pump Plate
SKU: 17471-92J00 Weight: 0.200000 Brand: Price: $ 11.86 |
Water Pump Plate | 1 | $ 11.86 | ||
| 4 | 17472-87E10 Water Pump Plate Gasket
SKU: 17472-87E10 Weight: 0.060000 Brand: Price: $ 6.07 |
Water Pump Plate Gasket | 1 | $ 6.07 | ||
| 5-1 | 17561-90J03 Water Tube (L)
SKU: 17561-90J03 Weight: 0.220000 Brand: Price: $ 35.28 |
Water Tube (L) | 1 | $ 35.28 | DF140T | |
| 5-2 | 17561-90J13 Water Tube (X)
SKU: 17561-90J13 Weight: 0.340000 Brand: Price: $ 41.62 |
Water Tube (X) | 1 | $ 41.62 | DF140T DF140Z | |
| 6 | 17562-90J01 Water Tube Bushing
SKU: 17562-90J01 Weight: 0.060000 Brand: Price: $ 3.33 |
Water Tube Bushing | 1 | $ 3.33 | Upper | |
| 7 | 17563-87D01 Water Tube Bushing
SKU: 17563-87D01 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Tube Bushing | 1 | $ 7.01 | Lower | |
| 8 | 17564-87D00 Water Pump Case Bushing
SKU: 17564-87D00 Weight: 0.060000 Brand: Price: $ 11.80 |
Water Pump Case Bushing | 1 | $ 11.80 | ||
| 9 | 17631-90J00 Port Side Water Filter
SKU: 17631-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Port Side Water Filter | 1 | $ 9.21 | ||
| 10 | 17632-90J00 Starboard Side Water Filter
SKU: 17632-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Starboard Side Water Filter | 1 | $ 9.21 | ||
| 11 | 17635-87E00 Sub Water Filter
SKU: 17635-87E00 Weight: 0.060000 Brand: Price: $ 5.02 |
Sub Water Filter | 1 | $ 5.02 | ||
| 11A | 17635-90J00 Sub Water Tube Plug
SKU: 17635-90J00 Weight: 0.060000 Brand: Price: $ 5.43 |
Sub Water Tube Plug | 1 | $ 5.43 | DF140T:376160 Newer DF140Z:371393 Newer | |
| 12 | 09117-08110 Bolt (8x25)
SKU: 09117-08110 Weight: 0.060000 Brand: Price: $ 5.04 |
Bolt (8x25) | 4 | $ 5.04 | ||
| 13 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 14 | 09161-16008 Washer (15.8x26x1)
SKU: 09161-16008 Weight: 0.060000 Brand: Price: $ 2.32 |
Washer (15.8x26x1) | 1 | $ 2.32 | ||
| 15 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 16 | 09420-05009 Water Pump Key
SKU: 09420-05009 Weight: 0.060000 Brand: Price: $ 5.92 |
Water Pump Key | 1 | $ 5.92 | ||
| 17-1 | 03112-04309 SCREW 4X30
SKU: 03112-04309 Weight: 0.060000 Brand: Price: $ 1.73 |
SCREW 4X30 | 2 | $ 1.73 | ||
| 17-2 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 2 | $ 2.21 | DF140T:371937 Newer DF140Z:371064 Newer | |
| 18 | 17612-90J01 Water Tube Spacer (X)
SKU: 17612-90J01 Weight: 0.060000 Brand: Price: $ 3.93 |
Water Tube Spacer (X) | 1 | $ 3.93 | ||
| 19 | 17400-90J20 Water Repair Pump Kit DF90/DF115/DF140
SKU: 17400-90J20 Weight: 0.380000 Brand: Price: $ 66.17 |
Water Repair Pump Kit DF90/DF115/DF140 | 1 | $ 66.17 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
