Suzuki DF 70A Parts Listings - 2009 to 2011
S/N 07002F-980001 to 07003F-11XXXX

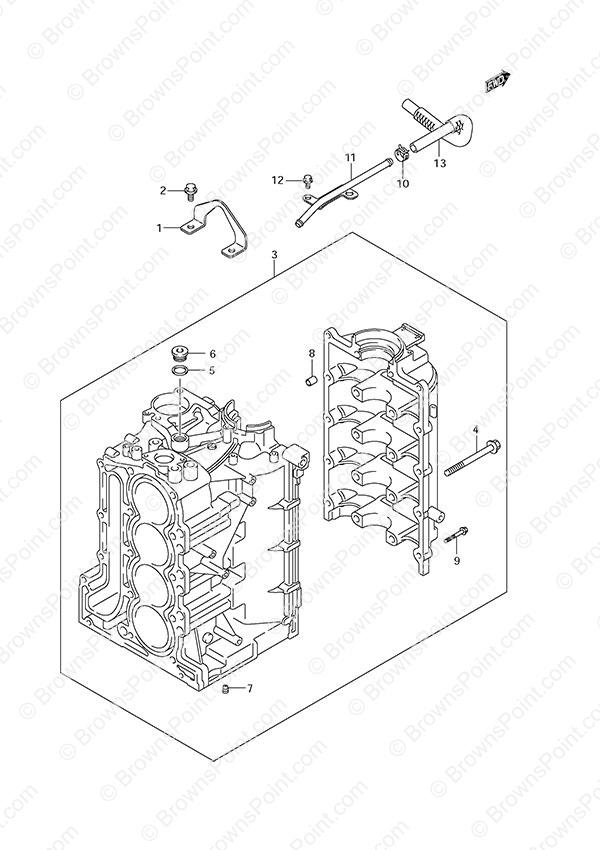

Fig. 2 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11291-87L00 Engine Hook (NLA)
SKU: 11291-87L00 Weight: 0.100000 Brand: Price: $ 16.73 |
Engine Hook (NLA) | 1 | $ 16.73 | ||
| 2 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 3 | 11300-87L00 Cylinder Block Assembly (NLA)
SKU: 11300-87L00 Weight: 50.000000 Brand: Price: $ 2,274.82 |
Cylinder Block Assembly (NLA) | 1 | $ 2,274.82 | ||
| 4 | 11117-90J01 Crankcase Bolt (NLA)
SKU: 11117-90J01 Weight: 0.160000 Brand: Price: $ 4.22 |
Crankcase Bolt (NLA) | 10 | $ 4.22 | ||
| 5 | 11216-77E00 Oil Gallery Plug Gasket
SKU: 11216-77E00 Weight: 0.060000 Brand: Price: $ 3.19 |
Oil Gallery Plug Gasket | 3 | $ 3.19 | ||
| 6 | 09248-18011 Oil Gallery Plug
SKU: 09248-18011 Weight: 0.060000 Brand: Price: $ 6.36 |
Oil Gallery Plug | 3 | $ 6.36 | ||
| 7 | 09246-04009 Plug
SKU: 09246-04009 Weight: 0.060000 Brand: Price: $ 3.68 |
Plug | 1 | $ 3.68 | ||
| 8 | 09206-13019 Knock Pin
SKU: 09206-13019 Weight: 0.062500 Brand: Price: $ 2.54 |
Knock Pin | 5 | $ 2.54 | ||
| 9 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 10 | $ 3.48 | ||
| 10 | 09401-15414 Clip
SKU: 09401-15414 Weight: 0.062500 Brand: Price: $ 2.34 |
Clip | 1 | $ 2.34 | ||
| 11 | 11223-87L00 Breather Pipe (NLA)
SKU: 11223-87L00 Weight: 0.250000 Brand: Price: $ 25.60 |
Breather Pipe (NLA) | 1 | $ 25.60 | ||
| 12 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 13 | 11224-87L00 Breather Hose No. 2 (NLA)
SKU: 11224-87L00 Weight: 0.250000 Brand: Price: $ 7.54 |
Breather Hose No. 2 (NLA) | 1 | $ 7.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
