Suzuki DF 50AV Parts Listings - 2014
S/N 05004F-410001 to 05004F-41XXXX

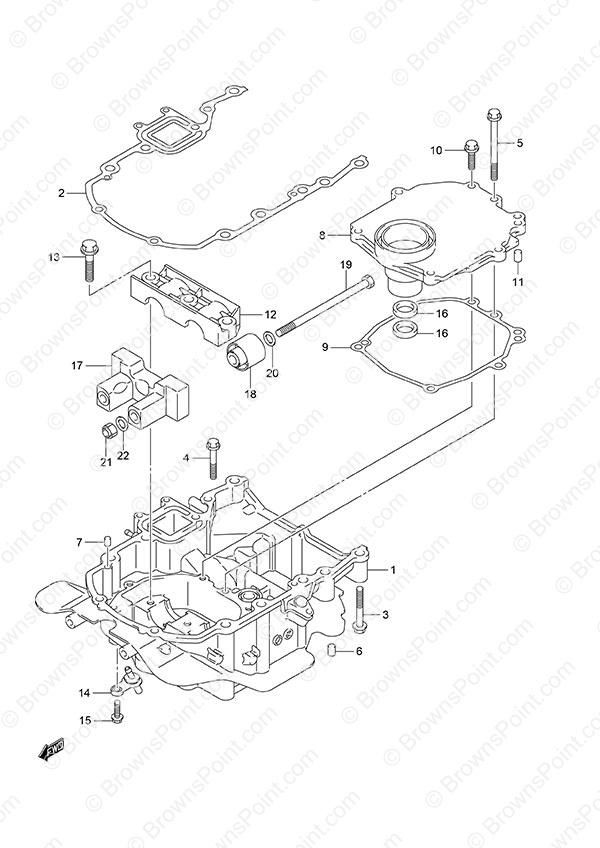

Fig. 76 - Engine Holder High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51110-88L10-0EP Engine Holder
SKU: 51110-88L10-0EP Weight: 10.000000 Brand: Price: $ 412.72 |
Engine Holder | 1 | $ 412.72 | ||
| 2 | 51211-88L00 Engine Holder Gasket
SKU: 51211-88L00 Weight: 0.200000 Brand: Price: $ 40.48 |
Engine Holder Gasket | 1 | $ 40.48 | ||
| 3 | 09116-08159 Bolt (8x55)
SKU: 09116-08159 Weight: 0.060000 Brand: Price: $ 3.89 |
Bolt (8x55) | 8 | $ 3.89 | ||
| 4 | 01550-0845A BOLT
SKU: 01550-0845A Weight: 0.060000 Brand: Price: $ 3.19 |
BOLT | 1 | $ 3.19 | ||
| 5 | 01550-0885A BOLT
SKU: 01550-0885A Weight: 0.100000 Brand: Price: $ 3.61 |
BOLT | 1 | $ 3.61 | ||
| 6 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 7 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 8 | 51122-88L00 Mount Case Cover
SKU: 51122-88L00 Weight: 0.500000 Brand: Price: $ 94.90 |
Mount Case Cover | 1 | $ 94.90 | ||
| 9 | 51123-88L00 Mount Case Cover Gasket
SKU: 51123-88L00 Weight: 0.250000 Brand: Price: $ 17.47 |
Mount Case Cover Gasket | 1 | $ 17.47 | ||
| 10 | 01550-0825A BOLT
SKU: 01550-0825A Weight: 0.100000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 11 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 12 | 54137-88L00 Upper Mount Cover
SKU: 54137-88L00 Weight: 0.500000 Brand: Price: $ 37.79 |
Upper Mount Cover | 1 | $ 37.79 | ||
| 13 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 3 | $ 6.81 | ||
| 14 | 51170-88L00 Water Indicator Bracket
SKU: 51170-88L00 Weight: 0.250000 Brand: Price: $ 10.86 |
Water Indicator Bracket | 1 | $ 10.86 | ||
| 15 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 1 | $ 2.55 | ||
| 16 | 09282-17011 Oil Seal (16.5x28x6)
SKU: 09282-17011 Weight: 0.060000 Brand: Price: $ 12.71 |
Oil Seal (16.5x28x6) | 2 | $ 12.71 | ||
| 17 | 54120-88L00 Upper Thrust Mount
SKU: 54120-88L00 Weight: 0.500000 Brand: Price: $ 81.20 |
Upper Thrust Mount | 1 | $ 81.20 | ||
| 18 | 54130-88L00 Upper Mount
SKU: 54130-88L00 Weight: 0.500000 Brand: Price: $ 65.58 |
Upper Mount | 2 | $ 65.58 | ||
| 19 | 54166-95J02 Mount Bolt
SKU: 54166-95J02 Weight: 0.250000 Brand: Price: $ 35.12 |
Mount Bolt | 2 | $ 35.12 | ||
| 20 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 | ||
| 21 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 22 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
