Suzuki DF 50AV Parts Listings - 2014
S/N 05004F-410001 to 05004F-41XXXX

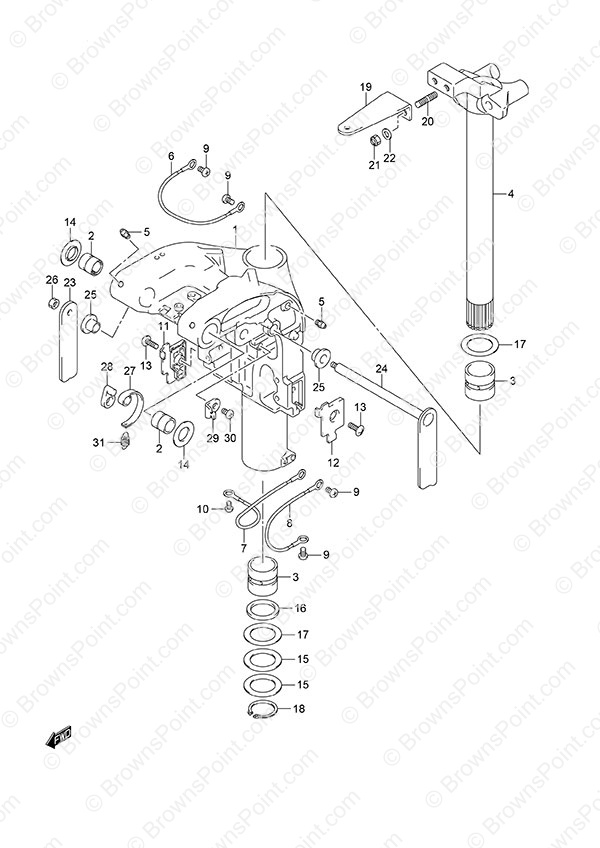

Fig. 65 - Swivel Bracket High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-88L50-0EP Swivel Bracket (S)
SKU: 43111-88L50-0EP Weight: 5.000000 Brand: Price: $ 828.53 |
Swivel Bracket (S) | 1 | $ 828.53 | ||
| 2 | 43211-88L00 Swivel Bracket Bushing
SKU: 43211-88L00 Weight: 0.200000 Brand: Price: $ 8.40 |
Swivel Bracket Bushing | 2 | $ 8.40 | ||
| 3 | 43711-97E11 Steering Bushing
SKU: 43711-97E11 Weight: 0.125000 Brand: Price: $ 9.24 |
Steering Bushing | 2 | $ 9.24 | ||
| 4 | 43750-88L32-0EP Steering Bracket (S)
SKU: 43750-88L32-0EP Weight: 5.000000 Brand: Price: $ 475.59 |
Steering Bracket (S) | 1 | $ 475.59 | ||
| 5 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 6 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Clamp to Swivel | |
| 7 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | Swivel to Mount Bracket | |
| 8 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | Swivel to Housing | |
| 9 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 4 | $ 1.96 | ||
| 10 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 | ||
| 11 | 43119-88L00 Swivel Bracket Lower Stbd Plate
SKU: 43119-88L00 Weight: 0.250000 Brand: Price: $ 7.80 |
Swivel Bracket Lower Stbd Plate | 1 | $ 7.80 | ||
| 12 | 43119-88L10 Swivel Bracket Lower Port Plate
SKU: 43119-88L10 Weight: 0.250000 Brand: Price: $ 7.80 |
Swivel Bracket Lower Port Plate | 1 | $ 7.80 | ||
| 13 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 14 | 43114-88L00 Swivel to Clamp Bracket Washer (NLA)
SKU: 43114-88L00 Weight: 0.250000 Brand: Price: $ 6.76 |
Swivel to Clamp Bracket Washer (NLA) | 2 | $ 6.76 | ||
| 15 | 09160-39003 Washer (39.5x58x0.3)
SKU: 09160-39003 Weight: 0.250000 Brand: Price: $ 3.71 |
Washer (39.5x58x0.3) | 2 | $ 3.71 | ||
| 16 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 17 | 09160-39002 Washer (39.5x58x1)
SKU: 09160-39002 Weight: 0.250000 Brand: Price: $ 3.71 |
Washer (39.5x58x1) | 2 | $ 3.71 | ||
| 18 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 19 | 43755-88L00 Steering Bracket Attachment
SKU: 43755-88L00 Weight: 0.500000 Brand: Price: $ 45.13 |
Steering Bracket Attachment | 1 | $ 45.13 | ||
| 20 | 09108-10161 Stud Bolt (10x20)
SKU: 09108-10161 Weight: 0.250000 Brand: Price: $ 9.26 |
Stud Bolt (10x20) | 2 | $ 9.26 | ||
| 21 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 22 | 09160-10141 Washer (10.5x19x2)
SKU: 09160-10141 Weight: 0.060000 Brand: Price: $ 3.41 |
Washer (10.5x19x2) | 2 | $ 3.41 | ||
| 23 | 41221-88L00-0EP Tilt Lock Stbd Lever
SKU: 41221-88L00-0EP Weight: 0.250000 Brand: Price: $ 39.90 |
Tilt Lock Stbd Lever | 1 | $ 39.90 | ||
| 24 | 41280-88L10-0EP Tilt Lock Lever - Port
SKU: 41280-88L10-0EP Weight: 1.000000 Brand: Price: $ 140.30 |
Tilt Lock Lever - Port | 1 | $ 140.30 | ||
| 25 | 41224-88L00 Tilt Lock Lever Bushing
SKU: 41224-88L00 Weight: 0.250000 Brand: Price: $ 5.05 |
Tilt Lock Lever Bushing | 2 | $ 5.05 | ||
| 26 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 27 | 41231-88L00 Tilt Lock Lever Link
SKU: 41231-88L00 Weight: 0.250000 Brand: Price: $ 8.51 |
Tilt Lock Lever Link | 1 | $ 8.51 | ||
| 28 | 41234-88L00 Tilt Lock Link Arm
SKU: 41234-88L00 Weight: 0.250000 Brand: Price: $ 5.05 |
Tilt Lock Link Arm | 1 | $ 5.05 | ||
| 29 | 45731-96312 Spring Bracket
SKU: 45731-96312 Weight: 0.100000 Brand: Price: $ 5.71 |
Spring Bracket | 1 | $ 5.71 | ||
| 30 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 31 | 09443-10043 Tilt Lock Spring
SKU: 09443-10043 Weight: 0.125000 Brand: Price: $ 2.55 |
Tilt Lock Spring | 1 | $ 2.55 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
