Suzuki DF 50AV Parts Listings - 2014
S/N 05004F-410001 to 05004F-41XXXX

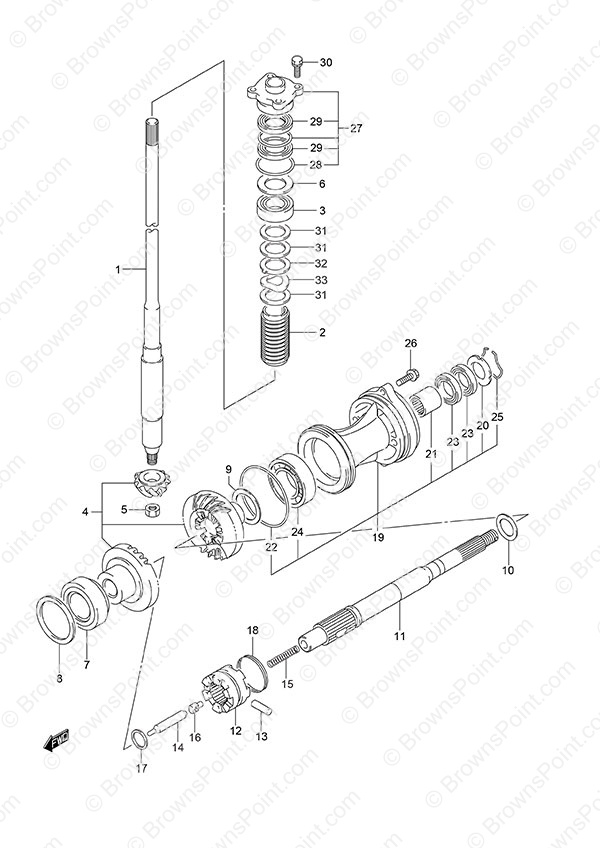

Fig. 37 - Transmission High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-88L30 Drive Shaft Assembly (L)
SKU: 57110-88L30 Weight: 10.000000 Brand: Price: $ 394.42 |
Drive Shaft Assembly (L) | 1 | $ 394.42 | Type: L | |
| 1-2 | 57110-88L40 Drive Shaft Assembly (X)
SKU: 57110-88L40 Weight: 10.000000 Brand: Price: $ 314.05 |
Drive Shaft Assembly (X) | 1 | $ 314.05 | Type: X | |
| 2 | 57133-90J02 Drive Shaft Collar
SKU: 57133-90J02 Weight: 0.250000 Brand: Price: $ 15.04 |
Drive Shaft Collar | 1 | $ 15.04 | ||
| 3 | 09265-25046 Bearing (25x52x19.25)
SKU: 09265-25046 Weight: 0.500000 Brand: Price: $ 75.79 |
Bearing (25x52x19.25) | 1 | $ 75.79 | ||
| 4 | 57300-99824 Pinion & Gear Set
SKU: 57300-99824 Weight: 5.500000 Brand: Price: $ 574.25 |
Pinion & Gear Set | 1 | $ 574.25 | ||
| 5 | 09140-14024 Nut
SKU: 09140-14024 Weight: 0.060000 Brand: Price: $ 3.04 |
Nut | 1 | $ 3.04 | ||
| 6-1 | 09181-40186 Shim (0.50)
SKU: 09181-40186 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.50) | 1 | $ 4.06 | ||
| 6-2 | 09181-41002 Shim (0.55)
SKU: 09181-41002 Weight: 0.100000 Brand: Price: $ 5.52 |
Shim (0.55) | 1 | $ 5.52 | ||
| 6-3 | 09181-41003 Shim (0.60)
SKU: 09181-41003 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.60) | 1 | $ 6.73 | ||
| 6-4 | 09181-41004 Shim (0.65)
SKU: 09181-41004 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.65) | 1 | $ 6.73 | ||
| 6-5 | 09181-41005 Shim (0.70)
SKU: 09181-41005 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.70) | 1 | $ 6.73 | ||
| 6-6 | 09181-41006 Shim (0.75)
SKU: 09181-41006 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.75) | 1 | $ 6.73 | ||
| 6-7 | 09181-40190 Shim (0.80)
SKU: 09181-40190 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.80) | 1 | $ 4.06 | ||
| 6-8 | 09181-41008 Shim (0.85)
SKU: 09181-41008 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.85) | 1 | $ 6.73 | ||
| 6-9 | 09181-41009 Shim (0.90)
SKU: 09181-41009 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.90) | 1 | $ 6.73 | ||
| 6-10 | 09181-41010 Shim (0.95)
SKU: 09181-41010 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.95) | 1 | $ 6.73 | ||
| 6-11 | 09181-40195 Shim (1.00)
SKU: 09181-40195 Weight: 0.100000 Brand: Price: $ 5.80 |
Shim (1.00) | 1 | $ 5.80 | ||
| 6-12 | 09181-41012 Shim (1.05)
SKU: 09181-41012 Weight: 0.125000 Brand: Price: $ 6.73 |
Shim (1.05) | 1 | $ 6.73 | ||
| 6-13 | 09181-41013 Shim (1.10)
SKU: 09181-41013 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (1.10) | 1 | $ 6.73 | ||
| 6-14 | 09181-41014 Shim (1.15)
SKU: 09181-41014 Weight: 0.060000 Brand: Price: $ 6.73 |
Shim (1.15) | 1 | $ 6.73 | ||
| 7 | 09265-50003 Bearing (50x85x26)
SKU: 09265-50003 Weight: 1.500000 Brand: Price: $ 164.44 |
Bearing (50x85x26) | 1 | $ 164.44 | ||
| 8-1 | 09181-50020 Shim (0.45)
SKU: 09181-50020 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.45) | 1 | $ 5.20 | ||
| 8-2 | 09181-50021 Shim (0.50)
SKU: 09181-50021 Weight: 0.060000 Brand: Price: $ 5.09 |
Shim (0.50) | 1 | $ 5.09 | ||
| 8-3 | 09181-50022 Shim (0.55)
SKU: 09181-50022 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.55) | 1 | $ 5.30 | ||
| 8-4 | 09181-50023 Shim (0.60)
SKU: 09181-50023 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.60) | 1 | $ 5.20 | ||
| 8-5 | 09181-50024 Shim (0.65)
SKU: 09181-50024 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.65) | 1 | $ 5.30 | ||
| 8-6 | 09181-50025 Shim (0.70)
SKU: 09181-50025 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.70) | 1 | $ 5.30 | ||
| 8-7 | 09181-50026 Shim (0.75)
SKU: 09181-50026 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.75) | 1 | $ 5.20 | ||
| 8-8 | 09181-50027 Shim (0.80)
SKU: 09181-50027 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.80) | 1 | $ 5.20 | ||
| 8-9 | 09181-50028 Shim (0.85)
SKU: 09181-50028 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.85) | 1 | $ 5.20 | ||
| 8-10 | 09181-50029 Shim (0.90)
SKU: 09181-50029 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.90) | 1 | $ 5.30 | ||
| 9-1 | 09181-45003 Shim (1.00)
SKU: 09181-45003 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.00) | 1 | $ 3.57 | ||
| 9-2 | 09181-45004 Shim (1.10)
SKU: 09181-45004 Weight: 0.060000 Brand: Price: $ 4.99 |
Shim (1.10) | 1 | $ 4.99 | ||
| 9-3 | 09181-45005 Shim (1.20)
SKU: 09181-45005 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.20) | 1 | $ 3.57 | ||
| 9-4 | 09181-45006 Shim (1.30)
SKU: 09181-45006 Weight: 0.060000 Brand: Price: $ 3.64 |
Shim (1.30) | 1 | $ 3.64 | ||
| 9-5 | 09181-45007 Shim (1.40)
SKU: 09181-45007 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.40) | 1 | $ 3.57 | ||
| 9-6 | 09181-45008 Shim (1.50)
SKU: 09181-45008 Weight: 0.060000 Brand: Price: $ 3.64 |
Shim (1.50) | 1 | $ 3.64 | ||
| 9-7 | 09181-45009 Shim (1.60)
SKU: 09181-45009 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.60) | 1 | $ 3.57 | ||
| 10-1 | 09181-28015 Shim (0.90)
SKU: 09181-28015 Weight: 0.060000 Brand: Price: $ 4.05 |
Shim (0.90) | 1 | $ 4.05 | ||
| 10-2 | 09181-28016 Shim (1.00)
SKU: 09181-28016 Weight: 0.060000 Brand: Price: $ 3.82 |
Shim (1.00) | 1 | $ 3.82 | ||
| 10-3 | 09181-28017 Shim (1.20)
SKU: 09181-28017 Weight: 0.060000 Brand: Price: $ 4.11 |
Shim (1.20) | 1 | $ 4.11 | ||
| 10-4 | 09181-28018 Shim (1.30)
SKU: 09181-28018 Weight: 0.060000 Brand: Price: $ 4.11 |
Shim (1.30) | 1 | $ 4.11 | ||
| 10-5 | 09181-28019 Shim (1.40)
SKU: 09181-28019 Weight: 0.060000 Brand: Price: $ 3.89 |
Shim (1.40) | 1 | $ 3.89 | ||
| 10-6 | 09181-28020 Shim (1.60)
SKU: 09181-28020 Weight: 0.060000 Brand: Price: $ 4.03 |
Shim (1.60) | 1 | $ 4.03 | ||
| 11 | 57610-88L10 Propeller Shaft Assembly
SKU: 57610-88L10 Weight: 2.000000 Brand: Price: $ 248.88 |
Propeller Shaft Assembly | 1 | $ 248.88 | ||
| 12 | 57621-88L00 Clutch Dog Shifter
SKU: 57621-88L00 Weight: 0.500000 Brand: Price: $ 116.60 |
Clutch Dog Shifter | 1 | $ 116.60 | ||
| 13 | 09202-07002 Pin (7x48)
SKU: 09202-07002 Weight: 0.060000 Brand: Price: $ 4.25 |
Pin (7x48) | 1 | $ 4.25 | ||
| 14 | 57631-99E01 Push Rod
SKU: 57631-99E01 Weight: 0.150000 Brand: Price: $ 60.00 |
Push Rod | 1 | $ 60.00 | ||
| 15 | 09440-11020 Spring
SKU: 09440-11020 Weight: 0.060000 Brand: Price: $ 2.14 |
Spring | 1 | $ 2.14 | ||
| 16 | 09209-12007 Push Pin
SKU: 09209-12007 Weight: 0.060000 Brand: Price: $ 4.67 |
Push Pin | 1 | $ 4.67 | ||
| 17 | 09181-25030 Shim (3.00)
SKU: 09181-25030 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (3.00) | 1 | $ 3.57 | ||
| 18 | 09440-49004 Clutch Dog Spring
SKU: 09440-49004 Weight: 0.060000 Brand: Price: $ 3.09 |
Clutch Dog Spring | 1 | $ 3.09 | ||
| 19 | 56120-90J02-0EP Propeller Shaft Bearing Housing
SKU: 56120-90J02-0EP Weight: 3.500000 Brand: Price: $ 407.79 |
Propeller Shaft Bearing Housing | 1 | $ 407.79 | ||
| 20 | 56123-90J00 Oil Seal Protector
SKU: 56123-90J00 Weight: 0.060000 Brand: Price: $ 9.94 |
Oil Seal Protector | 1 | $ 9.94 | ||
| 21 | 09263-28047 Bearing (28x37x30)
SKU: 09263-28047 Weight: 0.180000 Brand: Price: $ 47.26 |
Bearing (28x37x30) | 1 | $ 47.26 | ||
| 22 | 09280-97001 O-Ring
SKU: 09280-97001 Weight: 0.060000 Brand: Price: $ 4.24 |
O-Ring | 1 | $ 4.24 | ||
| 23 | 09282-28002 Oil Seal
SKU: 09282-28002 Weight: 0.060000 Brand: Price: $ 9.07 |
Oil Seal | 2 | $ 9.07 | ||
| 24 | 08113-62090 B1 45X85X19 BEA
SKU: 08113-62090 Weight: 0.920000 Brand: Price: $ 60.69 |
B1 45X85X19 BEA | 1 | $ 60.69 | ||
| 25 | 09387-52001 Set Ring (SUS)
SKU: 09387-52001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | ||
| 26 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 27 | 56130-87E00 Drive Shaft Housing
SKU: 56130-87E00 Weight: 0.300000 Brand: Price: $ 95.36 |
Drive Shaft Housing | 1 | $ 95.36 | ||
| 28 | 09280-46004 O-Ring
SKU: 09280-46004 Weight: 0.060000 Brand: Price: $ 3.14 |
O-Ring | 1 | $ 3.14 | ||
| 29 | 09282-22007 Oil Seal (22x36x6)
SKU: 09282-22007 Weight: 0.060000 Brand: Price: $ 13.97 |
Oil Seal (22x36x6) | 2 | $ 13.97 | ||
| 30 | 09117-08110 Bolt (8x25)
SKU: 09117-08110 Weight: 0.060000 Brand: Price: $ 5.04 |
Bolt (8x25) | 4 | $ 5.04 | ||
| 31 | 09181-31001 Washer (31x46x2.0)
SKU: 09181-31001 Weight: 0.060000 Brand: Price: $ 5.64 |
Washer (31x46x2.0) | 3 | $ 5.64 | ||
| 32 | 09169-31001 Washer
SKU: 09169-31001 Weight: 0.060000 Brand: Price: $ 5.51 |
Washer | 1 | $ 5.51 | ||
| 33 | 09164-31001 Wave Washer
SKU: 09164-31001 Weight: 0.060000 Brand: Price: $ 6.16 |
Wave Washer | 1 | $ 6.16 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
