Suzuki DF 50AV Parts Listings - 2014
S/N 05004F-410001 to 05004F-41XXXX

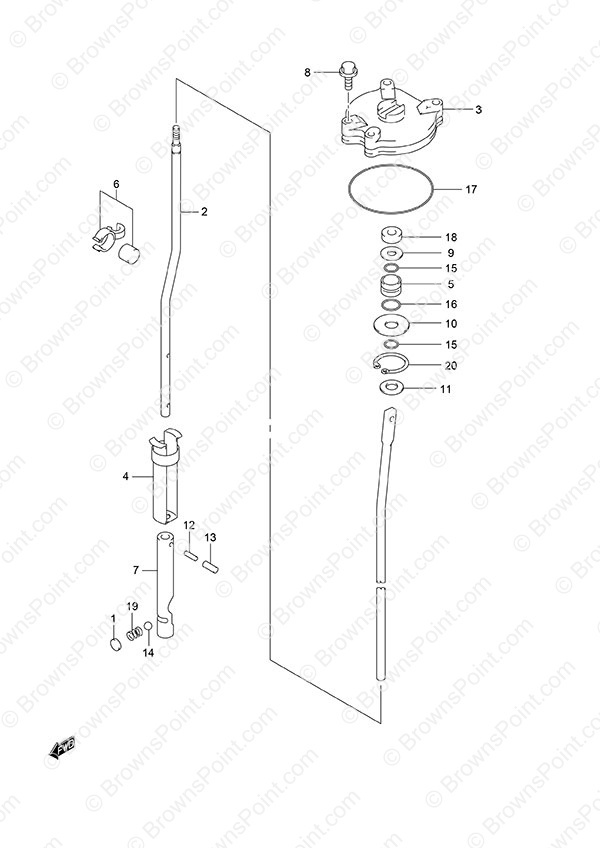

Fig. 32 - Shift Rod High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21121-93300 Clutch Notch Plate
SKU: 21121-93300 Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Notch Plate | 1 | $ 1.46 | ||
| 2 | 25111-88L30 Shift Rod (L)
SKU: 25111-88L30 Weight: 0.250000 Brand: Price: $ 68.37 |
Shift Rod (L) | 1 | $ 68.37 | ||
| 3 | 25141-99E03 Shift Rod Guide Housing
SKU: 25141-99E03 Weight: 0.300000 Brand: Price: $ 34.92 |
Shift Rod Guide Housing | 1 | $ 34.92 | ||
| 4 | 25205-94501 Shift Rod Spring Collar
SKU: 25205-94501 Weight: 0.100000 Brand: Price: $ 13.26 |
Shift Rod Spring Collar | 1 | $ 13.26 | ||
| 5 | 25211-94501 Shift Rod Guide
SKU: 25211-94501 Weight: 0.060000 Brand: Price: $ 11.45 |
Shift Rod Guide | 1 | $ 11.45 | ||
| 6 | 25230-94300 Gear Case Magnet Set
SKU: 25230-94300 Weight: 0.060000 Brand: Price: $ 17.66 |
Gear Case Magnet Set | 1 | $ 17.66 | ||
| 7 | 25311-94510 Shift Cam
SKU: 25311-94510 Weight: 0.250000 Brand: Price: $ 49.00 |
Shift Cam | 1 | $ 49.00 | ||
| 8 | 09117-06031 Bolt (6x20)
SKU: 09117-06031 Weight: 0.060000 Brand: Price: $ 3.53 |
Bolt (6x20) | 3 | $ 3.53 | ||
| 9 | 09160-09015 Washer (9x19x1.0)
SKU: 09160-09015 Weight: 0.060000 Brand: Price: $ 2.06 |
Washer (9x19x1.0) | 1 | $ 2.06 | ||
| 10 | 09160-09010 Washer (9x30x1.6)
SKU: 09160-09010 Weight: 0.100000 Brand: Price: $ 1.86 |
Washer (9x30x1.6) | 1 | $ 1.86 | ||
| 11 | 09160-08122 Washer (8.5x18x3.2)
SKU: 09160-08122 Weight: 0.100000 Brand: Price: $ 2.39 |
Washer (8.5x18x3.2) | 1 | $ 2.39 | ||
| 12 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 2 | $ 1.07 | ||
| 13 | 09205-03021 Spring Pin (3.5x12)
SKU: 09205-03021 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (3.5x12) | 2 | $ 1.07 | ||
| 14 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 15 | 09280-08008 O-Ring
SKU: 09280-08008 Weight: 0.060000 Brand: Price: $ 1.07 |
O-Ring | 2 | $ 1.07 | ||
| 16 | 09280-15003 O-Ring
SKU: 09280-15003 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 1 | $ 1.78 | ||
| 17 | 09280-69001 O-Ring
SKU: 09280-69001 Weight: 0.060000 Brand: Price: $ 3.73 |
O-Ring | 1 | $ 3.73 | ||
| 18 | 09284-08003 Dust Seal
SKU: 09284-08003 Weight: 0.060000 Brand: Price: $ 3.36 |
Dust Seal | 1 | $ 3.36 | ||
| 19 | 09440-07033 Cam Notch Spring
SKU: 09440-07033 Weight: 0.060000 Brand: Price: $ 1.51 |
Cam Notch Spring | 1 | $ 1.51 | ||
| 20 | 08331-41309 Circlip
SKU: 08331-41309 Weight: 0.060000 Brand: Price: $ 2.45 |
Circlip | 1 | $ 2.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
