Suzuki DF 40A Parts Listings - 2014
S/N 04003F-410001 to 04003F-41XXXX

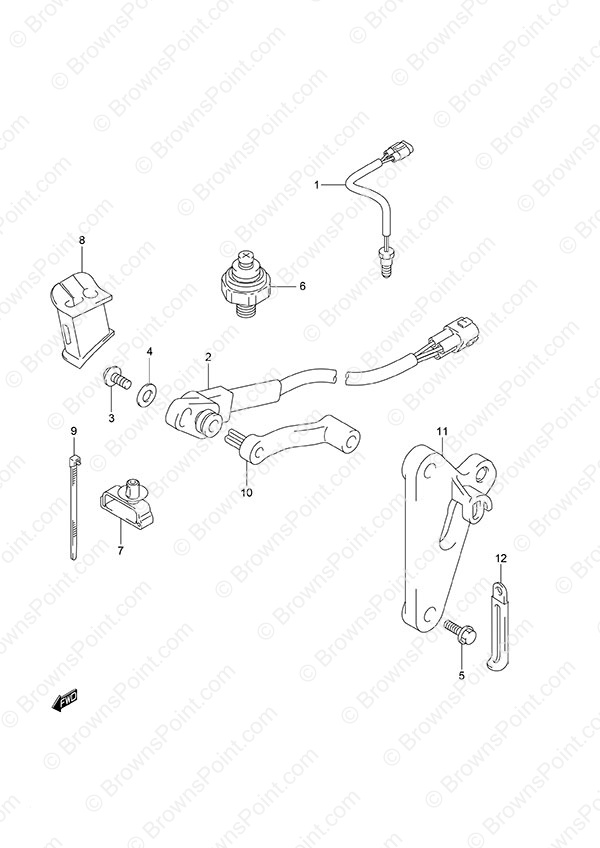

Fig. 42 - Sensor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | Cylinder | |
| 2 | 34840-98J03 Trim Sensor Assembly
SKU: 34840-98J03 Weight: 0.150000 Brand: Price: $ 178.23 |
Trim Sensor Assembly | 1 | $ 178.23 | ||
| 3 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 1 | $ 1.97 | ||
| 4 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 5 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 6 | 37820-99E02 Oil Pressure Switch
SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.10 |
Oil Pressure Switch | 1 | $ 24.10 | ||
| 7 | 09403-07340 Clamp
SKU: 09403-07340 Weight: 0.100000 Brand: Price: $ 3.90 |
Clamp | 1 | $ 3.90 | ||
| 8 | 36656-88L00 PTT Cable Grommet
SKU: 36656-88L00 Weight: 0.250000 Brand: Price: $ 5.75 |
PTT Cable Grommet | 1 | $ 5.75 | ||
| 9 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 3 | $ 3.09 | ||
| 10 | 34841-88L01 Trim Sensor Lever
SKU: 34841-88L01 Weight: 0.060000 Brand: Price: $ 4.97 |
Trim Sensor Lever | 1 | $ 4.97 | ||
| 11 | 34845-88L02 Trim Sender Bracket
SKU: 34845-88L02 Weight: 0.250000 Brand: Price: $ 9.53 |
Trim Sender Bracket | 1 | $ 9.53 | ||
| 12 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
