Suzuki DF 40A Parts Listings - 2014
S/N 04003F-410001 to 04003F-41XXXX

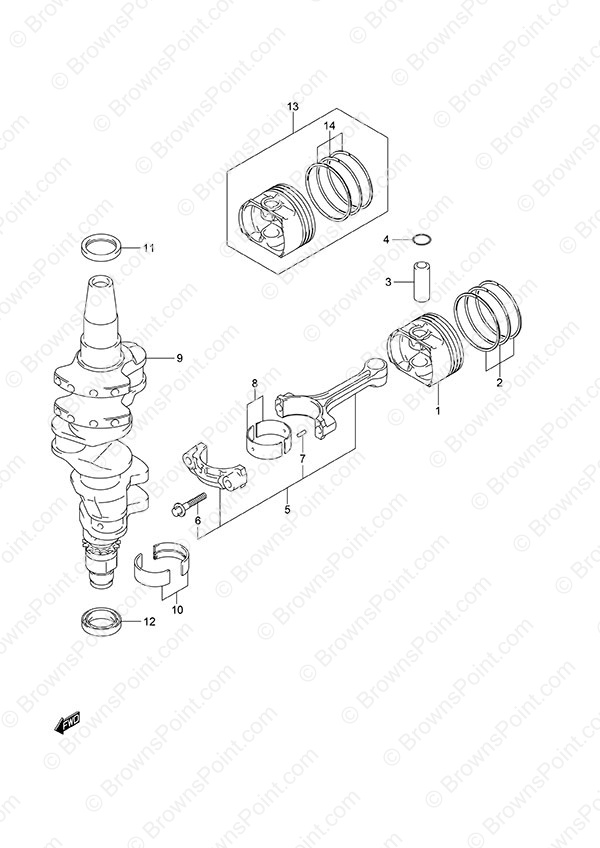

Fig. 8 - Cranshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-88L00 Piston
SKU: 12111-88L00 Weight: 1.000000 Brand: Price: $ 69.51 |
Piston | 3 | $ 69.51 | ||
| 2 | 12140-88L00 Replaced by 12140-88L01
SKU: 12140-88L00 Weight: 0.250000 Brand: Price: $ 43.38 |
Replaced by 12140-88L01 | 3 | $ 43.38 | ||
| 3 | 12151-54A50 Piston Pin
SKU: 12151-54A50 Weight: 0.100000 Brand: Price: $ 11.96 |
Piston Pin | 3 | $ 11.96 | ||
| 4 | 09381-18002 Piston Pin Circlip
SKU: 09381-18002 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 6 | $ 1.44 | ||
| 5 | 12160-88L01 Connecting Rod Assembly
SKU: 12160-88L01 Weight: 1.000000 Brand: Price: $ 126.51 |
Connecting Rod Assembly | 3 | $ 126.51 | ||
| 6 | 12163-69J00 Connecting Rod Bolt
SKU: 12163-69J00 Weight: 0.100000 Brand: Price: $ 2.65 |
Connecting Rod Bolt | 6 | $ 2.65 | ||
| 7 | 04221-04089 PIN 4X8
SKU: 04221-04089 Weight: 0.060000 Brand: Price: $ 1.11 |
PIN 4X8 | 6 | $ 1.11 | ||
| 8-1 | 12100-51810-0A0 Connrod Bearing Set (Green)
SKU: 12100-51810-0A0 Weight: 0.250000 Brand: Price: $ 21.11 |
Connrod Bearing Set (Green) | 3 | $ 21.11 | ||
| 8-2 | 12100-51810-0B0 Connrod Bearing Set (Black)
SKU: 12100-51810-0B0 Weight: 0.250000 Brand: Price: $ 21.11 |
Connrod Bearing Set (Black) | 3 | $ 21.11 | ||
| 8-3 | 12100-51810-0C0 Connrod Bearing Set (Non)
SKU: 12100-51810-0C0 Weight: 0.250000 Brand: Price: $ 21.11 |
Connrod Bearing Set (Non) | 3 | $ 21.11 | ||
| 8-4 | 12100-51810-0D0 Connrod Bearing Set (Yellow)
SKU: 12100-51810-0D0 Weight: 0.250000 Brand: Price: $ 21.11 |
Connrod Bearing Set (Yellow) | 3 | $ 21.11 | ||
| 8-5 | 12100-51810-0E0 Connrod Bearing Set (Blue)
SKU: 12100-51810-0E0 Weight: 0.250000 Brand: Price: $ 16.39 |
Connrod Bearing Set (Blue) | 3 | $ 16.39 | ||
| 9 | 12220-88L00 Crankshaft
SKU: 12220-88L00 Weight: 10.000000 Brand: Price: $ 1,177.28 |
Crankshaft | 1 | $ 1,177.28 | ||
| 10-1 | 12340-75FA0-0A0 Crankshaft Bearing Set (Green)
SKU: 12340-75FA0-0A0 Weight: 0.100000 Brand: Price: $ 25.89 |
Crankshaft Bearing Set (Green) | 4 | $ 25.89 | ||
| 10-2 | 12340-75FA0-0B0 Crankshaft Bearing Set (Black)
SKU: 12340-75FA0-0B0 Weight: 0.100000 Brand: Price: $ 23.26 |
Crankshaft Bearing Set (Black) | 4 | $ 23.26 | ||
| 10-3 | 12340-75F00-0C0 Crankshaft Bearing Set (Non)
SKU: 12340-75F00-0C0 Weight: 0.100000 Brand: Price: $ 23.26 |
Crankshaft Bearing Set (Non) | 4 | $ 23.26 | ||
| 10-4 | 12340-75F00-0D0 Crankshaft Bearing Set (Yellow)
SKU: 12340-75F00-0D0 Weight: 0.100000 Brand: Price: $ 23.26 |
Crankshaft Bearing Set (Yellow) | 4 | $ 23.26 | ||
| 10-5 | 12340-75F00-0E0 Discontinued
SKU: 12340-75F00-0E0 Weight: 0.100000 Brand: Price: $ 18.06 |
Discontinued | 4 | $ 18.06 | ||
| 11 | 09283-37005 Oil Seal (36.5x49x6)
SKU: 09283-37005 Weight: 0.125000 Brand: Price: $ 20.04 |
Oil Seal (36.5x49x6) | 1 | $ 20.04 | ||
| 12 | 12281-87J00 Oil Seal (39.3x44x7)
SKU: 12281-87J00 Weight: 0.060000 Brand: Price: $ 16.42 |
Oil Seal (39.3x44x7) | 1 | $ 16.42 | ||
| 13 | 12100-88L01-050 Piston & Ring Set (OS:0.50)
SKU: 12100-88L01-050 Weight: 1.000000 Brand: Price: $ 134.12 |
Piston & Ring Set (OS:0.50) | 3 | $ 134.12 | Optional | |
| 14 | 12140-88L00-050 Piston Ring Set (OS:0.50) (NLA)
SKU: 12140-88L00-050 Weight: 0.250000 Brand: Price: $ 43.38 |
Piston Ring Set (OS:0.50) (NLA) | 3 | $ 43.38 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
