Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

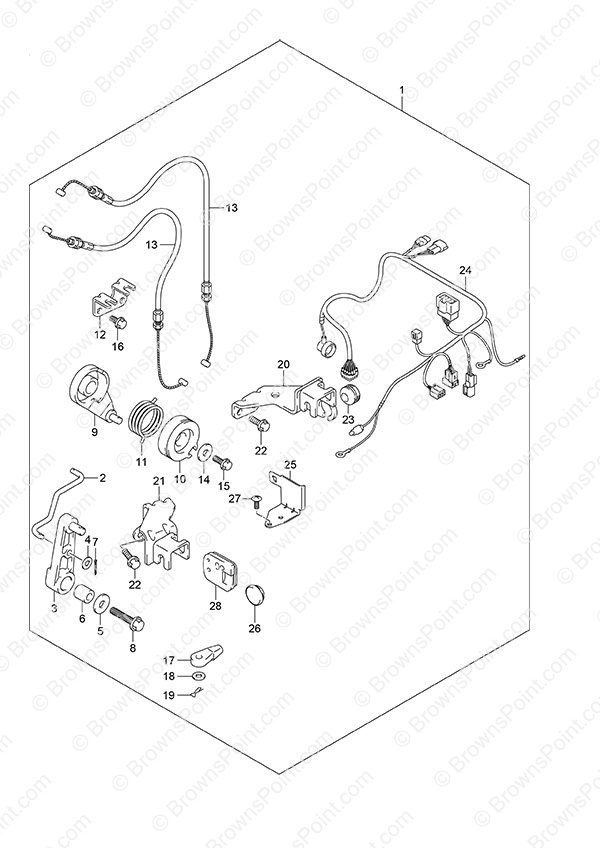

Fig. 81 - Opt: Remocon Parts Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67130-95J02 Remote Control Parts Kit
SKU: 67130-95J02 Weight: 5.000000 Brand: Price: $ 199.43 |
Remote Control Parts Kit | 1 | $ 199.43 | ||
| 2 | 21241-95J00 Clutch Lever Link
SKU: 21241-95J00 Weight: 0.100000 Brand: Price: $ 12.90 |
Clutch Lever Link | 1 | $ 12.90 | ||
| 3 | 23210-95J00 Clutch Lever
SKU: 23210-95J00 Weight: 0.060000 Brand: Price: $ 16.85 |
Clutch Lever | 1 | $ 16.85 | ||
| 4 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 2 | $ 1.70 | ||
| 5 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 | ||
| 6 | 09180-06230 Spacer (6.2x12.6x12.5)
SKU: 09180-06230 Weight: 0.060000 Brand: Price: $ 6.41 |
Spacer (6.2x12.6x12.5) | 1 | $ 6.41 | ||
| 7 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 8 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9 | 19120-95J00 Throttle Control Lever
SKU: 19120-95J00 Weight: 0.100000 Brand: Price: $ 20.14 |
Throttle Control Lever | 1 | $ 20.14 | ||
| 10 | 19122-95J00 Throttle Interlink Lever
SKU: 19122-95J00 Weight: 0.100000 Brand: Price: $ 5.90 |
Throttle Interlink Lever | 1 | $ 5.90 | ||
| 11 | 19185-95J00 Throttle Lever Spring
SKU: 19185-95J00 Weight: 0.100000 Brand: Price: $ 7.28 |
Throttle Lever Spring | 1 | $ 7.28 | ||
| 12 | 19761-95J00 Throttle Cable Stay
SKU: 19761-95J00 Weight: 0.100000 Brand: Price: $ 8.36 |
Throttle Cable Stay | 1 | $ 8.36 | ||
| 13 | 63610-95J12 Throttle Cable Assembly
SKU: 63610-95J12 Weight: 0.250000 Brand: Price: $ 19.33 |
Throttle Cable Assembly | 2 | $ 19.33 | ||
| 14 | 09160-06047 Washer (6.2x20x2)
SKU: 09160-06047 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer (6.2x20x2) | 1 | $ 1.91 | ||
| 14 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 16 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 17 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 2 | $ 7.75 | ||
| 18 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 19 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 2 | $ 1.91 | ||
| 20 | 67340-95J00 Remocon Cable Holder (NLA)
SKU: 67340-95J00 Weight: 0.100000 Brand: Price: $ 27.09 |
Remocon Cable Holder (NLA) | 1 | $ 27.09 | Clutch | |
| 21 | 67350-95J01 Remocon Cable Holder
SKU: 67350-95J01 Weight: 0.250000 Brand: Price: $ 30.46 |
Remocon Cable Holder | 1 | $ 30.46 | Throttle | |
| 22 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 4 | $ 1.78 | ||
| 23 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 1 | $ 1.26 | ||
| 24 | 36610-95J20 Wiring Harness Assembly (NLA)
SKU: 36610-95J20 Weight: 5.000000 Brand: Price: $ 175.38 |
Wiring Harness Assembly (NLA) | 1 | $ 175.38 | ||
| 25 | 36616-95J00 Connector Holder (NLA)
SKU: 36616-95J00 Weight: 0.100000 Brand: Price: $ 5.40 |
Connector Holder (NLA) | 1 | $ 5.40 | ||
| 26 | 37163-95J00 Starting Switch Plug (NLA)
SKU: 37163-95J00 Weight: 0.100000 Brand: Price: $ 2.64 |
Starting Switch Plug (NLA) | 1 | $ 2.64 | ||
| 27 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 1 | $ 1.38 | ||
| 28 | 61124-95J20 Cable Grommet (NLA)
SKU: 61124-95J20 Weight: 0.100000 Brand: Price: $ 20.05 |
Cable Grommet (NLA) | 1 | $ 20.05 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
