Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

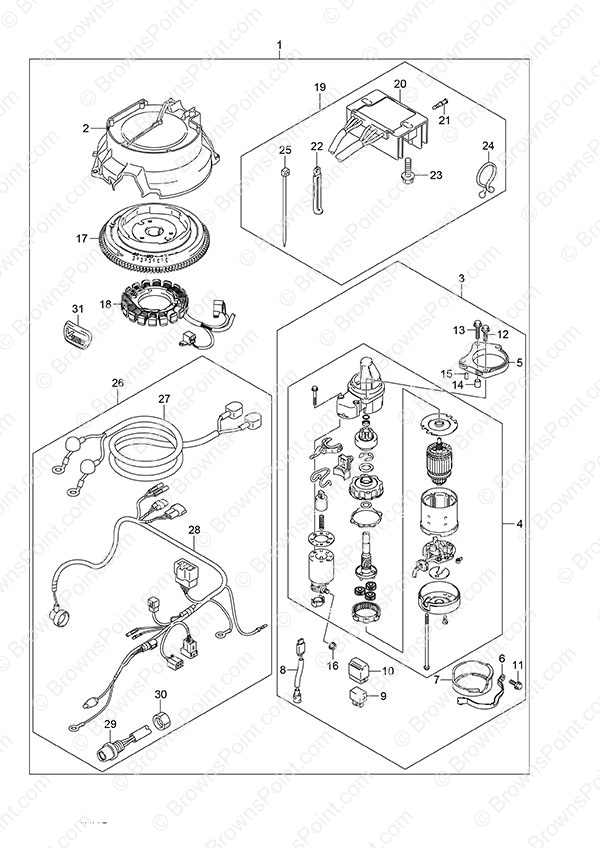

Fig. 80 - Opt: Starting Motor Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31000-95J10 Electric Starter Set
SKU: 31000-95J10 Weight: 20.000000 Brand: Price: $ 1,272.39 |
Electric Starter Set | 1 | $ 1,272.39 | ||
| 2 | 11511-95J01 Magneto Cover
SKU: 11511-95J01 Weight: 0.100000 Brand: Price: $ 40.32 |
Magneto Cover | 1 | $ 40.32 | ||
| 3 | 31101-95J00 Starter Motor Set (NLA)
SKU: 31101-95J00 Weight: 0.100000 Brand: Price: $ 873.47 |
Starter Motor Set (NLA) | 1 | $ 873.47 | ||
| 4 | 31100-95J01 Starter Motor Assembly
SKU: 31100-95J01 Weight: 0.100000 Brand: Price: $ 838.32 |
Starter Motor Assembly | 1 | $ 838.32 | ||
| 5 | 31911-95J00 Starting Motor Bracket (NLA)
SKU: 31911-95J00 Weight: 0.100000 Brand: Price: $ 35.35 |
Starting Motor Bracket (NLA) | 1 | $ 35.35 | ||
| 6 | 31912-95J00 Starting Motor Band (NLA)
SKU: 31912-95J00 Weight: 0.100000 Brand: Price: $ 6.42 |
Starting Motor Band (NLA) | 1 | $ 6.42 | ||
| 7 | 31918-95J00 Starter Damper (NLA)
SKU: 31918-95J00 Weight: 0.100000 Brand: Price: $ 7.19 |
Starter Damper (NLA) | 1 | $ 7.19 | ||
| 8 | 36645-94J00 Wire Lead (NLA)
SKU: 36645-94J00 Weight: 0.500000 Brand: Price: $ 10.03 |
Wire Lead (NLA) | 1 | $ 10.03 | ||
| 9 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 10 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | ||
| 11 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 12 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 13 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 2 | $ 3.59 | ||
| 14 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 1 | $ 1.78 | ||
| 15 | 04221-06129 PIN 6X12
SKU: 04221-06129 Weight: 0.060000 Brand: Price: $ 1.49 |
PIN 6X12 | 1 | $ 1.49 | ||
| 16 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 17 | 32102-95J00 Flywheel (NLA)
SKU: 32102-95J00 Weight: 0.100000 Brand: Price: $ 449.73 |
Flywheel (NLA) | 1 | $ 449.73 | ||
| 18 | 32120-95J00 Stator & Pulser Coil
SKU: 32120-95J00 Weight: 2.000000 Brand: Price: $ 408.05 |
Stator & Pulser Coil | 1 | $ 408.05 | ||
| 19 | 32801-95J01 Rectifier/Regulator Set (NLA)
SKU: 32801-95J01 Weight: 1.000000 Brand: Price: $ 167.36 |
Rectifier/Regulator Set (NLA) | 1 | $ 167.36 | ||
| 20 | 32800-95J01 Rectifier & Regulator Assembly
SKU: 32800-95J01 Weight: 0.100000 Brand: Price: $ 222.23 |
Rectifier & Regulator Assembly | 1 | $ 222.23 | ||
| 21 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 22 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 23 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 24 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 25 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 26 | 33800-95J10 Starting Cable Set
SKU: 33800-95J10 Weight: 5.000000 Brand: Price: $ 0.00 |
Starting Cable Set | 1 | $ 0.00 | ||
| 27 | 33810-95J00 Starter Motor Cable Assembly
SKU: 33810-95J00 Weight: 0.100000 Brand: Price: $ 118.36 |
Starter Motor Cable Assembly | 1 | $ 118.36 | ||
| 28 | 36610-95J01 Wiring Harness Assembly
SKU: 36610-95J01 Weight: 5.000000 Brand: Price: $ 183.22 |
Wiring Harness Assembly | 1 | $ 183.22 | ||
| 29 | 37161-89E13 Start Switch Assembly
SKU: 37161-89E13 Weight: 0.250000 Brand: Price: $ 36.22 |
Start Switch Assembly | 1 | $ 36.22 | ||
| 30 | 09159-14032 Nut
SKU: 09159-14032 Weight: 0.060000 Brand: Price: $ 0.00 |
Nut | 1 | $ 0.00 | ||
| 31 | 61465-95J00 Engine Cover Emblem (NLA)
SKU: 61465-95J00 Weight: 0.100000 Brand: Price: $ 10.96 |
Engine Cover Emblem (NLA) | 1 | $ 10.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
