Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

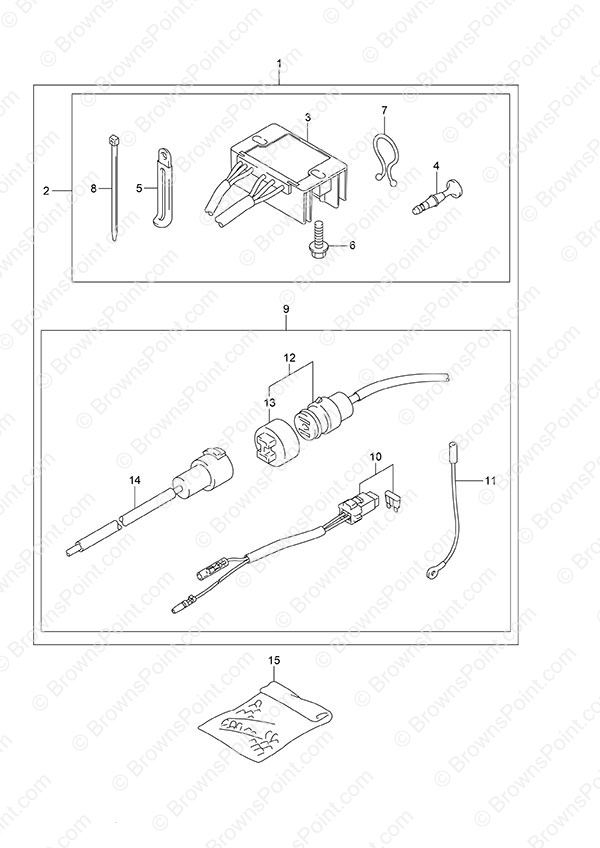

Fig. 78 - Opt: Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32000-95J01 Battery Charging Kit
SKU: 32000-95J01 Weight: 4.000000 Brand: Price: $ 181.49 |
Battery Charging Kit | 1 | $ 181.49 | ||
| 2 | 32801-95J01 Rectifier/Regulator Set (NLA)
SKU: 32801-95J01 Weight: 1.000000 Brand: Price: $ 167.36 |
Rectifier/Regulator Set (NLA) | 1 | $ 167.36 | ||
| 3 | 32800-95J01 Rectifier & Regulator Assembly
SKU: 32800-95J01 Weight: 0.100000 Brand: Price: $ 222.23 |
Rectifier & Regulator Assembly | 1 | $ 222.23 | ||
| 4 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 5 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 6 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 7 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 8 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 9 | 39600-95J00 Receptacle Set (NLA)
SKU: 39600-95J00 Weight: 0.100000 Brand: Price: $ 64.06 |
Receptacle Set (NLA) | 1 | $ 64.06 | ||
| 10 | 36740-95J00 Fuse Case Assembly (NLA)
SKU: 36740-95J00 Weight: 0.100000 Brand: Price: $ 45.10 |
Fuse Case Assembly (NLA) | 1 | $ 45.10 | ||
| 11 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | ||
| 12 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 13 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 14 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 15 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
