Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

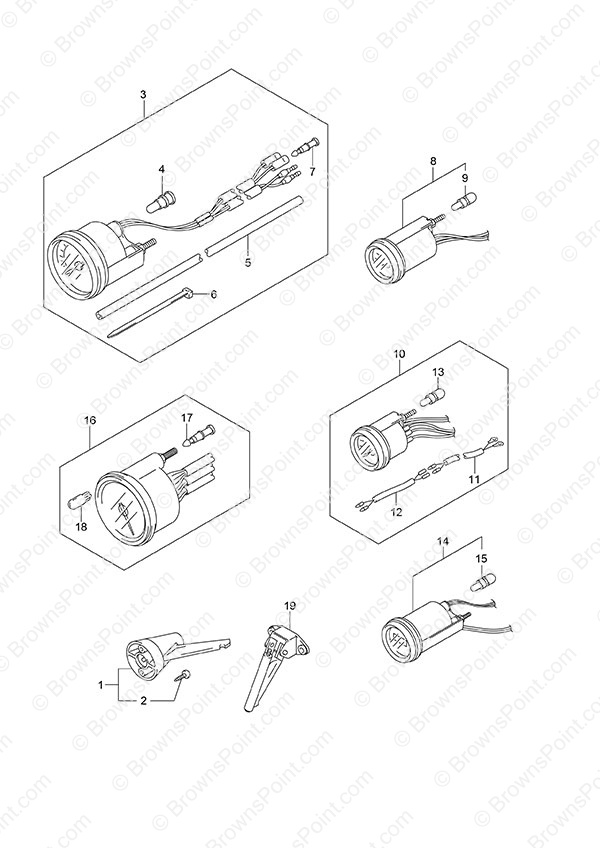

Fig. 67 - Opt: Meter Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34190-95500 Speedometer Sensor (NLA)
SKU: 34190-95500 Weight: 0.100000 Brand: Price: $ 42.08 |
Speedometer Sensor (NLA) | 1 | $ 42.08 | ||
| 2 | 03112-06303 Screw (NLA)
SKU: 03112-06303 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (NLA) | 2 | $ 2.20 | ||
| 3-1 | 34100-93J22 Black Speedometer 0-50 MPH
SKU: 34100-93J22 Weight: 1.680000 Brand: Price: $ 184.74 |
Black Speedometer 0-50 MPH | 1 | $ 184.74 | ||
| 3-2 | 34100-93J33 White Speedometer 0-50 MPH
SKU: 34100-93J33 Weight: 1.700000 Brand: Price: $ 184.74 |
White Speedometer 0-50 MPH | 1 | $ 184.74 | ||
| 4 | 09471-12028 Bulb (12v, 3.4w)
SKU: 09471-12028 Weight: 0.100000 Brand: Price: $ 1.99 |
Bulb (12v, 3.4w) | 1 | $ 1.99 | ||
| 5 | 34191-92E00 Water Pressure Tubing
SKU: 34191-92E00 Weight: 0.300000 Brand: Price: $ 33.64 |
Water Pressure Tubing | 1 | $ 33.64 | ||
| 6 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 7 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 8-1 | 34600-93J02 Black Voltmeter
SKU: 34600-93J02 Weight: 1.500000 Brand: Price: $ 115.67 |
Black Voltmeter | 1 | $ 115.67 | ||
| 8-2 | 34600-93J13 White Voltmeter
SKU: 34600-93J13 Weight: 1.500000 Brand: Price: $ 115.67 |
White Voltmeter | 1 | $ 115.67 | ||
| 9 | 09471-12103 Bulb (12v, 3.4w)
SKU: 09471-12103 Weight: 0.100000 Brand: Price: $ 3.90 |
Bulb (12v, 3.4w) | 1 | $ 3.90 | ||
| 10-1 | 34300-93J02 Black Fuel Gauge
SKU: 34300-93J02 Weight: 3.000000 Brand: Price: $ 173.44 |
Black Fuel Gauge | 1 | $ 173.44 | ||
| 10-2 | 34300-93J13 White Fuel Gauge
SKU: 34300-93J13 Weight: 3.000000 Brand: Price: $ 173.44 |
White Fuel Gauge | 1 | $ 173.44 | ||
| 11 | 34310-92E00 Fuel Gauge Lead (NLA)
SKU: 34310-92E00 Weight: 0.100000 Brand: Price: $ 41.14 |
Fuel Gauge Lead (NLA) | 1 | $ 41.14 | ||
| 12 | 34360-92E00 Adapter Harness (NLA)
SKU: 34360-92E00 Weight: 1.000000 Brand: Price: $ 31.27 |
Adapter Harness (NLA) | 1 | $ 31.27 | ||
| 13 | 09471-12103 Bulb (12v, 3.4w)
SKU: 09471-12103 Weight: 0.100000 Brand: Price: $ 3.90 |
Bulb (12v, 3.4w) | 1 | $ 3.90 | ||
| 14-1 | 34500-93J02 Black Hour Meter
SKU: 34500-93J02 Weight: 1.040000 Brand: Price: $ 164.43 |
Black Hour Meter | 1 | $ 164.43 | ||
| 14-2 | 34500-93J13 White Hour Meter
SKU: 34500-93J13 Weight: 1.020000 Brand: Price: $ 164.43 |
White Hour Meter | 1 | $ 164.43 | ||
| 15 | 09471-12103 Bulb (12v, 3.4w)
SKU: 09471-12103 Weight: 0.100000 Brand: Price: $ 3.90 |
Bulb (12v, 3.4w) | 1 | $ 3.90 | ||
| 16-1 | 34200-93J22 Black Tachometer
SKU: 34200-93J22 Weight: 1.220000 Brand: Price: $ 209.11 |
Black Tachometer | 1 | $ 209.11 | ||
| 16-2 | 34200-93J34 White Tachometer
SKU: 34200-93J34 Weight: 1.500000 Brand: Price: $ 209.11 |
White Tachometer | 1 | $ 209.11 | ||
| 17 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 4 | $ 1.31 | ||
| 18 | 09471-12028 Bulb (12v, 3.4w)
SKU: 09471-12028 Weight: 0.100000 Brand: Price: $ 1.99 |
Bulb (12v, 3.4w) | 1 | $ 1.99 | ||
| 19 | 34190-87D00 Speedometer Sensor
SKU: 34190-87D00 Weight: 0.350000 Brand: Price: $ 44.58 |
Speedometer Sensor | 1 | $ 44.58 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
