Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

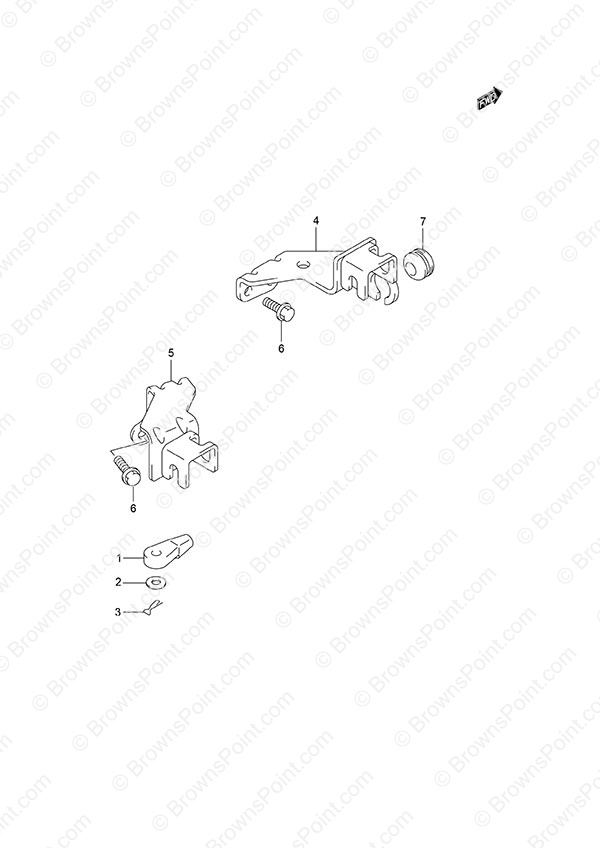

Fig. 64 - Remocon Cable Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 2 | $ 7.75 | ||
| 2 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 3 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 2 | $ 1.91 | ||
| 4 | 67340-95J00 Remocon Cable Holder (NLA)
SKU: 67340-95J00 Weight: 0.100000 Brand: Price: $ 27.09 |
Remocon Cable Holder (NLA) | 1 | $ 27.09 | Clutch | |
| 5 | 67350-95J01 Remocon Cable Holder
SKU: 67350-95J01 Weight: 0.250000 Brand: Price: $ 30.46 |
Remocon Cable Holder | 1 | $ 30.46 | Throttle | |
| 6 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 4 | $ 1.78 | ||
| 7 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 1 | $ 1.26 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
