Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

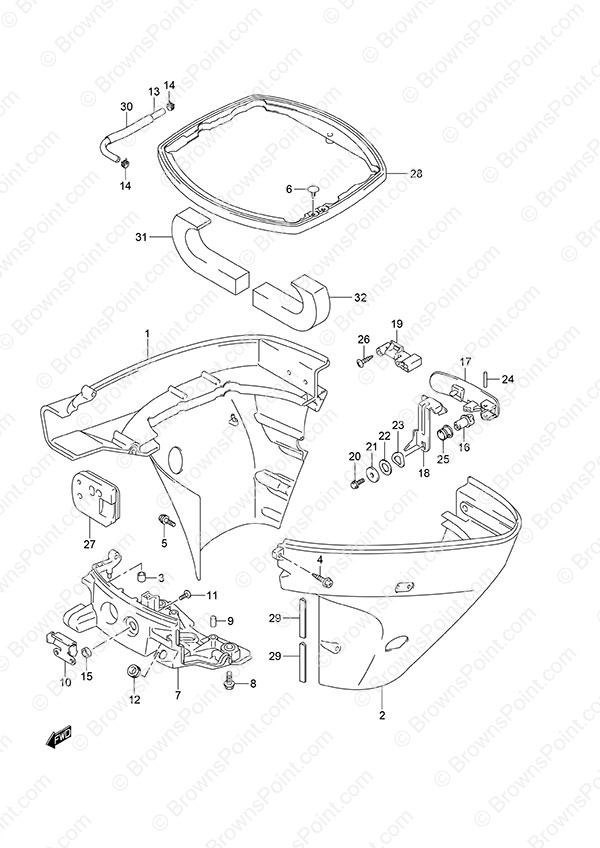

Fig. 56 - Side Cover Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61810-95J10-0EP Stbd Side Cover
SKU: 61810-95J10-0EP Weight: 5.000000 Brand: Price: $ 294.30 |
Stbd Side Cover | 1 | $ 294.30 | ||
| 2 | 61821-95J30-0EP Port Side Cover
SKU: 61821-95J30-0EP Weight: 5.000000 Brand: Price: $ 0.00 |
Port Side Cover | 1 | $ 0.00 | ||
| 3 | 09320-05016 Cushion (NLA)
SKU: 09320-05016 Weight: 0.200000 Brand: Price: $ 2.46 |
Cushion (NLA) | 1 | $ 2.46 | ||
| 4 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 6 | $ 1.96 | ||
| 5 | 09136-06149 Screw (6x55)
SKU: 09136-06149 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw (6x55) | 1 | $ 3.71 | ||
| 7 | 61831-95J00-0EP Front Panel (NLA)
SKU: 61831-95J00-0EP Weight: 0.100000 Brand: Price: $ 165.22 |
Front Panel (NLA) | 1 | $ 165.22 | ||
| 8 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 2 | $ 7.44 | ||
| 9 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 10 | 61412-95J00 Instrument Panel Hook (NLA)
SKU: 61412-95J00 Weight: 0.100000 Brand: Price: $ 11.83 |
Instrument Panel Hook (NLA) | 1 | $ 11.83 | ||
| 11 | 02142-05127 SCREW
SKU: 02142-05127 Weight: 0.200000 Brand: Price: $ 1.97 |
SCREW | 2 | $ 1.97 | ||
| 12 | 09308-12012 Grommet (NLA)
SKU: 09308-12012 Weight: 0.100000 Brand: Price: $ 1.87 |
Grommet (NLA) | 1 | $ 1.87 | ||
| 13 | 61157-89J00 Water Indicator Hose
SKU: 61157-89J00 Weight: 0.100000 Brand: Price: $ 6.56 |
Water Indicator Hose | 1 | $ 6.56 | ||
| 14 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 15 | 09320-13024 Cushion (NLA)
SKU: 09320-13024 Weight: 0.100000 Brand: Price: $ 1.59 |
Cushion (NLA) | 1 | $ 1.59 | ||
| 16 | 61632-93J00 Engine Cover Hook Shaft
SKU: 61632-93J00 Weight: 0.125000 Brand: Price: $ 37.52 |
Engine Cover Hook Shaft | 1 | $ 37.52 | ||
| 17 | 61633-95J01 Rear Hook Lever
SKU: 61633-95J01 Weight: 0.250000 Brand: Price: $ 19.91 |
Rear Hook Lever | 1 | $ 19.91 | ||
| 18 | 61641-95J00 Engine Cover Hook
SKU: 61641-95J00 Weight: 0.100000 Brand: Price: $ 19.50 |
Engine Cover Hook | 1 | $ 19.50 | ||
| 19 | 61673-95J00 Hook Lever Latch
SKU: 61673-95J00 Weight: 0.100000 Brand: Price: $ 8.65 |
Hook Lever Latch | 1 | $ 8.65 | ||
| 20 | 09103-06092 Bolt (6x15)
SKU: 09103-06092 Weight: 0.060000 Brand: Price: $ 1.86 |
Bolt (6x15) | 1 | $ 1.86 | ||
| 21 | 09160-06160 Washer (6.5x24x4)
SKU: 09160-06160 Weight: 0.100000 Brand: Price: $ 5.01 |
Washer (6.5x24x4) | 1 | $ 5.01 | ||
| 22 | 09160-13008 Washer (13.5x31.5x0.5)
SKU: 09160-13008 Weight: 0.060000 Brand: Price: $ 3.02 |
Washer (13.5x31.5x0.5) | 1 | $ 3.02 | ||
| 23 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 1 | $ 2.04 | ||
| 24 | 09202-04022 Hook Lever Pin
SKU: 09202-04022 Weight: 0.060000 Brand: Price: $ 2.82 |
Hook Lever Pin | 1 | $ 2.82 | ||
| 25 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 1 | $ 2.81 | ||
| 26 | 03542-06209 SCREW
SKU: 03542-06209 Weight: 0.100000 Brand: Price: $ 2.24 |
SCREW | 2 | $ 2.24 | ||
| 27 | 61124-95J20 Cable Grommet (NLA)
SKU: 61124-95J20 Weight: 0.100000 Brand: Price: $ 20.05 |
Cable Grommet (NLA) | 1 | $ 20.05 | ||
| 28 | 61134-95J00 Side Cover Seal
SKU: 61134-95J00 Weight: 1.000000 Brand: Price: $ 45.42 |
Side Cover Seal | 1 | $ 45.42 | ||
| 29 | 61135-95J00 Side Cover Cushion
SKU: 61135-95J00 Weight: 0.100000 Brand: Price: $ 6.64 |
Side Cover Cushion | 2 | $ 6.64 | ||
| 30 | 18498-90J01 Hose Protector
SKU: 18498-90J01 Weight: 0.250000 Brand: Price: $ 4.37 |
Hose Protector | 1 | $ 4.37 | L:290->140 | |
| 31 | 54144-95J00 Upper Mount Stbd Seal (NLA)
SKU: 54144-95J00 Weight: 0.100000 Brand: Price: $ 9.70 |
Upper Mount Stbd Seal (NLA) | 1 | $ 9.70 | ||
| 32 | 54145-95J00 Upper Mount Port Seal (NLA)
SKU: 54145-95J00 Weight: 0.100000 Brand: Price: $ 9.70 |
Upper Mount Port Seal (NLA) | 1 | $ 9.70 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
