Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

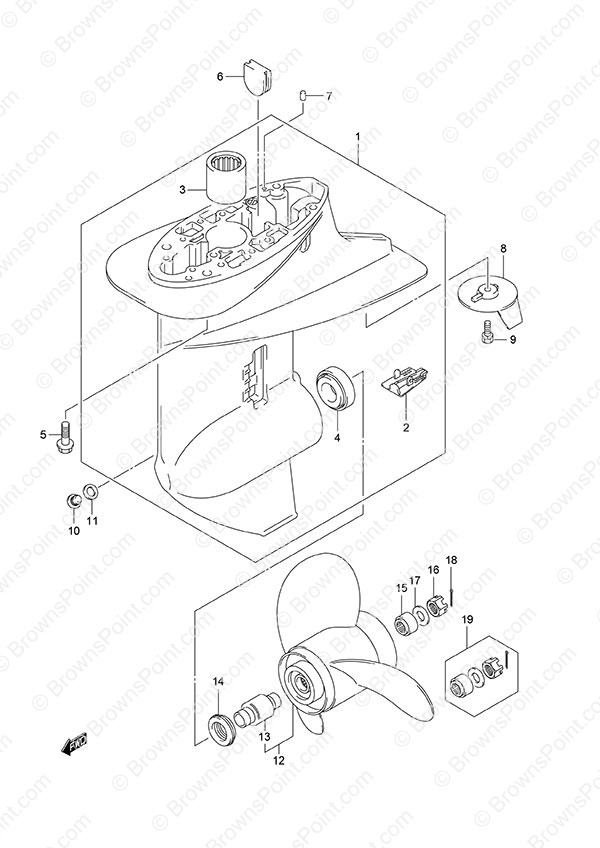

Fig. 54 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-95J00-0EP Gear Case Housing
SKU: 55100-95J00-0EP Weight: 15.000000 Brand: Price: $ 933.72 |
Gear Case Housing | 1 | $ 933.72 | ||
| 2 | 55114-96310 Gear Case Under Cover
SKU: 55114-96310 Weight: 5.000000 Brand: Price: $ 7.52 |
Gear Case Under Cover | 1 | $ 7.52 | ||
| 3 | 09263-20046 Bearing (20.6x27x25.4)
SKU: 09263-20046 Weight: 0.100000 Brand: Price: $ 70.16 |
Bearing (20.6x27x25.4) | 1 | $ 70.16 | ||
| 4 | 09265-25015 Bearing (25x52x16.25)
SKU: 09265-25015 Weight: 0.360000 Brand: Price: $ 53.81 |
Bearing (25x52x16.25) | 1 | $ 53.81 | ||
| 5 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 4 | $ 4.66 | ||
| 6 | 17566-87D12 GROMMET
SKU: 17566-87D12 Weight: 0.000000 Brand: Price: $ 6.66 |
GROMMET | 1 | $ 6.66 | ||
| 7 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 8 | 55125-96310 Trim Tab Anode
SKU: 55125-96310 Weight: 0.300000 Brand: Price: $ 12.28 |
Trim Tab Anode | 1 | $ 12.28 | ||
| 9 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 10 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 11 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 2 | $ 1.60 | ||
| 12-1 | 58100-96472-019 P1001 Propeller 3x10-1/4x10
SKU: 58100-96472-019 Weight: 4.000000 Brand: Price: $ 194.80 |
P1001 Propeller 3x10-1/4x10 | 1 | $ 194.80 | ||
| 12-2 | 58100-91L50-019 P1101 Propeller 3x10-1/4x11
SKU: 58100-91L50-019 Weight: 3.250000 Brand: Price: $ 194.80 |
P1101 Propeller 3x10-1/4x11 | 1 | $ 194.80 | ||
| 12-3 | 58100-96482-019 P1201 Propeller 3x10-1/4x12
SKU: 58100-96482-019 Weight: 2.880000 Brand: Price: $ 194.80 |
P1201 Propeller 3x10-1/4x12 | 1 | $ 194.80 | ||
| 12-4 | 58100-96492-019 P1311 Propeller 3x10-1/4x13
SKU: 58100-96492-019 Weight: 3.000000 Brand: Price: $ 194.80 |
P1311 Propeller 3x10-1/4x13 | 1 | $ 194.80 | ||
| 12-5 | 58100-95D01-019 P1401 Propeller 3x10-1/4x14
SKU: 58100-95D01-019 Weight: 2.600000 Brand: Price: $ 194.80 |
P1401 Propeller 3x10-1/4x14 | 1 | $ 194.80 | ||
| 12-6 | 58100-96372-019 P911 Propeller 3x10-1/4x9
SKU: 58100-96372-019 Weight: 8.000000 Brand: Price: $ 216.93 |
P911 Propeller 3x10-1/4x9 | 1 | $ 216.93 | ||
| 12-7 | 58100-96462-019 P1501 Propeller 3x10-1/4x15
SKU: 58100-96462-019 Weight: 3.000000 Brand: Price: $ 194.80 |
P1501 Propeller 3x10-1/4x15 | 1 | $ 194.80 | ||
| 13 | 58120-96401 Type P Propeller Bushing
SKU: 58120-96401 Weight: 0.300000 Brand: Price: $ 45.01 |
Type P Propeller Bushing | 1 | $ 45.01 | ||
| 14 | 57632-95J00 Propeller Stopper Bushing
SKU: 57632-95J00 Weight: 0.220000 Brand: Price: $ 71.77 |
Propeller Stopper Bushing | 1 | $ 71.77 | ||
| 15 | 57633-96300 Propeller Nut Spacer
SKU: 57633-96300 Weight: 0.180000 Brand: Price: $ 20.17 |
Propeller Nut Spacer | 1 | $ 20.17 | ||
| 16 | 09141-14008 Nut 14mm
SKU: 09141-14008 Weight: 0.060000 Brand: Price: $ 10.70 |
Nut 14mm | 1 | $ 10.70 | ||
| 17 | 09160-14028 Propeller Nut Washer
SKU: 09160-14028 Weight: 0.060000 Brand: Price: $ 3.14 |
Propeller Nut Washer | 1 | $ 3.14 | ||
| 18 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 19 | 57630-96300 Propeller Hardware Kit DT20/30/25c/30c
DF25/DF30
SKU: 57630-96300 Weight: 0.240000 Brand: Price: $ 16.14 |
Propeller Hardware Kit DT20/30/25c/30c DF25/DF30 | 1 | $ 16.14 | Optional | |
| 20 | 25700-95J00 Gear Case Seal Kit - DF25 V-Twin
SKU: 25700-95J00 Weight: 0.120000 Brand: Price: $ 15.94 |
Gear Case Seal Kit - DF25 V-Twin | 1 | $ 15.94 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
