Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

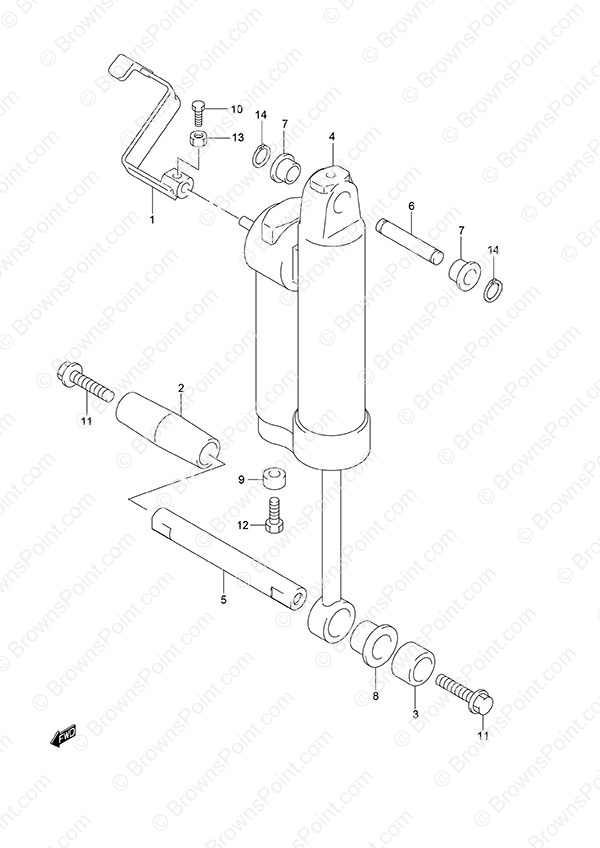

Fig. 50 - Gas Cylinder Gas Assist Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 45260-89J00 Release Lever (NLA)
SKU: 45260-89J00 Weight: 0.100000 Brand: Price: $ 41.26 |
Release Lever (NLA) | 1 | $ 41.26 | ||
| 2 | 47225-89J00 Tilt Cylinder Lower Stdb Collar (NLA)
SKU: 47225-89J00 Weight: 0.100000 Brand: Price: $ 12.60 |
Tilt Cylinder Lower Stdb Collar (NLA) | 1 | $ 12.60 | ||
| 3 | 47226-89J00 Tilt Cylinder Lower Port Collar (NLA)
SKU: 47226-89J00 Weight: 0.100000 Brand: Price: $ 4.96 |
Tilt Cylinder Lower Port Collar (NLA) | 1 | $ 4.96 | ||
| 4 | 47400-95J00 Gas Cylinder Assembly
SKU: 47400-95J00 Weight: 5.000000 Brand: Price: $ 867.63 |
Gas Cylinder Assembly | 1 | $ 867.63 | ||
| 5 | 48121-89J10 Tilt Cylinder Lower Shaft
SKU: 48121-89J10 Weight: 0.100000 Brand: Price: $ 79.35 |
Tilt Cylinder Lower Shaft | 1 | $ 79.35 | ||
| 6 | 48321-89J11 Tilt Cylinder Upper Shaft
SKU: 48321-89J11 Weight: 0.100000 Brand: Price: $ 18.30 |
Tilt Cylinder Upper Shaft | 1 | $ 18.30 | ||
| 7 | 48325-89J00 Tilt Cylinder Upper Bushing
SKU: 48325-89J00 Weight: 0.125000 Brand: Price: $ 3.65 |
Tilt Cylinder Upper Bushing | 2 | $ 3.65 | ||
| 8 | 48326-89J00 Tilt Cylinder Lower Bushing
SKU: 48326-89J00 Weight: 0.100000 Brand: Price: $ 6.97 |
Tilt Cylinder Lower Bushing | 1 | $ 6.97 | ||
| 9 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 2 | $ 11.01 | ||
| 12 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 13 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 14 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
