Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

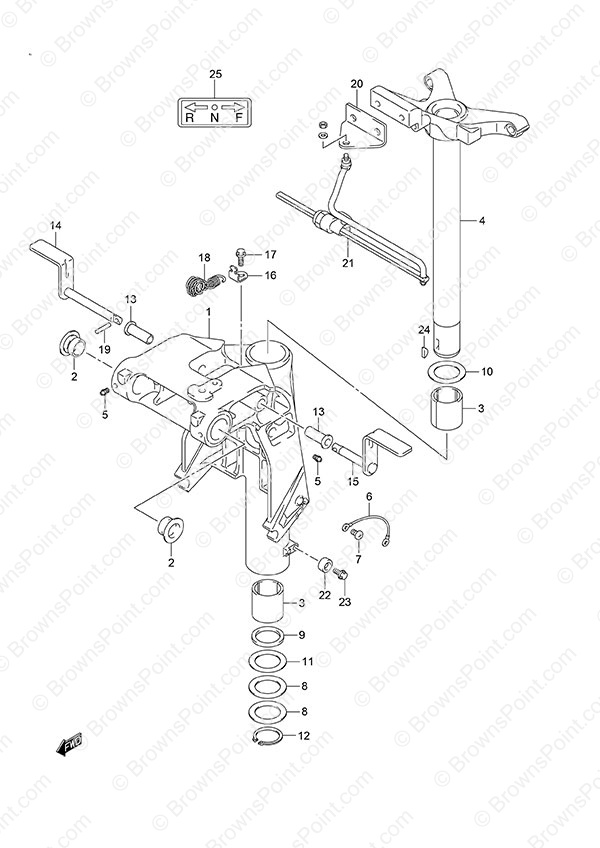

Fig. 49 - Swivel Bracket Gas Assist Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-88L61-0EP Swivel Bracket
SKU: 43111-88L61-0EP Weight: 5.000000 Brand: Price: $ 0.00 |
Swivel Bracket | 1 | $ 0.00 | ||
| 2 | 43211-87J00 Swivel Bracket Bushing
SKU: 43211-87J00 Weight: 0.100000 Brand: Price: $ 9.18 |
Swivel Bracket Bushing | 2 | $ 9.18 | ||
| 3 | 43711-89J10 Steering Bushing
SKU: 43711-89J10 Weight: 0.100000 Brand: Price: $ 14.81 |
Steering Bushing | 2 | $ 14.81 | ||
| 4 | 43750-95J50-0EP Steering Bracket (L)
SKU: 43750-95J50-0EP Weight: 5.000000 Brand: Price: $ 0.00 |
Steering Bracket (L) | 1 | $ 0.00 | ||
| 5 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 6 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 7 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 8 | 09160-39003 Washer (39.5x58x0.3)
SKU: 09160-39003 Weight: 0.250000 Brand: Price: $ 3.71 |
Washer (39.5x58x0.3) | 2 | $ 3.71 | ||
| 9 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 10 | 43721-95J00 Steering Upper Plate (NLA)
SKU: 43721-95J00 Weight: 0.100000 Brand: Price: $ 5.81 |
Steering Upper Plate (NLA) | 1 | $ 5.81 | ||
| 11 | 09160-39002 Washer (39.5x58x1)
SKU: 09160-39002 Weight: 0.250000 Brand: Price: $ 3.71 |
Washer (39.5x58x1) | 1 | $ 3.71 | ||
| 12 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 13 | 41226-97E00 Bushing
SKU: 41226-97E00 Weight: 0.060000 Brand: Price: $ 5.11 |
Bushing | 2 | $ 5.11 | ||
| 14 | 41270-89J10 Stbd Tilt Lock Lever
SKU: 41270-89J10 Weight: 0.350000 Brand: Price: $ 36.22 |
Stbd Tilt Lock Lever | 1 | $ 36.22 | ||
| 15 | 41280-89J04 Port Tilt Lock Lever
SKU: 41280-89J04 Weight: 0.500000 Brand: Price: $ 41.58 |
Port Tilt Lock Lever | 1 | $ 41.58 | ||
| 16 | 45731-96312 Spring Bracket
SKU: 45731-96312 Weight: 0.100000 Brand: Price: $ 5.71 |
Spring Bracket | 1 | $ 5.71 | ||
| 17 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 1 | $ 1.78 | ||
| 18 | 41230-97E10 Tilt Lock Spring
SKU: 41230-97E10 Weight: 0.125000 Brand: Price: $ 24.07 |
Tilt Lock Spring | 1 | $ 24.07 | ||
| 19 | 09205-03012 Spring Pin (3x16)
SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 1 | $ 1.99 | ||
| 20 | 43755-95J10 Steering Bracket Attachment
SKU: 43755-95J10 Weight: 0.500000 Brand: Price: $ 0.00 |
Steering Bracket Attachment | 1 | $ 0.00 | ||
| 21 | 43770-95J00 Steering Adjuster Assembly
SKU: 43770-95J00 Weight: 5.000000 Brand: Price: $ 0.00 |
Steering Adjuster Assembly | 1 | $ 0.00 | ||
| 22 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 23 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 24 | 09420-05003 Key (NLA)
SKU: 09420-05003 Weight: 0.100000 Brand: Price: $ 2.00 |
Key (NLA) | 1 | $ 2.00 | ||
| 25 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
