Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

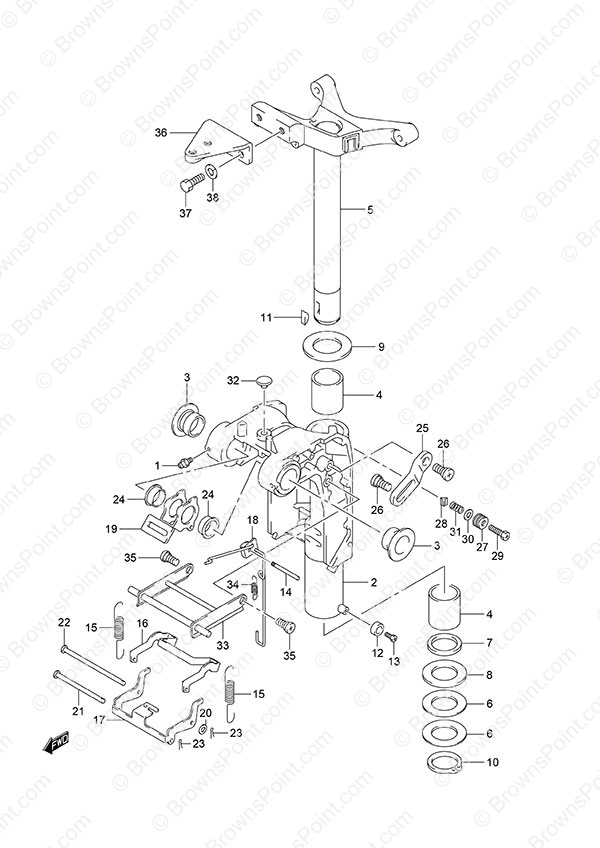

Fig. 48 - Swivel Bracket Remote Control

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 22511-99011 Grease Nipple 4 $ 3.36
2-1 43111-95J00-0EP Swivel Bracket (S) (NLA) 1 $ 361.15

Not Available

w/Transom (S)
2-2 43111-95J10-0EP Swivel Bracket (L) 1 $ 456.11
w/Transom (L)
3 43211-87J00 Swivel Bracket Bushing 2 $ 9.18
4 43711-89J10 Steering Bushing 2 $ 14.81
5-1 43750-95J21-0EP Steering Bracket (S) 1 $ 382.35

Not Available

w/Transom (S)
5-2 43750-95J31-0EP Steering Bracket (L) 1 $ 296.15

Not Available

w/Transom (L)
6 09181-39001 Shim (39.5x64x0.3) 0 $ 3.83
7 09282-39001 Oil Seal (38x51x5) 1 $ 6.18
8 09160-39001 Washer (39.5x64x1.0) 1 $ 3.56
9 43721-95J00 Steering Upper Plate (NLA) 1 $ 5.81

Not Available

10 09380-38003 Circlip 1 $ 5.97
11 09420-05003 Key (NLA) 1 $ 2.00

Not Available

12 55321-87J01 Aluminum Anode 1 $ 7.36
13 09103-06281 Bolt (6x14) 1 $ 2.99
14 41225-94502 Release Arm Pin 1 $ 5.64

Not Available

15 45211-95J00 Reverse Lock Spring 2 $ 14.39
16 45231-95J00 Reverse Lock Arm 1 $ 18.53
17 45241-95J00 Reverse Lock Arm Link 1 $ 20.55

Not Available

18 45250-95J00 Release Link 1 $ 18.53
19 45261-95J00 Release Lever 1 $ 18.38
20 09160-06082 Washer (6.5x13x1.0) 1 $ 1.44
21 09200-06069 Reverse Lock Arm Pin 1 $ 13.70

Not Available

22 09200-06070 Reverse Lock Arm Link Pin 1 $ 12.19

Not Available

23 09204-01002 Cotter Pin 2 $ 1.70
24 09306-22006 Bushing 2 $ 1.26
25 41223-95J00 Tilt Stop Arm (NLA) 2 $ 21.58

Not Available

26 09106-10078 Bolt (10x28.5) 4 $ 8.05
27 43412-93901 COVER,STEERING 1 $ 2.60
28 43417-95J00 Steering Adjuster (NLA) 1 $ 9.62

Not Available

29 09100-08227 Bolt (8x27) (NLA) 1 $ 2.53

Not Available

30 09160-08082 Washer (8.5x16x1.2) 1 $ 1.63
31 29440-93J00 Steering Adjuster Spring 1 $ 2.24
33 45710-95J01 Shallow Water Drive Arm 1 $ 53.37
34 45722-95J00 Shallow Water Drive Arm Spring 1 $ 6.56
35 09106-10078 Bolt (10x28.5) 2 $ 8.05
36 43755-95J01 Steering Bracket Attachment 1 $ 40.67

Not Available

37 09100-10270 Bolt (10x25) 2 $ 16.00
38 09162-10005 Lock Washer 2 $ 1.86

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
