Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

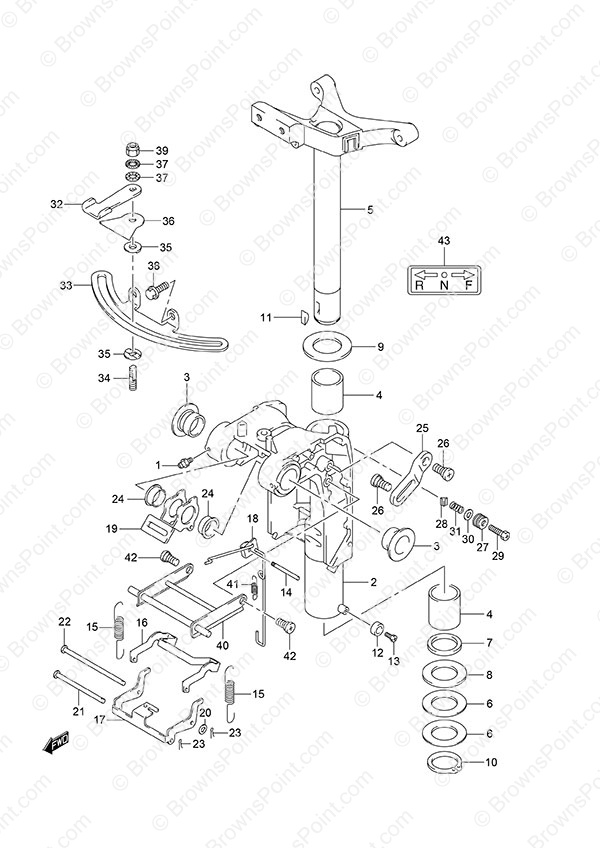

Fig. 47 - Swivel Bracket Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 2-1 | 43111-95J00-0EP Swivel Bracket (S) (NLA)
SKU: 43111-95J00-0EP Weight: 0.100000 Brand: Price: $ 361.15 |
Swivel Bracket (S) (NLA) | 1 | $ 361.15 | w/Transom (S) | |
| 2-2 | 43111-95J10-0EP Swivel Bracket (L)
SKU: 43111-95J10-0EP Weight: 5.000000 Brand: Price: $ 456.11 |
Swivel Bracket (L) | 1 | $ 456.11 | w/Transom (L) | |
| 3 | 43211-87J00 Swivel Bracket Bushing
SKU: 43211-87J00 Weight: 0.100000 Brand: Price: $ 9.18 |
Swivel Bracket Bushing | 2 | $ 9.18 | ||
| 4 | 43711-89J10 Steering Bushing
SKU: 43711-89J10 Weight: 0.100000 Brand: Price: $ 14.81 |
Steering Bushing | 2 | $ 14.81 | ||
| 5-1 | 43750-95J21-0EP Steering Bracket (S)
SKU: 43750-95J21-0EP Weight: 5.000000 Brand: Price: $ 382.35 |
Steering Bracket (S) | 1 | $ 382.35 | w/Transom (S) | |
| 5-2 | 43750-95J31-0EP Steering Bracket (L)
SKU: 43750-95J31-0EP Weight: 5.000000 Brand: Price: $ 296.15 |
Steering Bracket (L) | 1 | $ 296.15 | w/Transom (L) | |
| 6 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 0 | $ 3.83 | ||
| 7 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 8 | 09160-39001 Washer (39.5x64x1.0)
SKU: 09160-39001 Weight: 0.060000 Brand: Price: $ 3.56 |
Washer (39.5x64x1.0) | 1 | $ 3.56 | ||
| 9 | 43721-95J00 Steering Upper Plate (NLA)
SKU: 43721-95J00 Weight: 0.100000 Brand: Price: $ 5.81 |
Steering Upper Plate (NLA) | 1 | $ 5.81 | ||
| 10 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 11 | 09420-05003 Key (NLA)
SKU: 09420-05003 Weight: 0.100000 Brand: Price: $ 2.00 |
Key (NLA) | 1 | $ 2.00 | ||
| 12 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 13 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 14 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
| 15 | 45211-95J00 Reverse Lock Spring
SKU: 45211-95J00 Weight: 0.100000 Brand: Price: $ 14.39 |
Reverse Lock Spring | 2 | $ 14.39 | ||
| 16 | 45231-95J00 Reverse Lock Arm
SKU: 45231-95J00 Weight: 0.250000 Brand: Price: $ 18.53 |
Reverse Lock Arm | 1 | $ 18.53 | ||
| 17 | 45241-95J00 Reverse Lock Arm Link
SKU: 45241-95J00 Weight: 0.200000 Brand: Price: $ 20.55 |
Reverse Lock Arm Link | 1 | $ 20.55 | ||
| 18 | 45250-95J00 Release Link
SKU: 45250-95J00 Weight: 0.100000 Brand: Price: $ 18.53 |
Release Link | 1 | $ 18.53 | ||
| 19 | 45261-95J00 Release Lever
SKU: 45261-95J00 Weight: 0.100000 Brand: Price: $ 18.38 |
Release Lever | 1 | $ 18.38 | ||
| 20 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 21 | 09200-06069 Reverse Lock Arm Pin
SKU: 09200-06069 Weight: 0.060000 Brand: Price: $ 13.70 |
Reverse Lock Arm Pin | 1 | $ 13.70 | ||
| 22 | 09200-06070 Reverse Lock Arm Link Pin
SKU: 09200-06070 Weight: 0.125000 Brand: Price: $ 12.19 |
Reverse Lock Arm Link Pin | 1 | $ 12.19 | ||
| 23 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 24 | 09306-22006 Bushing
SKU: 09306-22006 Weight: 0.060000 Brand: Price: $ 1.26 |
Bushing | 2 | $ 1.26 | ||
| 25 | 41223-95J00 Tilt Stop Arm (NLA)
SKU: 41223-95J00 Weight: 0.100000 Brand: Price: $ 21.58 |
Tilt Stop Arm (NLA) | 2 | $ 21.58 | ||
| 26 | 09106-10078 Bolt (10x28.5)
SKU: 09106-10078 Weight: 0.100000 Brand: Price: $ 8.05 |
Bolt (10x28.5) | 4 | $ 8.05 | ||
| 27 | 43412-93900 Steering Adjuster Cover
SKU: 43412-93900 Weight: 0.100000 Brand: Price: $ 3.76 |
Steering Adjuster Cover | 1 | $ 3.76 | ||
| 28 | 43417-95J00 Steering Adjuster (NLA)
SKU: 43417-95J00 Weight: 0.100000 Brand: Price: $ 9.62 |
Steering Adjuster (NLA) | 1 | $ 9.62 | ||
| 29 | 09100-08227 Bolt (8x27) (NLA)
SKU: 09100-08227 Weight: 0.100000 Brand: Price: $ 2.53 |
Bolt (8x27) (NLA) | 1 | $ 2.53 | ||
| 30 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 31 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 32 | 43411-95J00 Steering Adjuster Lever (NLA)
SKU: 43411-95J00 Weight: 0.100000 Brand: Price: $ 13.77 |
Steering Adjuster Lever (NLA) | 1 | $ 13.77 | ||
| 33 | 43415-95J00 Steering Adjuster Plate
SKU: 43415-95J00 Weight: 0.100000 Brand: Price: $ 37.47 |
Steering Adjuster Plate | 1 | $ 37.47 | ||
| 34 | 43512-95J00 Steering Adjuster Shaft (NLA)
SKU: 43512-95J00 Weight: 0.100000 Brand: Price: $ 10.84 |
Steering Adjuster Shaft (NLA) | 1 | $ 10.84 | ||
| 35 | 43514-95J00 Steering Adjuster Washer
SKU: 43514-95J00 Weight: 0.100000 Brand: Price: $ 3.71 |
Steering Adjuster Washer | 2 | $ 3.71 | ||
| 36 | 43514-95J10 Steering Adjuster Friction Plate (NLA)
SKU: 43514-95J10 Weight: 0.100000 Brand: Price: $ 4.56 |
Steering Adjuster Friction Plate (NLA) | 1 | $ 4.56 | ||
| 37 | 43516-89J00 Steering Adjuster Washer
SKU: 43516-89J00 Weight: 0.100000 Brand: Price: $ 15.32 |
Steering Adjuster Washer | 2 | $ 15.32 | ||
| 38 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 2 | $ 7.44 | ||
| 39 | 09159-08131 Steering Adjuster Nut (NLA)
SKU: 09159-08131 Weight: 0.100000 Brand: Price: $ 4.34 |
Steering Adjuster Nut (NLA) | 1 | $ 4.34 | ||
| 40 | 45710-95J01 Shallow Water Drive Arm
SKU: 45710-95J01 Weight: 0.250000 Brand: Price: $ 53.37 |
Shallow Water Drive Arm | 1 | $ 53.37 | ||
| 41 | 45722-95J00 Shallow Water Drive Arm Spring
SKU: 45722-95J00 Weight: 0.100000 Brand: Price: $ 6.56 |
Shallow Water Drive Arm Spring | 1 | $ 6.56 | ||
| 42 | 09106-10078 Bolt (10x28.5)
SKU: 09106-10078 Weight: 0.100000 Brand: Price: $ 8.05 |
Bolt (10x28.5) | 2 | $ 8.05 | ||
| 43 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
