Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

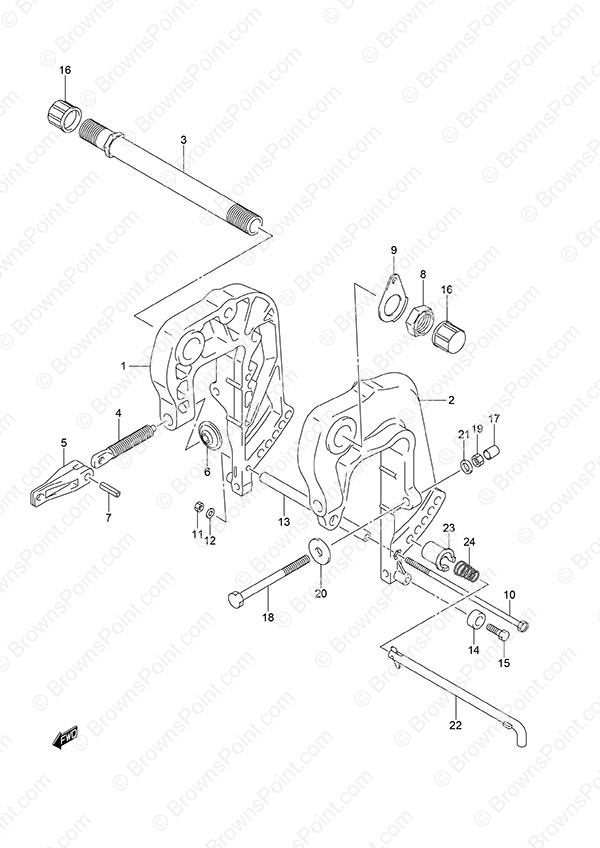

Fig. 44 - Clamp Bracket Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-95J01-0EP Stbd Clamp Bracket
SKU: 41111-95J01-0EP Weight: 0.100000 Brand: Price: $ 291.76 |
Stbd Clamp Bracket | 1 | $ 291.76 | ||
| 2 | 41121-95J00-0EP Port Clamp Bracket
SKU: 41121-95J00-0EP Weight: 5.000000 Brand: Price: $ 291.76 |
Port Clamp Bracket | 1 | $ 291.76 | ||
| 3 | 41130-95J02 Clamp Bracket Shaft
SKU: 41130-95J02 Weight: 1.000000 Brand: Price: $ 186.54 |
Clamp Bracket Shaft | 1 | $ 186.54 | ||
| 4 | 41211-95J00 Clamp Screw
SKU: 41211-95J00 Weight: 0.160000 Brand: Price: $ 23.68 |
Clamp Screw | 2 | $ 23.68 | ||
| 5 | 41212-91J00 Clamp Handle
SKU: 41212-91J00 Weight: 0.080000 Brand: Price: $ 15.22 |
Clamp Handle | 2 | $ 15.22 | ||
| 6 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 7 | 09205-06007 Spring Pin (6x25)
SKU: 09205-06007 Weight: 0.080000 Brand: Price: $ 2.28 |
Spring Pin (6x25) | 2 | $ 2.28 | ||
| 8 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 9 | 41135-93J00 Clamp Bracket Shaft Washer
SKU: 41135-93J00 Weight: 0.060000 Brand: Price: $ 6.66 |
Clamp Bracket Shaft Washer | 1 | $ 6.66 | ||
| 10 | 09100-06165 Bolt (6x180) (NLA)
SKU: 09100-06165 Weight: 1.000000 Brand: Price: $ 7.10 |
Bolt (6x180) (NLA) | 1 | $ 7.10 | ||
| 11 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 12 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 13 | 09180-06342 Spacer (NLA)
SKU: 09180-06342 Weight: 0.100000 Brand: Price: $ 13.92 |
Spacer (NLA) | 1 | $ 13.92 | ||
| 14 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 15 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 16 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 2 | $ 2.85 | ||
| 17 | 41153-95J00 Transom Bolt Cap (NLA)
SKU: 41153-95J00 Weight: 1.000000 Brand: Price: $ 5.07 |
Transom Bolt Cap (NLA) | 2 | $ 5.07 | ||
| 18 | 09100-10309 Transom Bolt (10x110) (NLA)
SKU: 09100-10309 Weight: 0.250000 Brand: Price: $ 11.30 |
Transom Bolt (10x110) (NLA) | 2 | $ 11.30 | ||
| 19 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 20 | 09160-10139 Washer (10.5x35x3) (NLA)
SKU: 09160-10139 Weight: 0.100000 Brand: Price: $ 3.56 |
Washer (10.5x35x3) (NLA) | 2 | $ 3.56 | ||
| 21 | 09160-10140 Washer (10.5x18x3)
SKU: 09160-10140 Weight: 0.100000 Brand: Price: $ 2.72 |
Washer (10.5x18x3) | 2 | $ 2.72 | ||
| 22 | 45420-95J01 Tilt Lock Pin
SKU: 45420-95J01 Weight: 0.100000 Brand: Price: $ 52.87 |
Tilt Lock Pin | 1 | $ 52.87 | ||
| 23 | 45425-95J00 Tilt Lock Pin Stopper (NLA)
SKU: 45425-95J00 Weight: 0.100000 Brand: Price: $ 4.55 |
Tilt Lock Pin Stopper (NLA) | 1 | $ 4.55 | ||
| 24 | 09441-17004 Tilt Lock Pin Spring
SKU: 09441-17004 Weight: 0.100000 Brand: Price: $ 2.69 |
Tilt Lock Pin Spring | 1 | $ 2.69 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
