Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

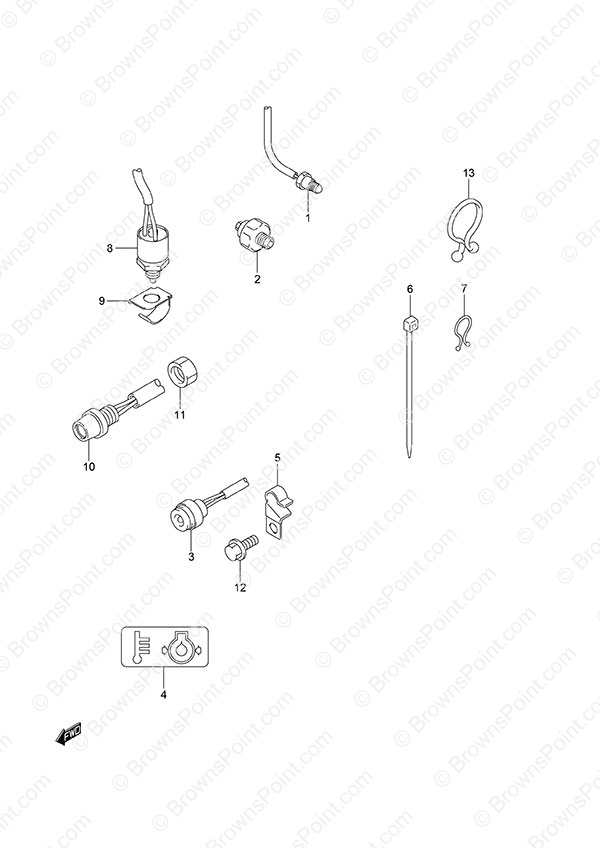

Fig. 38 - Sensor/Switch Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | ||
| 2 | 37820-95J00 Oil Pressure Switch Assembly
SKU: 37820-95J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Oil Pressure Switch Assembly | 1 | $ 0.00 | ||
| 3 | 36360-89J00 Warning Indicator (NLA)
SKU: 36360-89J00 Weight: 0.100000 Brand: Price: $ 40.77 |
Warning Indicator (NLA) | 1 | $ 40.77 | ||
| 4 | 36367-89J00-019 Warning Label (NLA)
SKU: 36367-89J00-019 Weight: 0.200000 Brand: Price: $ 2.31 |
Warning Label (NLA) | 1 | $ 2.31 | ||
| 5 | 09403-12308 Clamp (NLA)
SKU: 09403-12308 Weight: 0.100000 Brand: Price: $ 2.03 |
Clamp (NLA) | 1 | $ 2.03 | ||
| 6 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | Manual Starter | |
| 7 | 09408-00012 Clamp
SKU: 09408-00012 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | ||
| 8 | 37721-95J02 Neutral Switch Assembly
SKU: 37721-95J02 Weight: 0.100000 Brand: Price: $ 48.86 |
Neutral Switch Assembly | 1 | $ 48.86 | ||
| 9 | 37725-95600 Switch Actuator
SKU: 37725-95600 Weight: 0.060000 Brand: Price: $ 5.35 |
Switch Actuator | 1 | $ 5.35 | ||
| 10 | 37161-89E13 Start Switch Assembly
SKU: 37161-89E13 Weight: 0.250000 Brand: Price: $ 36.22 |
Start Switch Assembly | 1 | $ 36.22 | Electric Starter | |
| 11 | 09159-14032 Nut
SKU: 09159-14032 Weight: 0.060000 Brand: Price: $ 0.00 |
Nut | 1 | $ 0.00 | Electric Starter | |
| 12 | 01550-08127 BOLT 8 X 12
SKU: 01550-08127 Weight: 0.100000 Brand: Price: $ 2.84 |
BOLT 8 X 12 | 1 | $ 2.84 | Manual Starter | |
| 13 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | Electric Starter |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
