Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

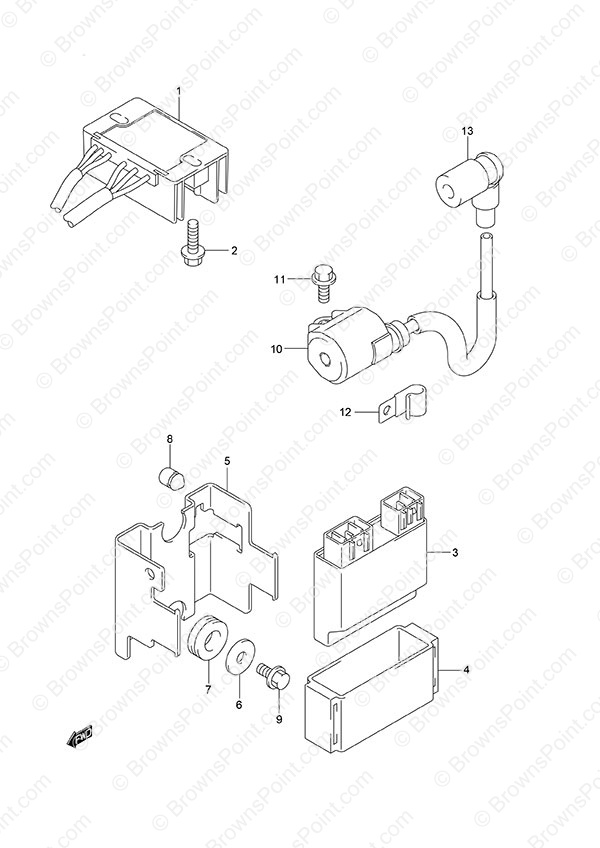

Fig. 36 - Rectifier/Ignition Coil Remote Control/Gas Assist Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-95J01 Rectifier & Regulator Assembly
SKU: 32800-95J01 Weight: 0.100000 Brand: Price: $ 222.23 |
Rectifier & Regulator Assembly | 1 | $ 222.23 | ||
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 32900-95J00 CDI Unit
SKU: 32900-95J00 Weight: 0.500000 Brand: Price: $ 472.01 |
CDI Unit | 1 | $ 472.01 | ||
| 5 | 32890-95J00 Electric Parts Holder (NLA)
SKU: 32890-95J00 Weight: 0.100000 Brand: Price: $ 6.01 |
Electric Parts Holder (NLA) | 1 | $ 6.01 | ||
| 6 | 09160-06054 Washer (6.5x22.1.6)
SKU: 09160-06054 Weight: 0.062500 Brand: Price: $ 1.63 |
Washer (6.5x22.1.6) | 2 | $ 1.63 | ||
| 7 | 09320-12090 Cushion
SKU: 09320-12090 Weight: 0.060000 Brand: Price: $ 1.91 |
Cushion | 2 | $ 1.91 | ||
| 8 | 09321-06036 Cushion
SKU: 09321-06036 Weight: 0.060000 Brand: Price: $ 1.53 |
Cushion | 2 | $ 1.53 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 33410-95J00 Ignition Coil Assembly
SKU: 33410-95J00 Weight: 0.240000 Brand: Price: $ 90.22 |
Ignition Coil Assembly | 2 | $ 90.22 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 12 | 09403-09316 Clamp (NLA)
SKU: 09403-09316 Weight: 0.100000 Brand: Price: $ 1.22 |
Clamp (NLA) | 2 | $ 1.22 | ||
| 13 | 33510-93E00 Spark Plug Cap
SKU: 33510-93E00 Weight: 0.250000 Brand: Price: $ 23.51 |
Spark Plug Cap | 2 | $ 23.51 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
