Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

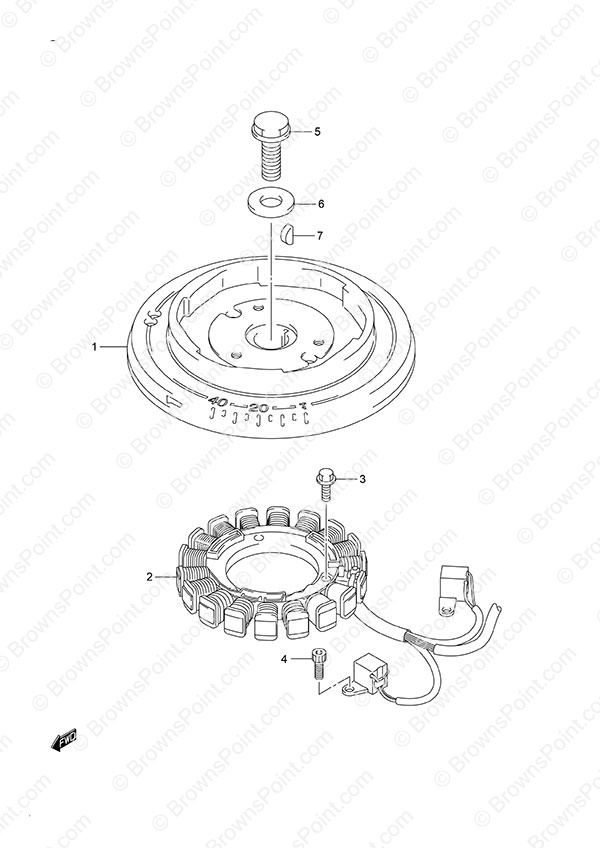

Fig. 33 - Magneto Remote Control/Gas Assist Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-95J00 Flywheel (NLA)
SKU: 32102-95J00 Weight: 0.100000 Brand: Price: $ 449.73 |
Flywheel (NLA) | 1 | $ 449.73 | ||
| 2 | 32120-95J00 Stator & Pulser Coil
SKU: 32120-95J00 Weight: 2.000000 Brand: Price: $ 408.05 |
Stator & Pulser Coil | 1 | $ 408.05 | ||
| 3 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 4 | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 4 | $ 2.62 | ||
| 5 | 09103-16005 Bolt
SKU: 09103-16005 Weight: 0.250000 Brand: Price: $ 0.00 |
Bolt | 1 | $ 0.00 | ||
| 6 | 09160-16046 Washer (16.5x36x4.5) (NLA)
SKU: 09160-16046 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (16.5x36x4.5) (NLA) | 1 | $ 4.13 | ||
| 7 | 09420-04008 Key
SKU: 09420-04008 Weight: 0.060000 Brand: Price: $ 3.48 |
Key | 1 | $ 3.48 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
