Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

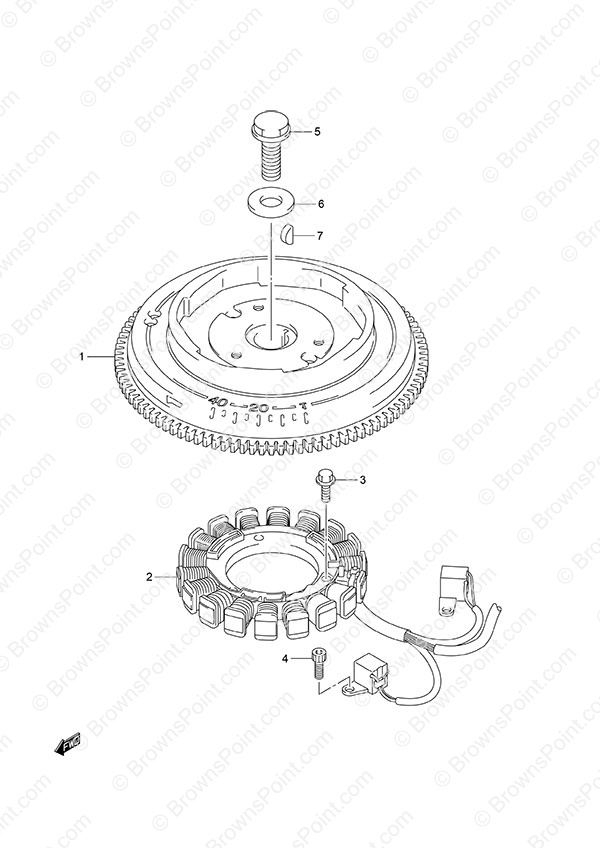

Fig. 32 - Magneto Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32102-95J00 Flywheel (NLA)
SKU: 32102-95J00 Weight: 0.100000 Brand: Price: $ 449.73 |
Flywheel (NLA) | 1 | $ 449.73 | Electric Starter | |
| 1-2 | 32102-95J10 Flywheel (NLA)
SKU: 32102-95J10 Weight: 0.100000 Brand: Price: $ 361.15 |
Flywheel (NLA) | 1 | $ 361.15 | Manual Starter | |
| 2-1 | 32120-95J00 Stator & Pulser Coil
SKU: 32120-95J00 Weight: 2.000000 Brand: Price: $ 408.05 |
Stator & Pulser Coil | 1 | $ 408.05 | Electric Starter | |
| 2-2 | 32120-95J10 Stator & Pulser Coil (NLA)
SKU: 32120-95J10 Weight: 0.100000 Brand: Price: $ 323.27 |
Stator & Pulser Coil (NLA) | 1 | $ 323.27 | Manual Starter | |
| 3 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 5 | 09103-16005 Bolt
SKU: 09103-16005 Weight: 0.250000 Brand: Price: $ 0.00 |
Bolt | 1 | $ 0.00 | ||
| 6 | 09160-16046 Washer (16.5x36x4.5) (NLA)
SKU: 09160-16046 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (16.5x36x4.5) (NLA) | 1 | $ 4.13 | ||
| 4 | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 4 | $ 2.62 | ||
| 7 | 09420-04008 Key
SKU: 09420-04008 Weight: 0.060000 Brand: Price: $ 3.48 |
Key | 1 | $ 3.48 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
