Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

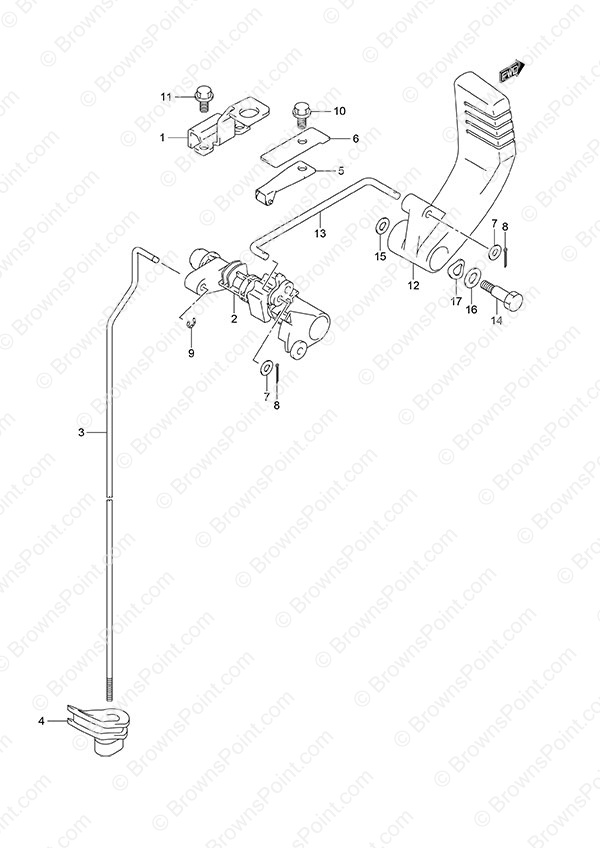

Fig. 24 - Clutch Shaft Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21126-95J01 Clutch Shaft Holder
SKU: 21126-95J01 Weight: 0.100000 Brand: Price: $ 13.32 |
Clutch Shaft Holder | 1 | $ 13.32 | ||
| 2 | 21211-95J01 Clutch Shaft
SKU: 21211-95J01 Weight: 0.120000 Brand: Price: $ 17.44 |
Clutch Shaft | 1 | $ 17.44 | ||
| 3-1 | 23111-95J00 Clutch Rod (S)
SKU: 23111-95J00 Weight: 0.500000 Brand: Price: $ 17.00 |
Clutch Rod (S) | 1 | $ 17.00 | w/Transom (S) | |
| 3-2 | 23111-95J10 Clutch Rod (L) (NLA)
SKU: 23111-95J10 Weight: 0.100000 Brand: Price: $ 13.24 |
Clutch Rod (L) (NLA) | 1 | $ 13.24 | w/Transom (L) | |
| 4 | 23131-95J00 Clutch Rod Boot (NLA)
SKU: 23131-95J00 Weight: 0.100000 Brand: Price: $ 4.59 |
Clutch Rod Boot (NLA) | 1 | $ 4.59 | ||
| 5 | 23213-89J01 Notch Plate Spring No. 1
SKU: 23213-89J01 Weight: 0.060000 Brand: Price: $ 7.47 |
Notch Plate Spring No. 1 | 1 | $ 7.47 | ||
| 6 | 23214-89J10 Notch Plate Spring No. 2 (NLA)
SKU: 23214-89J10 Weight: 0.060000 Brand: Price: $ 3.57 |
Notch Plate Spring No. 2 (NLA) | 1 | $ 3.57 | ||
| 7 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 2 | $ 1.70 | ||
| 8 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 9 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 1 | $ 0.76 | ||
| 10 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 12 | 21111-95J00 Front Shift Lever
SKU: 21111-95J00 Weight: 0.100000 Brand: Price: $ 19.50 |
Front Shift Lever | 1 | $ 19.50 | ||
| 13 | 23115-95J00 Clutch Lever Link (NLA)
SKU: 23115-95J00 Weight: 0.100000 Brand: Price: $ 10.61 |
Clutch Lever Link (NLA) | 1 | $ 10.61 | ||
| 14 | 09111-06069 Bolt (6x28.8)
SKU: 09111-06069 Weight: 0.060000 Brand: Price: $ 10.55 |
Bolt (6x28.8) | 1 | $ 10.55 | ||
| 15 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 16 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 17 | 09164-08017 Wave Washer
SKU: 09164-08017 Weight: 0.060000 Brand: Price: $ 2.20 |
Wave Washer | 1 | $ 2.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
