Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

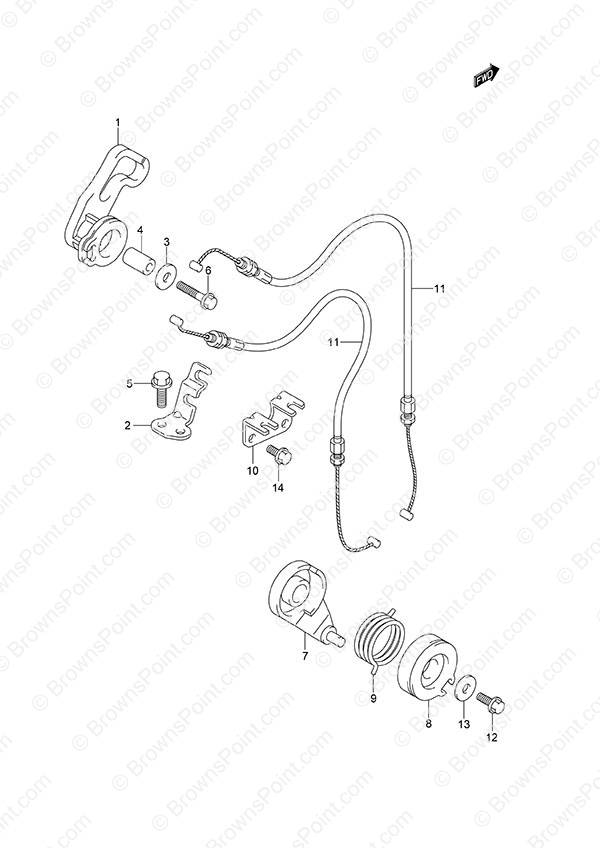

Fig. 20 - Throttle Control Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 19141-95J00 Throttle Cam (NLA)
SKU: 19141-95J00 Weight: 0.080000 Brand: Price: $ 8.18 |
Throttle Cam (NLA) | 1 | $ 8.18 | ||
| 2 | 19184-95J00 Throttle Cable Bracket
SKU: 19184-95J00 Weight: 0.100000 Brand: Price: $ 8.05 |
Throttle Cable Bracket | 1 | $ 8.05 | ||
| 3 | 09160-06047 Washer (6.2x20x2)
SKU: 09160-06047 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer (6.2x20x2) | 1 | $ 1.91 | ||
| 4 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 5 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 6 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 | ||
| 7 | 19120-95J00 Throttle Control Lever
SKU: 19120-95J00 Weight: 0.100000 Brand: Price: $ 20.14 |
Throttle Control Lever | 1 | $ 20.14 | ||
| 8 | 19122-95J00 Throttle Interlink Lever
SKU: 19122-95J00 Weight: 0.100000 Brand: Price: $ 5.90 |
Throttle Interlink Lever | 1 | $ 5.90 | ||
| 9 | 19185-95J00 Throttle Lever Spring
SKU: 19185-95J00 Weight: 0.100000 Brand: Price: $ 7.28 |
Throttle Lever Spring | 1 | $ 7.28 | ||
| 10 | 19761-95J00 Throttle Cable Stay
SKU: 19761-95J00 Weight: 0.100000 Brand: Price: $ 8.36 |
Throttle Cable Stay | 1 | $ 8.36 | ||
| 11 | 63610-95J12 Throttle Cable Assembly
SKU: 63610-95J12 Weight: 0.250000 Brand: Price: $ 19.33 |
Throttle Cable Assembly | 2 | $ 19.33 | ||
| 12 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 13 | 09160-06047 Washer (6.2x20x2)
SKU: 09160-06047 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer (6.2x20x2) | 1 | $ 1.91 | ||
| 14 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
