Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

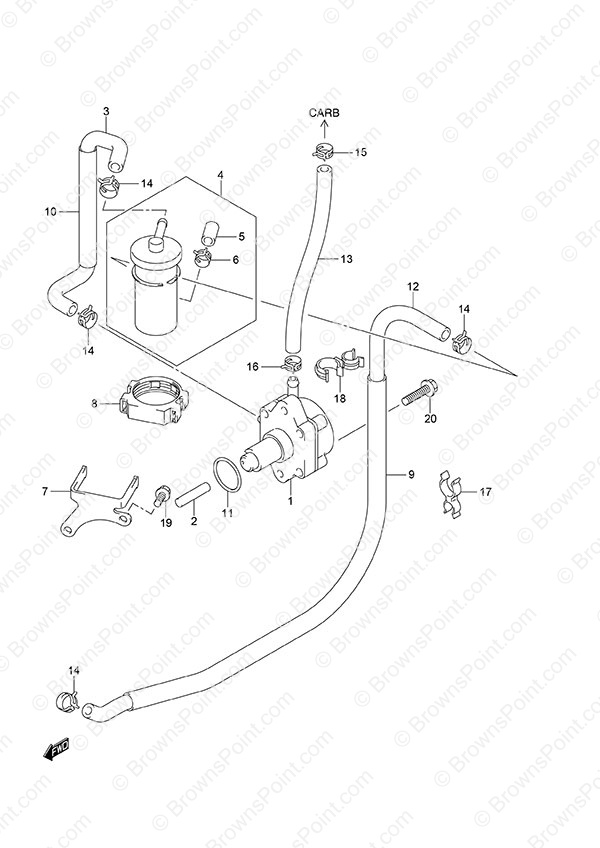

Fig. 14 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-95J04 Fuel Pump Assembly
SKU: 15100-95J04 Weight: 0.500000 Brand: Price: $ 126.19 |
Fuel Pump Assembly | 1 | $ 126.19 | ||
| 2 | 15131-99E00 Fuel Pump Rod
SKU: 15131-99E00 Weight: 0.060000 Brand: Price: $ 4.77 |
Fuel Pump Rod | 1 | $ 4.77 | ||
| 4 | 15410-87J30 Fuel Filter
SKU: 15410-87J30 Weight: 0.200000 Brand: Price: $ 16.22 |
Fuel Filter | 1 | $ 16.22 | ||
| 5 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
| 6 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 7 | 15421-95J00 Fuel Filter Bracket (NLA)
SKU: 15421-95J00 Weight: 0.100000 Brand: Price: $ 5.89 |
Fuel Filter Bracket (NLA) | 1 | $ 5.89 | ||
| 8 | 15422-96J01 Fuel Filter Clamp
SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.41 |
Fuel Filter Clamp | 1 | $ 6.41 | ||
| 9 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->560 | |
| 10 | 18498-96J21 Hose Protector (13.5x16.5x370)
SKU: 18498-96J21 Weight: 0.250000 Brand: Price: $ 6.62 |
Hose Protector (13.5x16.5x370) | 1 | $ 6.62 | L:370->110 | |
| 11 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 12 | 09343-70503-00B Fuel Hose (7x12x2000)
SKU: 09343-70503-00B Weight: 0.250000 Brand: Price: $ 0.00 |
Fuel Hose (7x12x2000) | 1 | $ 0.00 | L:2000->720 | |
| 14 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 15 | 09401-10412 Clip
SKU: 09401-10412 Weight: 0.060000 Brand: Price: $ 2.72 |
Clip | 1 | $ 2.72 | ||
| 16 | 09401-12412 CLIP
SKU: 09401-12412 Weight: 0.000000 Brand: Price: $ 1.97 |
CLIP | 1 | $ 1.97 | ||
| 17 | 09408-00069 Clamp (NLA)
SKU: 09408-00069 Weight: 0.100000 Brand: Price: $ 1.81 |
Clamp (NLA) | 1 | $ 1.81 | ||
| 18 | 09408-00105 Clamp
SKU: 09408-00105 Weight: 0.100000 Brand: Price: $ 4.27 |
Clamp | 1 | $ 4.27 | ||
| 19 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 20 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
