Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

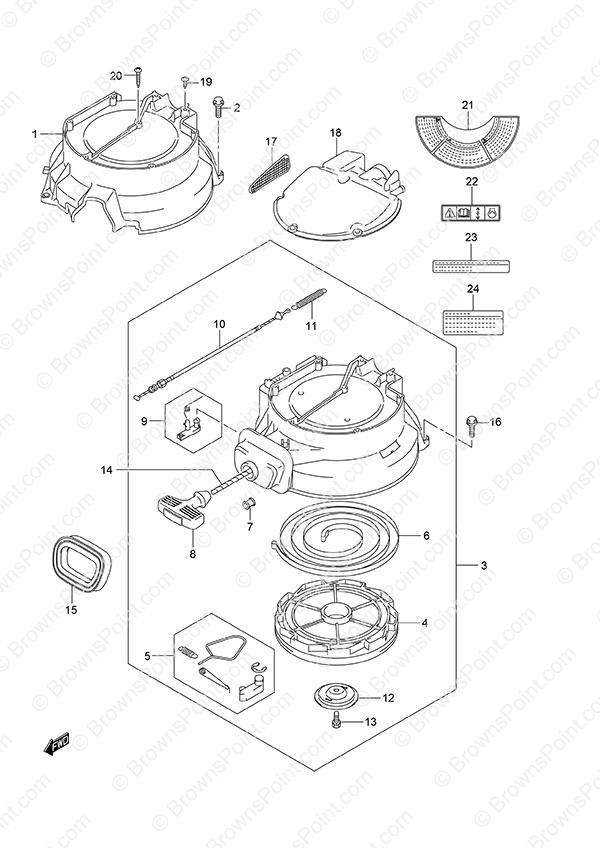

Fig. 11 - Magneto Cover/Recoil Starter/Silencer
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11511-95J01 Magneto Cover
SKU: 11511-95J01 Weight: 0.100000 Brand: Price: $ 40.32 |
Magneto Cover | 1 | $ 40.32 | Electric Starter | |
| 2 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 3 | $ 2.82 | Electric Starter | |
| 3 | 18100-95J00 Recoil Starter Assembly
SKU: 18100-95J00 Weight: 0.100000 Brand: Price: $ 282.00 |
Recoil Starter Assembly | 1 | $ 282.00 | Manual Starter | |
| 4 | 18120-96320 Reel (NLA)
SKU: 18120-96320 Weight: 0.250000 Brand: Price: $ 53.59 |
Reel (NLA) | 1 | $ 53.59 | Manual Starter | |
| 5 | 18130-89J00 Ratchet Set
SKU: 18130-89J00 Weight: 0.200000 Brand: Price: $ 20.70 |
Ratchet Set | 1 | $ 20.70 | Manual Starter | |
| 6 | 18142-89J00 Spiral Spring
SKU: 18142-89J00 Weight: 0.100000 Brand: Price: $ 37.34 |
Spiral Spring | 1 | $ 37.34 | Manual Starter | |
| 7 | 18191-95J00 Rope Guide (NLA)
SKU: 18191-95J00 Weight: 0.100000 Brand: Price: $ 11.49 |
Rope Guide (NLA) | 1 | $ 11.49 | Manual Starter | |
| 8 | 18210-93002 Grip Assembly
SKU: 18210-93002 Weight: 0.250000 Brand: Price: $ 16.38 |
Grip Assembly | 1 | $ 16.38 | Manual Starter | |
| 9 | 18280-95J00 NSI Set (NLA)
SKU: 18280-95J00 Weight: 0.100000 Brand: Price: $ 6.87 |
NSI Set (NLA) | 1 | $ 6.87 | Manual Starter | |
| 10 | 18290-95J00 Wire (NLA)
SKU: 18290-95J00 Weight: 0.100000 Brand: Price: $ 33.45 |
Wire (NLA) | 1 | $ 33.45 | Manual Starter | |
| 11 | 18293-89J00 Spring (NLA)
SKU: 18293-89J00 Weight: 0.100000 Brand: Price: $ 4.97 |
Spring (NLA) | 1 | $ 4.97 | Manual Starter | |
| 12 | 18151-96310 Friction Plate (NLA)
SKU: 18151-96310 Weight: 0.100000 Brand: Price: $ 7.19 |
Friction Plate (NLA) | 1 | $ 7.19 | Manual Starter | |
| 13 | 01570-06167 BOLT
SKU: 01570-06167 Weight: 0.100000 Brand: Price: $ 2.62 |
BOLT | 1 | $ 2.62 | Manual Starter | |
| 14 | 99000-81159-50M Starter Rope 6mm Diameter (NLA)
SKU: 99000-81159-50M Weight: 1.000000 Brand: Price: $ 254.49 |
Starter Rope 6mm Diameter (NLA) | 1 | $ 254.49 | Opt: L:50000->1750 | |
| 15 | 18193-95J00 Recoil Starter Seal (NLA)
SKU: 18193-95J00 Weight: 0.100000 Brand: Price: $ 10.84 |
Recoil Starter Seal (NLA) | 1 | $ 10.84 | Manual Starter | |
| 16 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 3 | $ 2.82 | Manual Starter | |
| 17 | 13710-95J00 Flame Arrester
SKU: 13710-95J00 Weight: 0.100000 Brand: Price: $ 11.89 |
Flame Arrester | 1 | $ 11.89 | ||
| 18 | 13811-95J00 Upper Cover Silencer
SKU: 13811-95J00 Weight: 0.100000 Brand: Price: $ 25.12 |
Upper Cover Silencer | 1 | $ 25.12 | ||
| 19 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 7 | $ 1.70 | ||
| 20 | 03542-05359 SCREW
SKU: 03542-05359 Weight: 0.200000 Brand: Price: $ 2.24 |
SCREW | 1 | $ 2.24 | ||
| 21 | 61472-93E33 LABEL,RECOIL,ST
SKU: 61472-93E33 Weight: 0.000000 Brand: Price: $ 7.74 |
LABEL,RECOIL,ST | 1 | $ 7.74 | ||
| 22 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
