Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

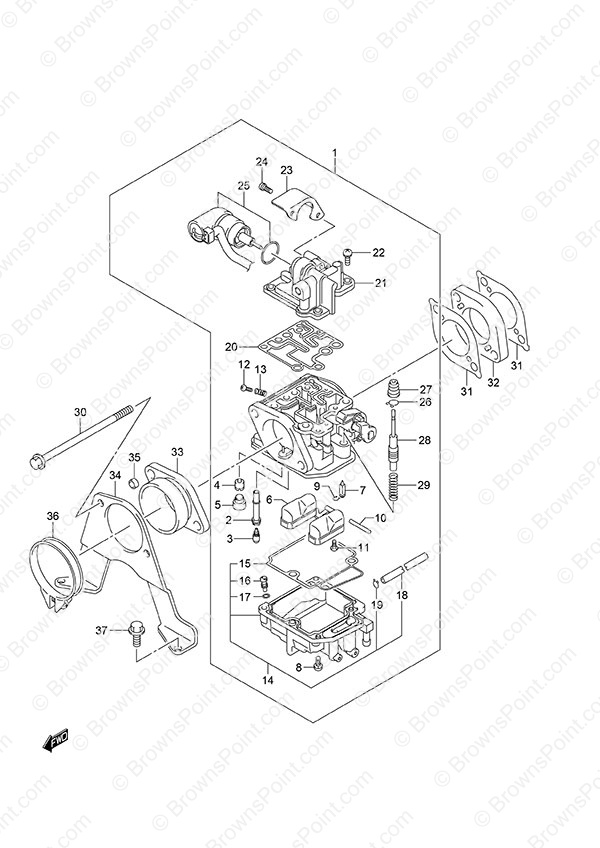

Fig. 9 - Carburetor Remote Control/Gas Assist Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-95J00 Carburetor Assembly
SKU: 13200-95J00 Weight: 1.500000 Brand: Price: $ 558.15 |
Carburetor Assembly | 1 | $ 558.15 | ||
| 2 | 13236-95J00 Main Nozzle
SKU: 13236-95J00 Weight: 0.062500 Brand: Price: $ 25.12 |
Main Nozzle | 1 | $ 25.12 | ||
| 3 | 09491-27020 Main Jet #135
SKU: 09491-27020 Weight: 0.060000 Brand: Price: $ 15.87 |
Main Jet #135 | 1 | $ 15.87 | ||
| 4 | 09492-48016 Pilot Jet #48
SKU: 09492-48016 Weight: 0.062500 Brand: Price: $ 15.58 |
Pilot Jet #48 | 1 | $ 15.58 | ||
| 5 | 13239-94J00 Rubber Cap
SKU: 13239-94J00 Weight: 0.060000 Brand: Price: $ 6.88 |
Rubber Cap | 1 | $ 6.88 | ||
| 6 | 13250-94J00 Carburetor Float
SKU: 13250-94J00 Weight: 0.060000 Brand: Price: $ 34.88 |
Carburetor Float | 1 | $ 34.88 | ||
| 7 | 13370-94J00 Needle Valve
SKU: 13370-94J00 Weight: 0.060000 Brand: Price: $ 21.38 |
Needle Valve | 1 | $ 21.38 | ||
| 8 | 13247-94J00 Screw
SKU: 13247-94J00 Weight: 0.100000 Brand: Price: $ 9.12 |
Screw | 4 | $ 9.12 | ||
| 9 | 13375-26E00 Valve Clip
SKU: 13375-26E00 Weight: 0.060000 Brand: Price: $ 5.74 |
Valve Clip | 1 | $ 5.74 | ||
| 10 | 13254-94J00 Float Pin
SKU: 13254-94J00 Weight: 0.060000 Brand: Price: $ 3.07 |
Float Pin | 1 | $ 3.07 | ||
| 11 | 13802-94J00 Screw
SKU: 13802-94J00 Weight: 0.100000 Brand: Price: $ 3.31 |
Screw | 1 | $ 3.31 | ||
| 12 | 13534-94J00 Stop Screw
SKU: 13534-94J00 Weight: 0.060000 Brand: Price: $ 7.62 |
Stop Screw | 1 | $ 7.62 | ||
| 13 | 13268-94J00 Spring
SKU: 13268-94J00 Weight: 0.100000 Brand: Price: $ 4.39 |
Spring | 1 | $ 4.39 | ||
| 14 | 13240-95J00 Float Chamber Assembly (NLA)
SKU: 13240-95J00 Weight: 0.340000 Brand: Price: $ 92.56 |
Float Chamber Assembly (NLA) | 1 | $ 92.56 | ||
| 15 | 13251-94J00 Float Chamber Gasket
SKU: 13251-94J00 Weight: 0.060000 Brand: Price: $ 10.80 |
Float Chamber Gasket | 1 | $ 10.80 | ||
| 16 | 13279-94J00 Drain Screw
SKU: 13279-94J00 Weight: 0.060000 Brand: Price: $ 5.31 |
Drain Screw | 1 | $ 5.31 | ||
| 17 | 13523-94J00 O-Ring
SKU: 13523-94J00 Weight: 0.060000 Brand: Price: $ 4.21 |
O-Ring | 1 | $ 4.21 | ||
| 18 | 13684-94J00 Pipe (NLA)
SKU: 13684-94J00 Weight: 0.100000 Brand: Price: $ 7.36 |
Pipe (NLA) | 1 | $ 7.36 | ||
| 19 | 09401-05402-XC0 Clip
SKU: 09401-05402-XC0 Weight: 0.100000 Brand: Price: $ 1.43 |
Clip | 1 | $ 1.43 | ||
| 20 | 13345-94J00 U-Ring
SKU: 13345-94J00 Weight: 0.060000 Brand: Price: $ 10.24 |
U-Ring | 1 | $ 10.24 | ||
| 21 | 13346-95J00 Cover
SKU: 13346-95J00 Weight: 0.100000 Brand: Price: $ 93.84 |
Cover | 1 | $ 93.84 | ||
| 22 | 13247-94J00 Screw
SKU: 13247-94J00 Weight: 0.100000 Brand: Price: $ 9.12 |
Screw | 4 | $ 9.12 | ||
| 23 | 13428-95J00 Heater Guard
SKU: 13428-95J00 Weight: 0.100000 Brand: Price: $ 15.12 |
Heater Guard | 1 | $ 15.12 | ||
| 24 | 13367-94J00 Screw
SKU: 13367-94J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Screw | 2 | $ 4.39 | ||
| 25 | 13368-95J00 Starter Assembly
SKU: 13368-95J00 Weight: 0.500000 Brand: Price: $ 211.30 |
Starter Assembly | 1 | $ 211.30 | ||
| 26 | 13494-94J00 Clip
SKU: 13494-94J00 Weight: 0.060000 Brand: Price: $ 6.56 |
Clip | 1 | $ 6.56 | ||
| 27 | 13495-94J00 Rubber Cap
SKU: 13495-94J00 Weight: 0.060000 Brand: Price: $ 10.85 |
Rubber Cap | 1 | $ 10.85 | ||
| 28 | 13493-95J00 Plunger
SKU: 13493-95J00 Weight: 0.060000 Brand: Price: $ 21.14 |
Plunger | 1 | $ 21.14 | ||
| 29 | 13441-94J00 Spring
SKU: 13441-94J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Spring | 1 | $ 4.39 | ||
| 30 | 09103-06228 Bolt (6x105)
SKU: 09103-06228 Weight: 0.100000 Brand: Price: $ 3.74 |
Bolt (6x105) | 2 | $ 3.74 | ||
| 31 | 13125-95J00 Carburetor Gasket
SKU: 13125-95J00 Weight: 0.060000 Brand: Price: $ 4.81 |
Carburetor Gasket | 2 | $ 4.81 | ||
| 32 | 13124-95J00 Carburetor Insulator
SKU: 13124-95J00 Weight: 0.200000 Brand: Price: $ 13.32 |
Carburetor Insulator | 1 | $ 13.32 | ||
| 33 | 13880-95J00 Outlet Tube (NLA)
SKU: 13880-95J00 Weight: 0.100000 Brand: Price: $ 10.19 |
Outlet Tube (NLA) | 1 | $ 10.19 | ||
| 34 | 13882-95J00 Outlet Tube Plate (NLA)
SKU: 13882-95J00 Weight: 0.100000 Brand: Price: $ 9.42 |
Outlet Tube Plate (NLA) | 1 | $ 9.42 | ||
| 35 | 09180-06353 Spacer
SKU: 09180-06353 Weight: 0.100000 Brand: Price: $ 2.59 |
Spacer | 2 | $ 2.59 | ||
| 37 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
