Suzuki DF 25 V-Twin Parts Listings
S/N 02503F-410001 to 02503F-41XXXX

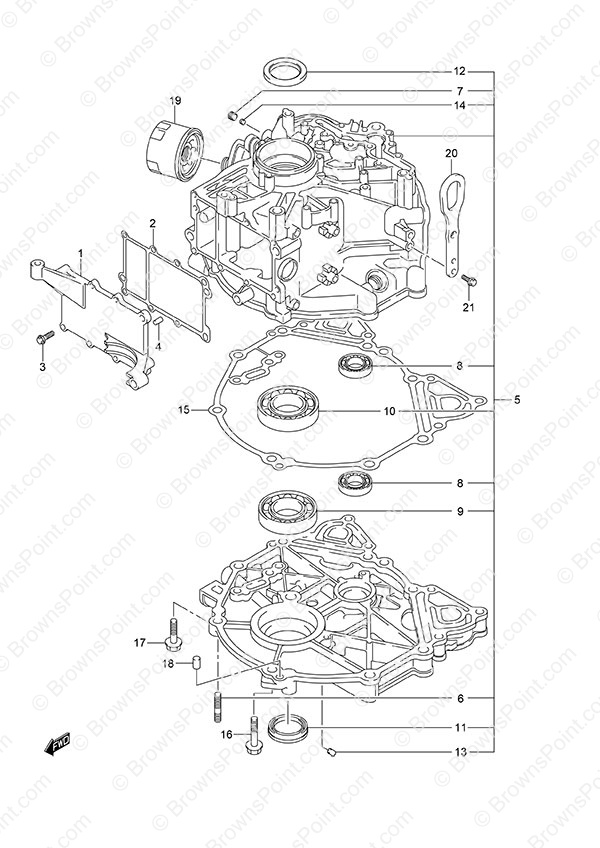

Fig. 2 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11218-95J00 Cylinder Block Cover (NLA)
SKU: 11218-95J00 Weight: 0.100000 Brand: Price: $ 46.73 |
Cylinder Block Cover (NLA) | 1 | $ 46.73 | ||
| 2 | 11219-95J01 Cylinder Block Cover Gasket
SKU: 11219-95J01 Weight: 0.100000 Brand: Price: $ 9.78 |
Cylinder Block Cover Gasket | 1 | $ 9.78 | ||
| 3 | 01547-06207 BOLT 6 X 20
SKU: 01547-06207 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6 X 20 | 8 | $ 2.04 | ||
| 4 | 04221-06129 PIN 6X12
SKU: 04221-06129 Weight: 0.060000 Brand: Price: $ 1.49 |
PIN 6X12 | 2 | $ 1.49 | ||
| 5 | 11300-95850 Cylinder Block Set
SKU: 11300-95850 Weight: 0.100000 Brand: Price: $ 1,509.48 |
Cylinder Block Set | 1 | $ 1,509.48 | ||
| 7 | 09246-04009 Plug
SKU: 09246-04009 Weight: 0.060000 Brand: Price: $ 3.68 |
Plug | 1 | $ 3.68 | ||
| 8 | 09262-25145 Camshaft Bearing (25x42x9) (NLA)
SKU: 09262-25145 Weight: 1.000000 Brand: Price: $ 60.58 |
Camshaft Bearing (25x42x9) (NLA) | 2 | $ 60.58 | ||
| 9 | 09262-35067 Crankshaft Lower Bearing (35x72x17)
SKU: 09262-35067 Weight: 0.250000 Brand: Price: $ 78.35 |
Crankshaft Lower Bearing (35x72x17) | 1 | $ 78.35 | ||
| 10 | 08110-62080 BEARING,UPPER
SKU: 08110-62080 Weight: 1.000000 Brand: Price: $ 40.21 |
BEARING,UPPER | 1 | $ 40.21 | ||
| 11 | 09283-34014 Oil Seal (34x46x8)
SKU: 09283-34014 Weight: 0.250000 Brand: Price: $ 46.52 |
Oil Seal (34x46x8) | 1 | $ 46.52 | ||
| 12 | 09283-38025 Oil Seal (38x56x7)
SKU: 09283-38025 Weight: 0.250000 Brand: Price: $ 32.43 |
Oil Seal (38x56x7) | 1 | $ 32.43 | ||
| 13 | 11112-53A00 Oil Venturi Plug
SKU: 11112-53A00 Weight: 0.060000 Brand: Price: $ 4.18 |
Oil Venturi Plug | 1 | $ 4.18 | For Crankshaft Case | |
| 14 | 09493-20012 Air Jet #100
SKU: 09493-20012 Weight: 0.100000 Brand: Price: $ 17.49 |
Air Jet #100 | 1 | $ 17.49 | For Cylinder Block | |
| 15 | 11351-95J01 Crankcase Gasket
SKU: 11351-95J01 Weight: 0.220000 Brand: Price: $ 34.60 |
Crankcase Gasket | 1 | $ 34.60 | ||
| 16 | 09116-10143 Bolt (10x40) (NLA)
SKU: 09116-10143 Weight: 0.100000 Brand: Price: $ 5.98 |
Bolt (10x40) (NLA) | 2 | $ 5.98 | ||
| 17 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 2 | $ 4.11 | ||
| 18 | 04221-08149 PIN
SKU: 04221-08149 Weight: 0.100000 Brand: Price: $ 1.96 |
PIN | 2 | $ 1.96 | ||
| 19 | 16510-87J02 Engine Oil Filter
SKU: 16510-87J02 Weight: 0.000000 Brand: Price: $ 14.89 |
Engine Oil Filter | 1 | $ 14.89 | ||
| 20 | 11291-95J00 Engine Hook (NLA)
SKU: 11291-95J00 Weight: 0.100000 Brand: Price: $ 8.41 |
Engine Hook (NLA) | 2 | $ 8.41 | ||
| 21 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
