Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

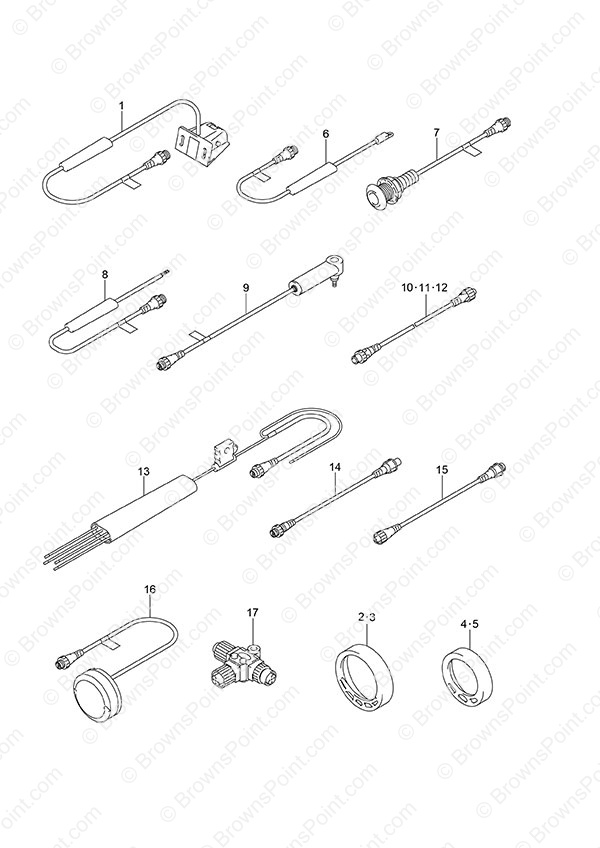

Fig. 211 - Opt: SMIS Gauges Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 6 | 990C0-88118 Temperature Sensor
SKU: 990C0-88118 Weight: 0.550000 Brand: Price: $ 98.51 |
Temperature Sensor | 1 | $ 98.51 | ||
| 8 | 990C0-88217 Fluid Level Sensor
SKU: 990C0-88217 Weight: 0.600000 Brand: Price: $ 133.70 |
Fluid Level Sensor | 1 | $ 133.70 | ||
| 9 | 990C0-88339 Pressure Sensor
SKU: 990C0-88339 Weight: 0.520000 Brand: Price: $ 145.84 |
Pressure Sensor | 1 | $ 145.84 | ||
| 10 | 990C0-88104 2' Extension cable
SKU: 990C0-88104 Weight: 1.000000 Brand: Price: $ 22.24 |
2' Extension cable | 1 | $ 22.24 | ||
| 11 | 990C0-88105 6' Extension cable
SKU: 990C0-88105 Weight: 0.300000 Brand: Price: $ 28.34 |
6' Extension cable | 1 | $ 28.34 | ||
| 12 | 990C0-88107 15' Extension cable
SKU: 990C0-88107 Weight: 1.000000 Brand: Price: $ 44.58 |
15' Extension cable | 1 | $ 44.58 | ||
| 13 | 990C0-88130 Quad Power Node
SKU: 990C0-88130 Weight: 0.400000 Brand: Price: $ 75.05 |
Quad Power Node | 1 | $ 75.05 | ||
| 15 | 990C0-88137 NMEA to Blue T Adaptor Harness
SKU: 990C0-88137 Weight: 0.100000 Brand: Price: $ 54.09 |
NMEA to Blue T Adaptor Harness | 1 | $ 54.09 | ||
| 16 | 990C0-88122 GPS Receiver Module
SKU: 990C0-88122 Weight: 1.000000 Brand: Price: $ 380.87 |
GPS Receiver Module | 1 | $ 380.87 | ||
| 17 | 990C0-88110 T-Connector
SKU: 990C0-88110 Weight: 0.060000 Brand: Price: $ 18.18 |
T-Connector | 1 | $ 18.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
