Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

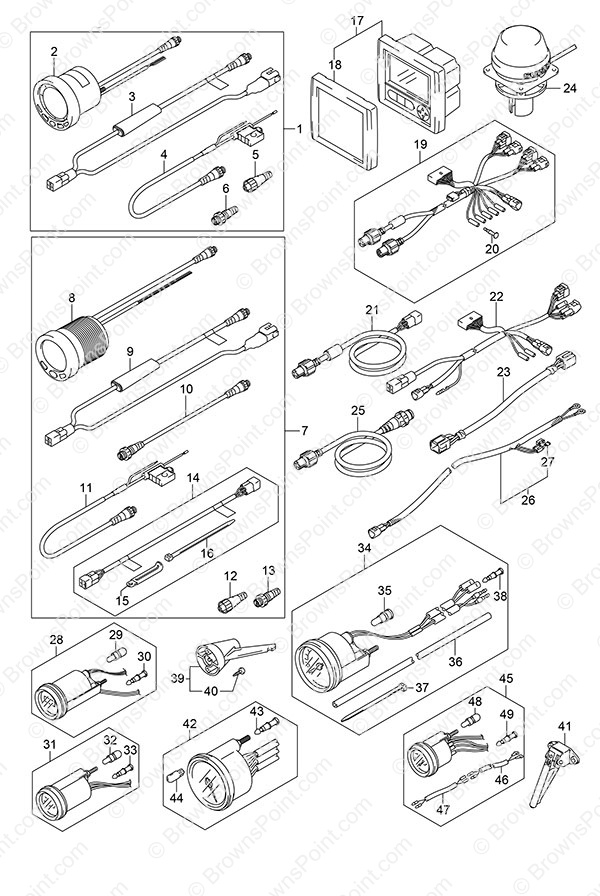

Fig. 179 - Opt: Meter Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 4 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 5 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 6 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 7 | 34011-89L00 2 in. Multi-Function Gauge Kit
SKU: 34011-89L00 Weight: 5.000000 Brand: Price: $ 923.56 |
2 in. Multi-Function Gauge Kit | 1 | $ 923.56 | ||
| 10 | 990C0-88108 25' Extension cable
SKU: 990C0-88108 Weight: 1.100000 Brand: Price: $ 56.76 |
25' Extension cable | 1 | $ 56.76 | ||
| 11 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 12 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 13 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 14 | 36660-89L00 Engine to Interface Wire Set
SKU: 36660-89L00 Weight: 1.000000 Brand: Price: $ 188.34 |
Engine to Interface Wire Set | 1 | $ 188.34 | ||
| 15 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 16 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 3 | $ 3.09 | ||
| 18 | 34211-87L00 Front Cover (NLA)
SKU: 34211-87L00 Weight: 0.500000 Brand: Price: $ 31.04 |
Front Cover (NLA) | 1 | $ 31.04 | ||
| 19 | 36661-87L00 Gauge Adapter
SKU: 36661-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Gauge Adapter | 1 | $ 0.00 | ||
| 20 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 5 | $ 1.31 | ||
| 21 | 36664-87L00 Dual Station Gauge Adapter
SKU: 36664-87L00 Weight: 0.100000 Brand: Price: $ 0.00 |
Dual Station Gauge Adapter | 1 | $ 0.00 | ||
| 22 | 36665-87L10 Multi Engine Adapter - Mechanical
SKU: 36665-87L10 Weight: 0.500000 Brand: Price: $ 108.35 |
Multi Engine Adapter - Mechanical | 1 | $ 108.35 | ||
| 23 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | ||
| 24 | 39950-87L00 GPS Receiver Module Assembly
SKU: 39950-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
GPS Receiver Module Assembly | 1 | $ 0.00 | ||
| 25 | 36666-87L00 Network Wire
SKU: 36666-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Network Wire | 1 | $ 0.00 | ||
| 26-1 | 36663-98J00 Active Hub Power Harness Assy (NLA)
SKU: 36663-98J00 Weight: 1.000000 Brand: Price: $ 58.00 |
Active Hub Power Harness Assy (NLA) | 1 | $ 58.00 | 2.5 M | |
| 26-2 | 36663-98J10 Active Hub Power Harness Assy
SKU: 36663-98J10 Weight: 1.000000 Brand: Price: $ 113.62 |
Active Hub Power Harness Assy | 1 | $ 113.62 | 6 M | |
| 27 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 28-1 | 34500-93J02 Black Hour Meter
SKU: 34500-93J02 Weight: 1.040000 Brand: Price: $ 164.43 |
Black Hour Meter | 1 | $ 164.43 | ||
| 28-2 | 34500-93J13 White Hour Meter
SKU: 34500-93J13 Weight: 1.020000 Brand: Price: $ 164.43 |
White Hour Meter | 1 | $ 164.43 | ||
| 29 | 09471-12103 Bulb (12v, 3.4w)
SKU: 09471-12103 Weight: 0.100000 Brand: Price: $ 3.90 |
Bulb (12v, 3.4w) | 1 | $ 3.90 | ||
| 30 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 4 | $ 1.31 | ||
| 31-1 | 34600-93J02 Black Voltmeter
SKU: 34600-93J02 Weight: 1.500000 Brand: Price: $ 115.67 |
Black Voltmeter | 1 | $ 115.67 | ||
| 31-2 | 34600-93J13 White Voltmeter
SKU: 34600-93J13 Weight: 1.500000 Brand: Price: $ 115.67 |
White Voltmeter | 1 | $ 115.67 | ||
| 32 | 09471-12103 Bulb (12v, 3.4w)
SKU: 09471-12103 Weight: 0.100000 Brand: Price: $ 3.90 |
Bulb (12v, 3.4w) | 1 | $ 3.90 | ||
| 33 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 4 | $ 1.31 | ||
| 34-1 | 34100-93J22 Black Speedometer 0-50 MPH
SKU: 34100-93J22 Weight: 1.680000 Brand: Price: $ 184.74 |
Black Speedometer 0-50 MPH | 1 | $ 184.74 | ||
| 34-2 | 34100-93J33 White Speedometer 0-50 MPH
SKU: 34100-93J33 Weight: 1.700000 Brand: Price: $ 184.74 |
White Speedometer 0-50 MPH | 1 | $ 184.74 | ||
| 35 | 09471-12028 Bulb (12v, 3.4w)
SKU: 09471-12028 Weight: 0.100000 Brand: Price: $ 1.99 |
Bulb (12v, 3.4w) | 1 | $ 1.99 | ||
| 36 | 34191-92E00 Water Pressure Tubing
SKU: 34191-92E00 Weight: 0.300000 Brand: Price: $ 33.64 |
Water Pressure Tubing | 1 | $ 33.64 | ||
| 37 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 38 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 39 | 34190-95500 Speedometer Sensor (NLA)
SKU: 34190-95500 Weight: 0.100000 Brand: Price: $ 42.08 |
Speedometer Sensor (NLA) | 1 | $ 42.08 | ||
| 40 | 03112-06303 Screw (NLA)
SKU: 03112-06303 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (NLA) | 2 | $ 2.20 | ||
| 41 | 34190-87D00 Speedometer Sensor
SKU: 34190-87D00 Weight: 0.350000 Brand: Price: $ 44.58 |
Speedometer Sensor | 1 | $ 44.58 | ||
| 42-1 | 34200-93J22 Black Tachometer
SKU: 34200-93J22 Weight: 1.220000 Brand: Price: $ 209.11 |
Black Tachometer | 1 | $ 209.11 | ||
| 42-2 | 34200-93J34 White Tachometer
SKU: 34200-93J34 Weight: 1.500000 Brand: Price: $ 209.11 |
White Tachometer | 1 | $ 209.11 | ||
| 43 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 5 | $ 1.31 | ||
| 45-1 | 34300-93J02 Black Fuel Gauge
SKU: 34300-93J02 Weight: 3.000000 Brand: Price: $ 173.44 |
Black Fuel Gauge | 1 | $ 173.44 | ||
| 45-2 | 34300-93J13 White Fuel Gauge
SKU: 34300-93J13 Weight: 3.000000 Brand: Price: $ 173.44 |
White Fuel Gauge | 1 | $ 173.44 | ||
| 46 | 34310-92E00 Fuel Gauge Lead (NLA)
SKU: 34310-92E00 Weight: 0.100000 Brand: Price: $ 41.14 |
Fuel Gauge Lead (NLA) | 1 | $ 41.14 | ||
| 47 | 34360-92E00 Adapter Harness (NLA)
SKU: 34360-92E00 Weight: 1.000000 Brand: Price: $ 31.27 |
Adapter Harness (NLA) | 1 | $ 31.27 | ||
| 44 | 09471-12028 Bulb (12v, 3.4w)
SKU: 09471-12028 Weight: 0.100000 Brand: Price: $ 1.99 |
Bulb (12v, 3.4w) | 1 | $ 1.99 | ||
| 48 | 09471-12103 Bulb (12v, 3.4w)
SKU: 09471-12103 Weight: 0.100000 Brand: Price: $ 3.90 |
Bulb (12v, 3.4w) | 1 | $ 3.90 | ||
| 49 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 5 | $ 1.31 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
