Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

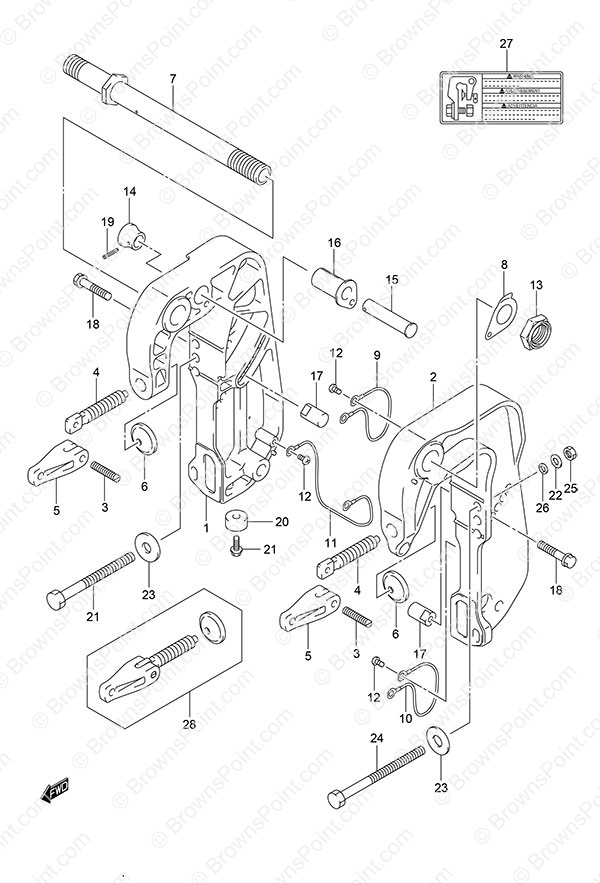

Fig. 111 - Clamp Bracket Tiller Handle w/Power Tilt Remote Control w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-89LA0-0EP Starboard Clamp Bracket
SKU: 41111-89LA0-0EP Weight: 5.000000 Brand: Price: $ 288.80 |
Starboard Clamp Bracket | 1 | $ 288.80 | ||
| 2 | 41121-89LA0-0EP Port Clamp Bracket
SKU: 41121-89LA0-0EP Weight: 5.000000 Brand: Price: $ 288.80 |
Port Clamp Bracket | 1 | $ 288.80 | ||
| 3 | 09205-06007 Spring Pin (6x25)
SKU: 09205-06007 Weight: 0.080000 Brand: Price: $ 2.28 |
Spring Pin (6x25) | 2 | $ 2.28 | ||
| 4 | 41211-95J00 Clamp Screw
SKU: 41211-95J00 Weight: 0.160000 Brand: Price: $ 23.68 |
Clamp Screw | 2 | $ 23.68 | ||
| 5 | 41212-91J00 Clamp Handle
SKU: 41212-91J00 Weight: 0.080000 Brand: Price: $ 15.22 |
Clamp Handle | 2 | $ 15.22 | ||
| 6 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 7 | 41130-94JA1 Clamp Bracket Shaft
SKU: 41130-94JA1 Weight: 1.000000 Brand: Price: $ 150.72 |
Clamp Bracket Shaft | 1 | $ 150.72 | ||
| 8 | 41135-93J11 Clamp Bracket Shaft Washer
SKU: 41135-93J11 Weight: 0.100000 Brand: Price: $ 4.86 |
Clamp Bracket Shaft Washer | 1 | $ 4.86 | ||
| 9 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Swivel to Clamp | |
| 10 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | PTT to Port Clamp | |
| 11 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | PTT to Stbd Clamp | |
| 12 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 5 | $ 1.96 | ||
| 13 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 14 | 41221-94JA0 Tilt Stopper Knob (NLA)
SKU: 41221-94JA0 Weight: 0.100000 Brand: Price: $ 29.17 |
Tilt Stopper Knob (NLA) | 1 | $ 29.17 | ||
| 15 | 41222-94JA0 Tilt Stopper Pin (NLA)
SKU: 41222-94JA0 Weight: 0.100000 Brand: Price: $ 23.66 |
Tilt Stopper Pin (NLA) | 1 | $ 23.66 | ||
| 16 | 41226-94JA0 Tilt Stopper Bushing (NLA)
SKU: 41226-94JA0 Weight: 0.100000 Brand: Price: $ 58.33 |
Tilt Stopper Bushing (NLA) | 1 | $ 58.33 | ||
| 17 | 45421-94JA0 Tilt Lock Pin
SKU: 45421-94JA0 Weight: 0.060000 Brand: Price: $ 38.75 |
Tilt Lock Pin | 2 | $ 38.75 | ||
| 18 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 2 | $ 4.11 | ||
| 19 | 09205-03004 Spring Pin (3x20)
SKU: 09205-03004 Weight: 0.060000 Brand: Price: $ 1.35 |
Spring Pin (3x20) | 1 | $ 1.35 | ||
| 20-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 20-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 21 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 22 | 29162-93J10 Lock Washer
SKU: 29162-93J10 Weight: 0.100000 Brand: Price: $ 1.57 |
Lock Washer | 2 | $ 1.57 | ||
| 23 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 2 | $ 2.68 | ||
| 24 | 09100-08311 Bolt (8x90)
SKU: 09100-08311 Weight: 0.250000 Brand: Price: $ 4.95 |
Bolt (8x90) | 2 | $ 4.95 | ||
| 25 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 26 | 09160-08170 Washer (8.5x16x2)
SKU: 09160-08170 Weight: 0.250000 Brand: Price: $ 2.26 |
Washer (8.5x16x2) | 2 | $ 2.26 | ||
| 27 | 69911-91J20 Clamp Bracket Mark (NLA)
SKU: 69911-91J20 Weight: 0.060000 Brand: Price: $ 5.01 |
Clamp Bracket Mark (NLA) | 1 | $ 5.01 | ||
| 28 | 41210-89LA0 Clamp Screw Assembly
SKU: 41210-89LA0 Weight: 0.250000 Brand: Price: $ 31.80 |
Clamp Screw Assembly | 1 | $ 31.80 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
