Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

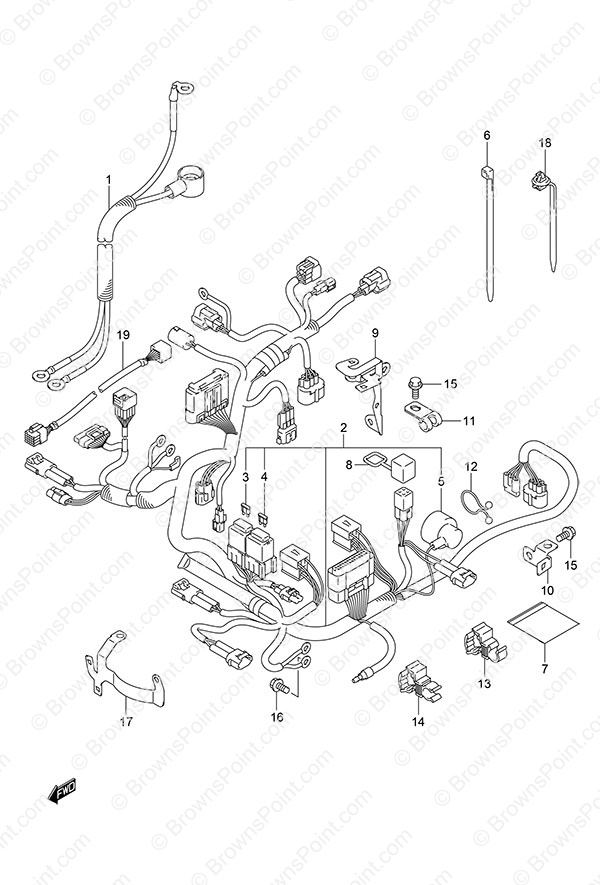

Fig. 102 - Harness Remote Control w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-89L10 Starter Cable
SKU: 33810-89L10 Weight: 2.000000 Brand: Price: $ 59.57 |
Starter Cable | 1 | $ 59.57 | ||
| 2 | 36610-89LA0 Wiring Harness Assembly
SKU: 36610-89LA0 Weight: 2.000000 Brand: Price: $ 448.20 |
Wiring Harness Assembly | 1 | $ 448.20 | ||
| 3 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | ||
| 4 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | ||
| 5 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 6 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 7 | 32916-89L00 Connector Cover
SKU: 32916-89L00 Weight: 0.250000 Brand: Price: $ 7.30 |
Connector Cover | 1 | $ 7.30 | ||
| 8 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | ||
| 9 | 36617-89L30 Harness Bracket
SKU: 36617-89L30 Weight: 0.250000 Brand: Price: $ 8.13 |
Harness Bracket | 1 | $ 8.13 | ||
| 10 | 36617-89L20 Harness Bracket
SKU: 36617-89L20 Weight: 0.250000 Brand: Price: $ 3.52 |
Harness Bracket | 1 | $ 3.52 | ||
| 11 | 09403-08417 Clamp
SKU: 09403-08417 Weight: 0.100000 Brand: Price: $ 2.48 |
Clamp | 1 | $ 2.48 | ||
| 12 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 13 | 09408-00296 Clamp
SKU: 09408-00296 Weight: 0.250000 Brand: Price: $ 2.79 |
Clamp | 1 | $ 2.79 | ||
| 14 | 09408-00297 Clamp (NLA)
SKU: 09408-00297 Weight: 0.250000 Brand: Price: $ 1.93 |
Clamp (NLA) | 1 | $ 1.93 | ||
| 15 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 16 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 17 | 36617-89L40 Harness Bracket
SKU: 36617-89L40 Weight: 0.250000 Brand: Price: $ 6.29 |
Harness Bracket | 1 | $ 6.29 | ||
| 18 | 36991-91J00 Clamp
SKU: 36991-91J00 Weight: 0.250000 Brand: Price: $ 1.37 |
Clamp | 1 | $ 1.37 | ||
| 19-1 | 36620-93J12 MAIN HARNESS EXT 6.5'
SKU: 36620-93J12 Weight: 0.000000 Brand: Price: $ 87.37 |
MAIN HARNESS EXT 6.5' | 1 | $ 87.37 | Opt: L:2000 | |
| 19-2 | 36620-93J42 HARNESS EXT 10'
SKU: 36620-93J42 Weight: 0.000000 Brand: Price: $ 120.18 |
HARNESS EXT 10' | 1 | $ 120.18 | Opt: L:3000 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
