Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

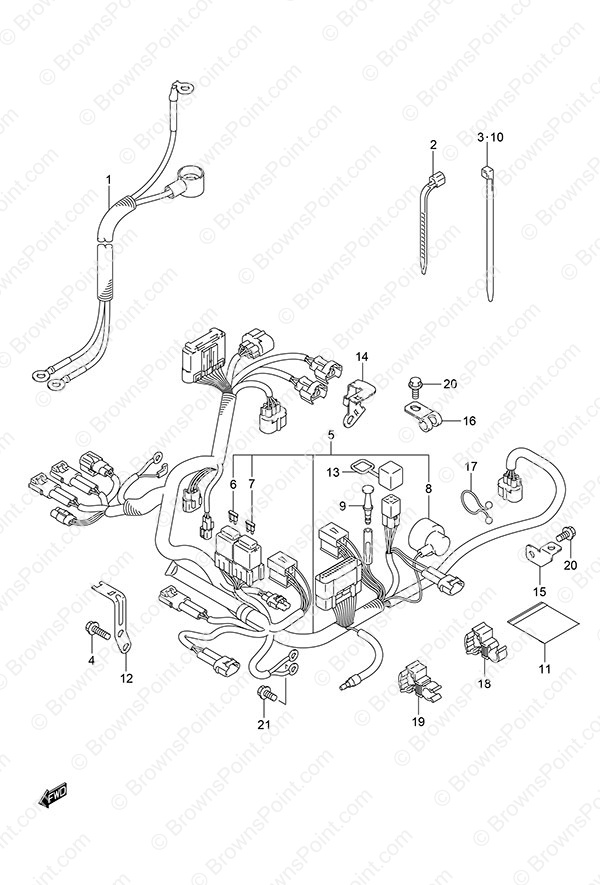

Fig. 100 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-89L10 Starter Cable
SKU: 33810-89L10 Weight: 2.000000 Brand: Price: $ 59.57 |
Starter Cable | 1 | $ 59.57 | Electric Starter | |
| 2 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | Electric Starter | |
| 3 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | Electric Starter | |
| 4 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 2 | $ 1.66 | Electric Starter | |
| 5-1 | 36610-89L60 Wiring Harness Assembly
SKU: 36610-89L60 Weight: 2.000000 Brand: Price: $ 292.09 |
Wiring Harness Assembly | 1 | $ 292.09 | w/Electric Starter | |
| 5-2 | 36610-89L70 Wiring Harness Assembly
SKU: 36610-89L70 Weight: 2.000000 Brand: Price: $ 216.27 |
Wiring Harness Assembly | 1 | $ 216.27 | Manual Starter | |
| 6 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | Electric Starter | |
| 7 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | Electric Starter | |
| 8 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 9 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 1 | $ 1.31 | ||
| 10 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 4 | $ 3.09 | ||
| 11 | 32916-89L00 Connector Cover
SKU: 32916-89L00 Weight: 0.250000 Brand: Price: $ 7.30 |
Connector Cover | 1 | $ 7.30 | Electric Starter | |
| 12 | 36617-89L10 Harness Bracket (NLA)
SKU: 36617-89L10 Weight: 0.250000 Brand: Price: $ 5.23 |
Harness Bracket (NLA) | 1 | $ 5.23 | Electric Starter | |
| 13 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | ||
| 14 | 36617-89L00 Harness Bracket (NLA)
SKU: 36617-89L00 Weight: 0.250000 Brand: Price: $ 4.78 |
Harness Bracket (NLA) | 1 | $ 4.78 | ||
| 15 | 36617-91J00 Switch Lead Bracket (NLA)
SKU: 36617-91J00 Weight: 0.250000 Brand: Price: $ 2.58 |
Switch Lead Bracket (NLA) | 1 | $ 2.58 | ||
| 16 | 09403-08417 Clamp
SKU: 09403-08417 Weight: 0.100000 Brand: Price: $ 2.48 |
Clamp | 1 | $ 2.48 | ||
| 17 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | ||
| 18 | 09408-00252 Clamp (NLA)
SKU: 09408-00252 Weight: 0.250000 Brand: Price: $ 2.16 |
Clamp (NLA) | 1 | $ 2.16 | ||
| 19 | 09408-00297 Clamp (NLA)
SKU: 09408-00297 Weight: 0.250000 Brand: Price: $ 1.93 |
Clamp (NLA) | 1 | $ 1.93 | ||
| 20 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 21 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
